How to Access System Using P2P via Mobile Application

Description

View your recorder and cameras on the go. With Dahua's mobile application IDMSS(IOS)/GDMSS(Android) allows you to add Dahua recorders and cameras to the mobile app using P2P.

Prerequisites

  • Smartphone (IOS device or Android)
  • IDMSS/GDMSS already downloaded in your mobile device.
  • P2P must be turned on from the recorder and connected to a network with internet access.


Video Instructions IDMSS/GDMSS version 4.50.000

Step by Step Instructions iDMSS/gDMSS version 4.50.000

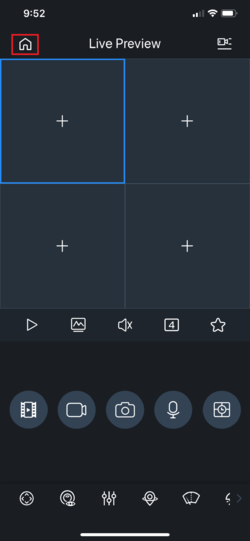

1. Open iDMSS/gDMSS on the phone, and select the home icon located on the top left corner.
1. Using P2P via iDMSS or gDMSS.JPG

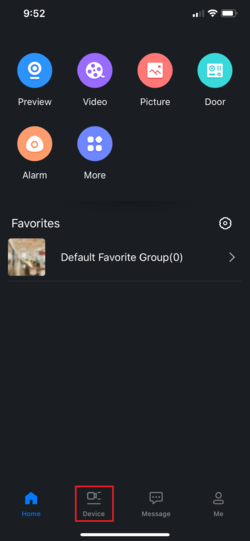

2. Select the "Device" button/icon on the bottom to add the recorder/camera.
2. Using P2P via iDMSS or gDMSS.JPG

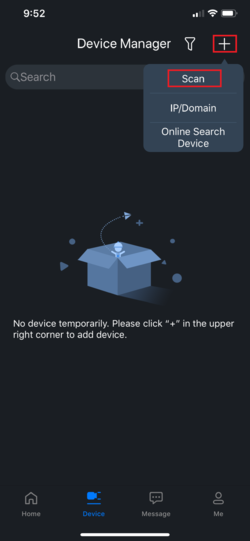

3. Select the "+" sign then select "Scan" to add the device.
3. Using P2P via iDMSS or gDMSS.JPG

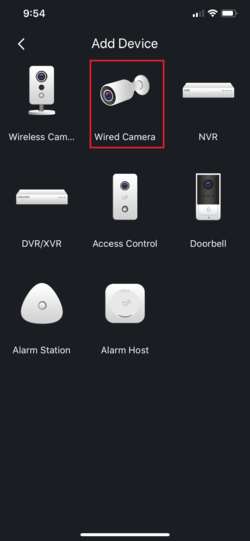

4. Select the "Wired Camera".
4. Using P2P via iDMSS or gDMSS.JPG

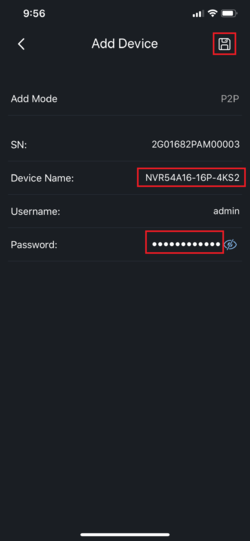

5. Input the device for easy identification. It's required to input the password for the added device then select the save icon located on the top right corner.
5. Using P2P via iDMSS or gDMSS.JPG

Step by Step Instructions IDMSS/GDMSS version 4.20.000

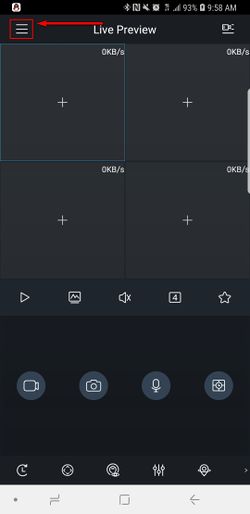

1. Select the Menu Icon

GDMSS PLUS 4.20-1.jpg

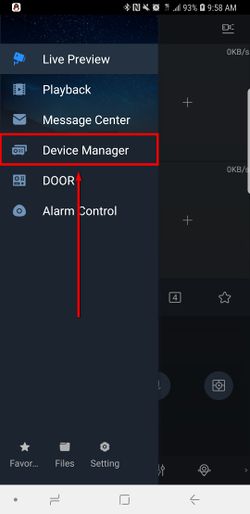

2. Select "Device Manager"

GDMSS PLUS 4.20-2.jpg

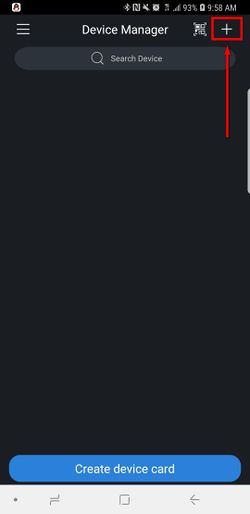

3. Select the Add Icon

GDMSS PLUS 4.20-3.jpg

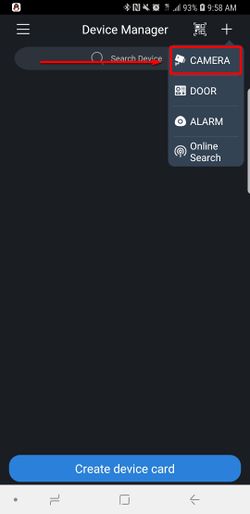

4. Select "Camera"

GDMSS PLUS 4.20-4.jpg

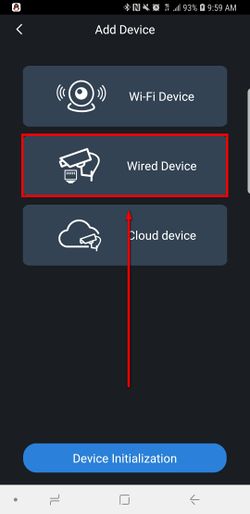

5. Select "Wired Device"

GDMSS PLUS 4.20-5.jpg

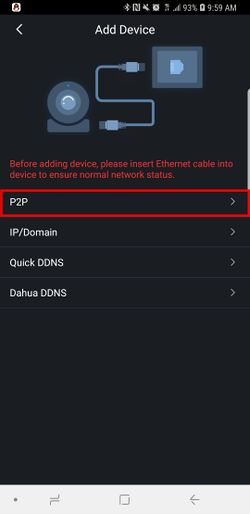

6. Select "P2P"

GDMSS PLUS 4.20-6.jpg

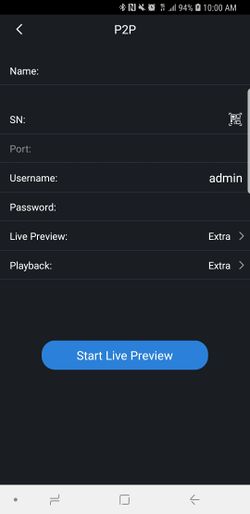

7. Input Info and select "Start Live Preview"

GDMSS PLUS 4.20-7.jpg

  • Name: (nickname)
  • SN (serial number, you can either scan the QRcode or type the SN manually)
  • Port (will auto populate after entering the SN)
  • Username (Username of the recorder's account)
  • Password (Password for that Username)
  • Live Preview (Extra=Substream, MAIN= Mainstream)
  • Playback (Extra=Substream, MAIN= Mainstream)

Video Instructions IDMSS/GDMSS version 3.50.000

Step by Step Instructions IDMSS/GDMSS version 3.50.000

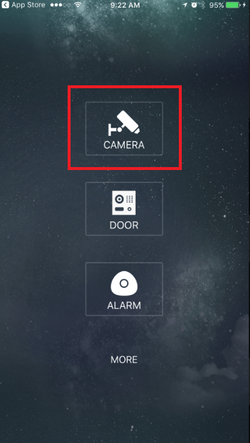

1. From the home screen of the mobile application select "Camera".

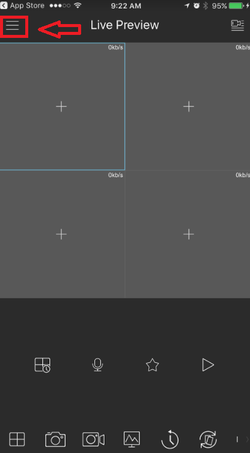

2. Select the menu button.

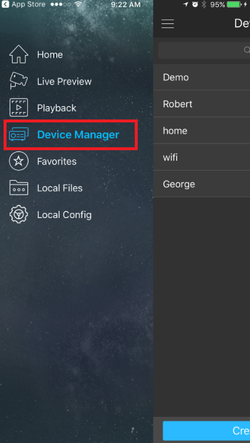

3. Select Device Manager.

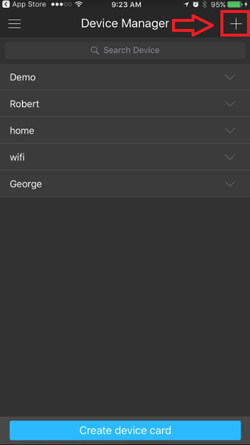

4. Select add button to add device.

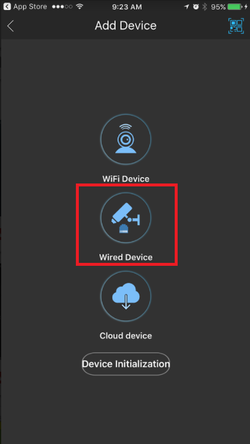

5. Select Wired Device.

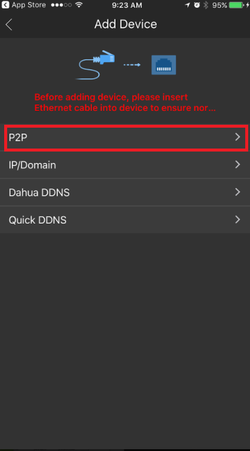

6. Select P2P.

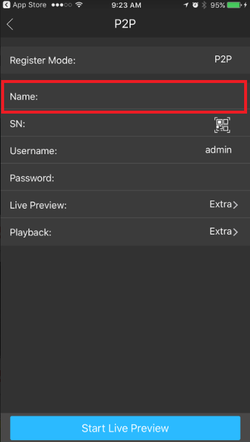

7. Name your device -> tap the QR code to bring up QR code scanner.

Newidmss7.png Newidmss8.png

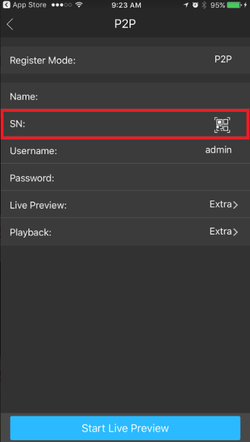

  • With your mobile device in hand, go to your local recorder, navigate to the P2P/Easy4IP settings and scan QR code to the right hand side. You will also see the SN (Serial Number) of the recorder underneath the QR code, you may use that to manually type in the SN into the SN field of the IDMSS/GDMSS mobile app. Note: you must have P2P/Easy4IP "enabled" from the local recorder with a status that either shows "online" or "connect success".

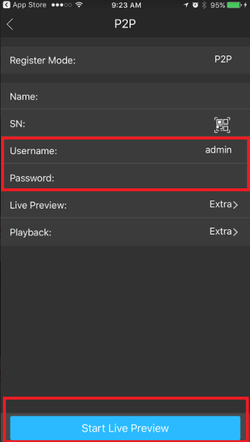

8. Input the username -> password -> and select live preview. By selecting "Start live preview" device will be automatically saved into the application.


IDMSS/GDMSS Version 3.40.003

Video Instructions Version 3.40.003

Step by Step Instructions Version 3.40.003

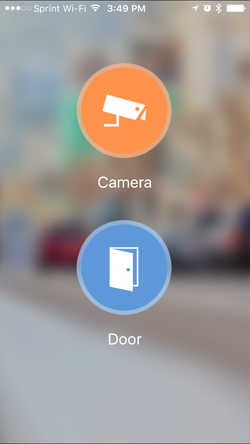

1. Click, "Camera"

20151019 224945000 iOS.png

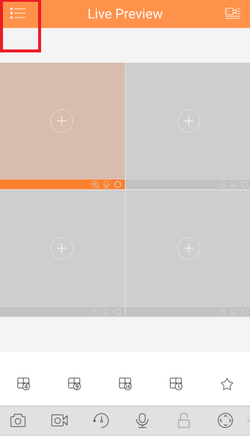

2. Select the Menu Icon

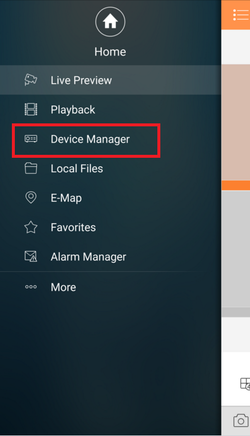

3. Select "Device Manager"

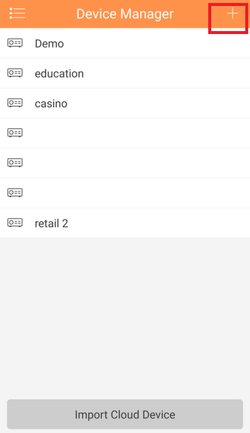

4. Select the Add Icon


5. Select "P2P"

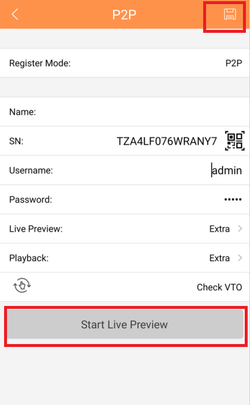

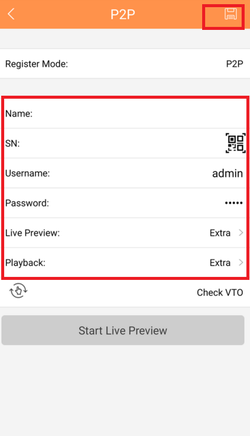

6. Choose a name for the device → Scan in QR code for SN number which you can access from the physical recorder under the main menu → Setting → Network → P2P. You may input SN number manually which can also be found under the recorder. → Enter Username and Password. For best results , leave Live Preview and Playback on the Extra Stream.


7. Select the Disk Icon to save → Select Live Preview, At which time the app will connect to all cameras.
