Difference between revisions of "Troubleshoot/NVR/No HDD"
(→Solutions) |
|||
Line 1: | Line 1: | ||
− | + | ==System can not detect hard disk.== | |
− | There are following possibilities: | + | |
+ | ====There are following possibilities:==== | ||
* HDD is broken. | * HDD is broken. | ||
Line 9: | Line 10: | ||
* Insufficient power. | * Insufficient power. | ||
− | ===Solutions=== | + | ====Solutions==== |
* Reboot Device. | * Reboot Device. | ||
* Disconnect the hard drive from the device, then boot it up with the HDD disconnected. If there are no errors when booting without a hard drive, then the hard drive is most likely the problem and needs to be replaced. | * Disconnect the hard drive from the device, then boot it up with the HDD disconnected. If there are no errors when booting without a hard drive, then the hard drive is most likely the problem and needs to be replaced. |
Latest revision as of 19:04, 17 August 2016
System can not detect hard disk.
There are following possibilities:
- HDD is broken.
- HDD ribbon is damaged.
- HDD cable connection is loose.
- Main board SATA port is broken.
- HDD is not compatible.
- Insufficient power.
Solutions
- Reboot Device.
- Disconnect the hard drive from the device, then boot it up with the HDD disconnected. If there are no errors when booting without a hard drive, then the hard drive is most likely the problem and needs to be replaced.
- Format HDD.
- If you cannot format HDD from device, format HDD from a PC.
- Check HDD compatibility.
- Check HDD cables and if connections are secure.
- If SATA port is broken try another SATA port.
- Reset to device to factory settings.
- Make sure you have the correct power cable for the Device.
- Replace HDD.
- Open Casing and check jumper settings

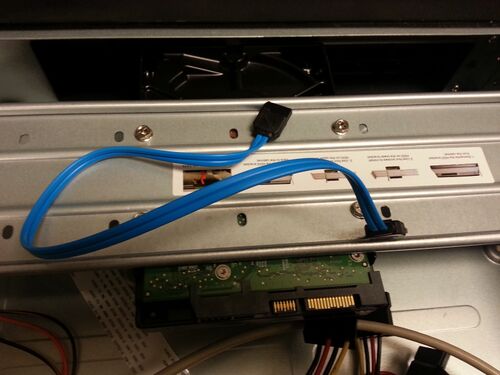

SATA Cable
SATA into Harddrive
SATA from motherboard to Harddrive
