==DH-SD6CA230IN-HC-S2==

==DH-SD6CA230IN-HC-S2==
 +
[[file:PDF_banner.jpg|link=https://us.dahuasecurity.com/wp-content/uploads/2022/12/Datasheet_DH-SD6CA230IN-HC-S2_Final.pdf|600px|float]]
 +
 +
{| class="infobox" style="height: 539px; width=288;border-collapse: collapse; border: solid 1px lightgrey;"
 +
|-
 +
 +
[[file:SD6CA230INHC.jpg|right|288px]]

−
[[file:PDF_banner.jpg|float|link=File:Datassheet_2MP_HDCVI_PTZ_DH-SD6CA230IN-HC-S2_v001_002.pdf|600px]]


−
{| class="infobox" style="height:539px;width=288;border-collapse: collapse;border-left:solid 1px lightgrey;border-right:solid 1px lightgrey;border-top:solid 1px lightgrey;border-bottom:solid 1px lightgrey;"

−
|-

−
|+'''DH-SD6CA230IN-HC-S2'''

−
|+[[file:SD6CA230INHC.jpg|288px]]

−
|-

−
| style="border-collapse: collapse; border: solid 1px lightgrey;"|Series:

−
| style="border-collapse: collapse; border: solid 1px lightgrey;"|Pro

−
|-

−
| style="border-collapse: collapse; border: solid 1px lightgrey;"|Image Sensor:

−
| style="border-collapse: collapse; border: solid 1px lightgrey;"|1/2.8” 2MP Exmor R CMOS

−
|-

−
| style="border-collapse: collapse; border: solid 1px lightgrey;"|Lens:

−
| style="border-collapse: collapse; border: solid 1px lightgrey;"|4.5~135mm (30x Optical zoom)

−
|-

−
| style="border-collapse: collapse; border: solid 1px lightgrey;"|Resolution:

−
| style="border-collapse: collapse; border: solid 1px lightgrey;"|1080P

−
|-

−
| style="border-collapse: collapse; border: solid 1px lightgrey;"|H Field of View:

−
| style="border-collapse: collapse; border: solid 1px lightgrey;"|67.8° ~ 2.7°

−
|-

−
| style="border-collapse: collapse; border: solid 1px lightgrey;"|Day/Night:

−
| style="border-collapse: collapse; border: solid 1px lightgrey;"|ICR

−
|-

−
| style="border-collapse: collapse; border: solid 1px lightgrey;"|Min. Illumination:

−
| style="border-collapse: collapse; border: solid 1px lightgrey;"|0.005Lux/F1.6(Color), 0Lux/F1.6(IR on)

−
|-

−
| style="border-collapse: collapse; border: solid 1px lightgrey;"|Max. IR Range:

−
| style="border-collapse: collapse; border: solid 1px lightgrey;"|100m

−
|-

−
| style="border-collapse: collapse; border: solid 1px lightgrey;"|OSD Menu:

−
| style="border-collapse: collapse; border: solid 1px lightgrey;"|Support

−
|-

−
| style="border-collapse: collapse; border: solid 1px lightgrey;"|WDR:

−
| style="border-collapse: collapse; border: solid 1px lightgrey;"|120dB True WDR

−
|-

−
| style="border-collapse: collapse; border: solid 1px lightgrey;"|Noise Reduction:

−
| style="border-collapse: collapse; border: solid 1px lightgrey;"|2D/3D

−
|-

−
| style="border-collapse: collapse; border: solid 1px lightgrey;"|FPS:

−
| style="border-collapse: collapse; border: solid 1px lightgrey;"|30fps@1080P 30/60fps@720P

−
|-

−
| style="border-collapse: collapse; border: solid 1px lightgrey;"|Video Output:

−
| style="border-collapse: collapse; border: solid 1px lightgrey;"|HD/SD Switchable

−
|-

−
| style="border-collapse: collapse; border: solid 1px lightgrey;"|Pan/Tilt/Zoom:

−
| style="border-collapse: collapse; border: solid 1px lightgrey;"|300 Presets, Pan: 0° ~ 360° endless;<br />Tilt: -15° ~ 90°,<br / >Auto flip 180°

−
|-

−
| style="border-collapse: collapse; border: solid 1px lightgrey;"|Preset Speed:

−
| style="border-collapse: collapse; border: solid 1px lightgrey;"|Pan: 240° /s; Tilt: 200° /s

−
|-

−
| style="border-collapse: collapse; border: solid 1px lightgrey;"|Audio In:

−
| style="border-collapse: collapse; border: solid 1px lightgrey;"|1

−
|-

−
| style="border-collapse: collapse; border: solid 1px lightgrey;"|Audio Out:

−
| style="border-collapse: collapse; border: solid 1px lightgrey;"|-

−
|-

−
| style="border-collapse: collapse; border: solid 1px lightgrey;"|Built In Microphone:

−
| style="border-collapse: collapse; border: solid 1px lightgrey;"|-

−
|-

−
| style="border-collapse: collapse; border: solid 1px lightgrey;"|Memory Slot:

−
| style="border-collapse: collapse; border: solid 1px lightgrey;"|-

−
|-

−
| style="border-collapse: collapse; border: solid 1px lightgrey;"|Alarm In:

−
| style="border-collapse: collapse; border: solid 1px lightgrey;"|2

−
|-

−
| style="border-collapse: collapse; border: solid 1px lightgrey;"|Alarm Out:

−
| style="border-collapse: collapse; border: solid 1px lightgrey;"|1

−
|-

−
| style="border-collapse: collapse; border: solid 1px lightgrey;"|IP Rating:

−
| style="border-collapse: collapse; border: solid 1px lightgrey;"|66

−
|-

−
| style="border-collapse: collapse; border: solid 1px lightgrey;"|IK Rating:

−
| style="border-collapse: collapse; border: solid 1px lightgrey;"|-

−
|-

−
| style="border-collapse: collapse; border: solid 1px lightgrey;"|Working Temp:

−
| style="border-collapse: collapse; border: solid 1px lightgrey;"|-40°C~+60°C

−
|-

−
| style="border-collapse: collapse; border: solid 1px lightgrey;"|Power:

−
| style="border-collapse: collapse; border: solid 1px lightgrey;"|AC24V

−
|-

−
| style="border-collapse: collapse; border: solid 1px lightgrey;"|Firmware:

−
| style="border-collapse: collapse; border: solid 1px lightgrey;"|URL

−
|}


−
===Features===
+
===Body Style with Compatible Accessories===
−
* Max 60fps@720p and 30fps@1080p
+
<gallery>
−
* Starlight Technology for Dark Environments
+
File:SD6C.jpg|link=Camera_Shape/SD6C|[[Camera_Shape/SD6C|SD6C]]
−
* Powerful 30x Optical Zoom
+
</gallery>
−
* True WDR

−
* Built-in 2/1 Alarm in/out

−
* HD and SD Switchable

−
* IR Distance Up to 150m (492ft)

−
* Outdoor Rated IP66

−
* Multi-language OSD



===CAD Images===

===CAD Images===
Line 109: Line 25:

</gallery>

</gallery>

−
===Specifications===
+

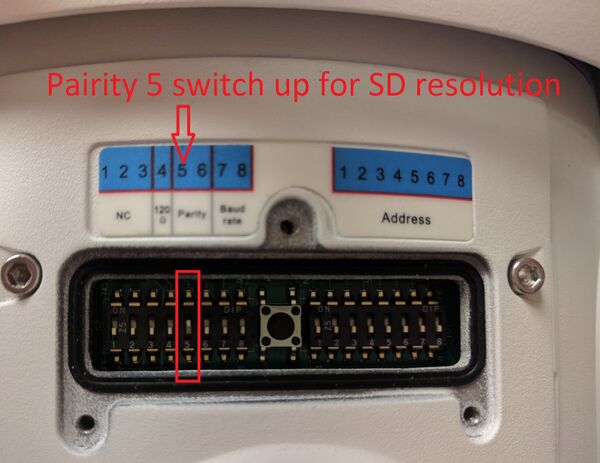

===SD Resolution Configuration===
−
{| class="wikitable" border="0" width="305" cellspacing="0" cellpadding="0"
+
[[File:sd6ca230inhcs2_SD_setting.jpg|600x600px]]
−
|-
+

−
| class="xl70" width="100" height="15"|Camera

−
| class="xl71" width="205"|

−
|-

−
| class="xl73" width="100" height="15"|Image Sensor

−
| class="xl78" width="205"|1/2.8" Exmor CMOS

−
|-

−
| class="xl73" width="100" height="15"|Effective Pixels

−
| class="xl78" width="205"|1920 H x 1080 V

−
|-

−
| class="xl73" width="100" height="15"|Scanning System

−
| class="xl78" width="205"|Progressive

−
|-

−
| class="xl73" width="100" height="15"|Electronic Shutter Speed

−
| class="xl78" width="205"|1/1 ~ 1/30,000s

−
|-

−
| class="xl73" rowspan="3" width="100" height="45"|Minimum Illumination

−
| class="xl78" width="205"|Color: 0.005Lux@F1.6;

−
|-

−
| class="xl78" width="205" height="15"|B/W: 0.0005Lux@F1.6;

−
|-

−
| class="xl78" width="205" height="15"|0Lux (IR on)

−
|-

−
| class="xl73" width="100" height="15"|S/N Ratio

−
| class="xl78" width="205"|More than 50dB

−
|-

−
| class="xl73" width="100" height="15"|IR Distance

−
| class="xl78" width="205"|150m (492ft)

−
|-

−
| class="xl73" width="100" height="15"|IR On/Off Control

−
| class="xl78" width="205"|Auto / Manual

−
|-

−
| class="xl73" width="100" height="15"|IR LEDs

−
| class="xl78" width="205"|6

−
|-

−
| class="xl67" width="100" height="15"|Lens

−
| class="xl74" width="205"|

−
|-

−
| class="xl76" width="100" height="15"|Lens Type

−
| class="xl78" width="205"|Motorized / Auto Iris

−
|-

−
| class="xl76" width="100" height="15"|Mount Type

−
| class="xl78" width="205"|Board-in

−
|-

−
| class="xl76" width="100" height="15"|Focal Length

−
| class="xl78" width="205"|4.5mm ~ 135mm (30x Optical Zoom)

−
|-

−
| class="xl76" width="100" height="15"|Max Aperture

−
| class="xl78" width="205"|F1.6 ~ F5.0

−
|-

−
| class="xl76" width="100" height="15"|Angle of View

−
| class="xl78" width="205"|H: 67.8° ~ 2.7°

−
|-

−
| class="xl76" width="100" height="15"|Focus Control

−
| class="xl78" width="205"|Auto / Manual

−
|-

−
| class="xl76" width="100" height="15"|Close Focus Distance

−
| class="xl78" width="205"|100mm ~ 1000mm

−
|-

−
| class="xl67" width="100" height="15"|PTZ

−
| class="xl74" width="205"|

−
|-

−
| class="xl76" width="100" height="15"|Pan/Tilt Range

−
| class="xl77" width="205"|Pan: 0° ~ 360° endless; Tilt: -15° ~ 90°, auto flip 180°

−
|-

−
| class="xl76" width="100" height="15"|Manual Control Speed

−
| class="xl77" width="205"|Pan: 0.1° ~160° /s; Tilt: 0.1° ~120° /s

−
|-

−
| class="xl76" width="100" height="15"|Preset Speed

−
| class="xl77" width="205"|Pan: 240° /s; Tilt: 200° /s

−
|-

−
| class="xl76" width="100" height="15"|Presets

−
| class="xl77" width="205"|300

−
|-

−
| class="xl76" width="100" height="15"|PTZ Mode

−
| class="xl77" width="205"|5 Pattern, 8 Tour, Auto Pan, Auto Scan

−
|-

−
| class="xl76" width="100" height="15"|Speed Setup

−
| class="xl77" width="205"|Human-oriented focal length/ speed adaptation

−
|-

−
| class="xl76" width="100" height="22"|Power Up Action

−
| class="xl77" width="205"|Auto restore to previous PTZ and lens status after power failure

−
|-

−
| class="xl76" width="100" height="22"|Idle Motion

−
| class="xl77" width="205"|Activate Preset/ Scan/ Tour/ Pattern if there is no command in the specified period

−
|-

−
| class="xl76" width="100" height="22"|Time Task

−
| class="xl77" width="205"|Auto activation of Preset/ Pan/ Scan/ Tour/ Pattern by preset-time

−
|-

−
| class="xl76" width="100" height="15"|Protocol

−
| class="xl77" width="205"|DH-SD, Pelco-P/D (Auto Recognition)

−
|-

−
| class="xl67" width="100" height="15"|Video

−
| class="xl65" width="205"|

−
|-

−
| class="xl76" width="100" height="15"|Resolution

−
| class="xl78" width="205"|30fps@1080p, 30/60fps@720p

−
|-

−
| class="xl76" width="100" height="22"|Video Output

−
| class="xl77" width="205"|1-channel BNC HDCVI High Definition Video Output / CVBS Standard Definition Video Output (Switchable)

−
|-

−
| class="xl76" width="100" height="15"|Day/Night

−
| class="xl78" width="205"|Auto (ICR) / Color / B/W

−
|-

−
| class="xl76" width="100" height="15"|BLC Mode

−
| class="xl78" width="205"|BLC / HLC / WDR (120dB)

−
|-

−
| class="xl73" width="100" height="15"|White Balance

−
| class="xl78" width="205"|Auto, ATW, Indoor, Outdoor, Manual

−
|-

−
| class="xl76" width="100" height="15"|Gain Control

−
| class="xl78" width="205"|Auto / Manual

−
|-

−
| class="xl76" width="100" height="15"|Noise Reduction

−
| class="xl78" width="205"|Ultra DNR (2D/3D)

−
|-

−
| class="xl76" width="100" height="15"|Digital Zoom

−
| class="xl78" width="205"|16x

−
|-

−
| class="xl76" width="100" height="15"|Flip

−
| class="xl78" width="205"|0°/180°

−
|-

−
| class="xl73" width="100" height="15"|Privacy Masking

−
| class="xl78" width="205"|Up to 24 Areas

−
|-

−
| class="xl67" width="100" height="15"|Interface

−
| class="xl64" width="205"|

−
|-

−
| class="xl76" width="100" height="15"|Audio Interface

−
| class="xl77" width="205"|1 Input

−
|-

−
| class="xl76" width="100" height="15"|Rs485

−
| class="xl77" width="205"|1

−
|-

−
| class="xl76" width="100" height="15"|Alarm

−
| class="xl77" width="205"|2/1 In/Out

−
|-

−
| class="xl72" height="15"|Certifications

−
| class="xl63"|

−
|-

−
| class="xl76" rowspan="2" width="100" height="30"|Certifications

−
| class="xl66" width="205"|FCC (SEFD1602099-A)

−
|-

−
| class="xl66" width="205" height="15"|UL (E234884-A55-UL)

−
|-

−
| class="xl67" width="100" height="15"|Electrical

−
| class="xl75" width="205"|

−
|-

−
| class="xl76" width="100" height="15"|Power Supply

−
| class="xl77" width="205"|AC24V/3A (±10%)

−
|-

−
| class="xl76" width="100" height="15"|Power Consumption

−
| class="xl77" width="205"|Max. 10.5W, 26W (IR on, Heater on)

−
|-

−
| class="xl67" width="100" height="15"|Environmental

−
| class="xl75" width="205"|

−
|-

−
| class="xl76" rowspan="2" width="100" height="30"|Operating Conditions

−
| class="xl77" width="205"|-40°C ~ +60°C (-40°F ~ +140°F) / Less than 90% RH

−
|-

−
| class="xl77" width="205" height="15"|*Start up should be done at above -35°C (-31°F)

−
|-

−
| class="xl76" width="100" height="15"|Storage Conditions

−
| class="xl77" width="205"|-30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH

−
|-

−
| class="xl76" width="100" height="15"|Ingress Protection

−
| class="xl77" width="205"|IP66

−
|-

−
| class="xl67" width="100" height="15"|Construction

−
| class="xl75" width="205"|

−
|-

−
| class="xl76" width="100" height="15"|Casing

−
| class="xl77" width="205"|Metal

−
|-

−
| class="xl76" width="100" height="15"|Dimensions

−
| class="xl77" width="205"|Φ204.7mm x 359.9mm (Φ8.06" x 14.17")

−
|-

−
| class="xl76" width="100" height="15"|Net Weight

−
| class="xl77" width="205"|4.8 kg (10.58 lbs)

−
|-

−
| class="xl68" width="100" height="15"|Gross Weight

−
| class="xl69" width="205"|8.3kg (18.30lbs)

−
|}

−
{| class="ke-zeroborder" border="0" width="305" cellspacing="0" cellpadding="0"

−
|-

−
| class="xl70" width="100" height="15"|Camera

−
| class="xl71" width="205"|

−
|-

−
| class="xl73" width="100" height="15"|Image Sensor

−
| class="xl78" width="205"|1/2.8" Exmor CMOS

−
|-

−
| class="xl73" width="100" height="15"|Effective Pixels

−
| class="xl78" width="205"|1920 H x 1080 V

−
|-

−
| class="xl73" width="100" height="15"|Scanning System

−
| class="xl78" width="205"|Progressive

−
|-

−
| class="xl73" width="100" height="15"|Electronic Shutter Speed

−
| class="xl78" width="205"|1/1 ~ 1/30,000s

−
|-

−
| class="xl73" rowspan="3" width="100" height="45"|Minimum Illumination

−
| class="xl78" width="205"|Color: 0.005Lux@F1.6;

−
|-

−
| class="xl78" width="205" height="15"|B/W: 0.0005Lux@F1.6;

−
|-

−
| class="xl78" width="205" height="15"|0Lux (IR on)

−
|-

−
| class="xl73" width="100" height="15"|S/N Ratio

−
| class="xl78" width="205"|More than 50dB

−
|-

−
| class="xl73" width="100" height="15"|IR Distance

−
| class="xl78" width="205"|150m (492ft)

−
|-

−
| class="xl73" width="100" height="15"|IR On/Off Control

−
| class="xl78" width="205"|Auto / Manual

−
|-

−
| class="xl73" width="100" height="15"|IR LEDs

−
| class="xl78" width="205"|6

−
|-

−
| class="xl67" width="100" height="15"|Lens

−
| class="xl74" width="205"|

−
|-

−
| class="xl76" width="100" height="15"|Lens Type

−
| class="xl78" width="205"|Motorized / Auto Iris

−
|-

−
| class="xl76" width="100" height="15"|Mount Type

−
| class="xl78" width="205"|Board-in

−
|-

−
| class="xl76" width="100" height="15"|Focal Length

−
| class="xl78" width="205"|4.5mm ~ 135mm (30x Optical Zoom)

−
|-

−
| class="xl76" width="100" height="15"|Max Aperture

−
| class="xl78" width="205"|F1.6 ~ F5.0

−
|-

−
| class="xl76" width="100" height="15"|Angle of View

−
| class="xl78" width="205"|H: 67.8° ~ 2.7°

−
|-

−
| class="xl76" width="100" height="15"|Focus Control

−
| class="xl78" width="205"|Auto / Manual

−
|-

−
| class="xl76" width="100" height="15"|Close Focus Distance

−
| class="xl78" width="205"|100mm ~ 1000mm

−
|-

−
| class="xl67" width="100" height="15"|PTZ

−
| class="xl74" width="205"|

−
|-

−
| class="xl76" width="100" height="15"|Pan/Tilt Range

−
| class="xl77" width="205"|Pan: 0° ~ 360° endless; Tilt: -15° ~ 90°, auto flip 180°

−
|-

−
| class="xl76" width="100" height="15"|Manual Control Speed

−
| class="xl77" width="205"|Pan: 0.1° ~160° /s; Tilt: 0.1° ~120° /s

−
|-

−
| class="xl76" width="100" height="15"|Preset Speed

−
| class="xl77" width="205"|Pan: 240° /s; Tilt: 200° /s

−
|-

−
| class="xl76" width="100" height="15"|Presets

−
| class="xl77" width="205"|300

−
|-

−
| class="xl76" width="100" height="15"|PTZ Mode

−
| class="xl77" width="205"|5 Pattern, 8 Tour, Auto Pan, Auto Scan

−
|-

−
| class="xl76" width="100" height="15"|Speed Setup

−
| class="xl77" width="205"|Human-oriented focal length/ speed adaptation

−
|-

−
| class="xl76" width="100" height="22"|Power Up Action

−
| class="xl77" width="205"|Auto restore to previous PTZ and lens status after power failure

−
|-

−
| class="xl76" width="100" height="22"|Idle Motion

−
| class="xl77" width="205"|Activate Preset/ Scan/ Tour/ Pattern if there is no command in the specified period

−
|-

−
| class="xl76" width="100" height="22"|Time Task

−
| class="xl77" width="205"|Auto activation of Preset/ Pan/ Scan/ Tour/ Pattern by preset-time

−
|-

−
| class="xl76" width="100" height="15"|Protocol

−
| class="xl77" width="205"|DH-SD, Pelco-P/D (Auto Recognition)

−
|-

−
| class="xl67" width="100" height="15"|Video

−
| class="xl65" width="205"|

−
|-

−
| class="xl76" width="100" height="15"|Resolution

−
| class="xl78" width="205"|30fps@1080p, 30/60fps@720p

−
|-

−
| class="xl76" width="100" height="22"|Video Output

−
| class="xl77" width="205"|1-channel BNC HDCVI High Definition Video Output / CVBS Standard Definition Video Output (Switchable)

−
|-

−
| class="xl76" width="100" height="15"|Day/Night

−
| class="xl78" width="205"|Auto (ICR) / Color / B/W

−
|-

−
| class="xl76" width="100" height="15"|BLC Mode

−
| class="xl78" width="205"|BLC / HLC / WDR (120dB)

−
|-

−
| class="xl73" width="100" height="15"|White Balance

−
| class="xl78" width="205"|Auto, ATW, Indoor, Outdoor, Manual

−
|-

−
| class="xl76" width="100" height="15"|Gain Control

−
| class="xl78" width="205"|Auto / Manual

−
|-

−
| class="xl76" width="100" height="15"|Noise Reduction

−
| class="xl78" width="205"|Ultra DNR (2D/3D)

−
|-

−
| class="xl76" width="100" height="15"|Digital Zoom

−
| class="xl78" width="205"|16x

−
|-

−
| class="xl76" width="100" height="15"|Flip

−
| class="xl78" width="205"|0°/180°

−
|-

−
| class="xl73" width="100" height="15"|Privacy Masking

−
| class="xl78" width="205"|Up to 24 Areas

−
|-

−
| class="xl67" width="100" height="15"|Interface

−
| class="xl64" width="205"|

−
|-

−
| class="xl76" width="100" height="15"|Audio Interface

−
| class="xl77" width="205"|1 Input

−
|-

−
| class="xl76" width="100" height="15"|Rs485

−
| class="xl77" width="205"|1

−
|-

−
| class="xl76" width="100" height="15"|Alarm

−
| class="xl77" width="205"|2/1 In/Out

−
|-

−
| class="xl72" height="15"|Certifications

−
| class="xl63"|

−
|-

−
| class="xl76" rowspan="2" width="100" height="30"|Certifications

−
| class="xl66" width="205"|FCC (SEFD1602099-A)

−
|-

−
| class="xl66" width="205" height="15"|UL (E234884-A55-UL)

−
|-

−
| class="xl67" width="100" height="15"|Electrical

−
| class="xl75" width="205"|

−
|-

−
| class="xl76" width="100" height="15"|Power Supply

−
| class="xl77" width="205"|AC24V/3A (±10%)

−
|-

−
| class="xl76" width="100" height="15"|Power Consumption

−
| class="xl77" width="205"|Max. 10.5W, 26W (IR on, Heater on)

−
|-

−
| class="xl67" width="100" height="15"|Environmental

−
| class="xl75" width="205"|

−
|-

−
| class="xl76" rowspan="2" width="100" height="30"|Operating Conditions

−
| class="xl77" width="205"|-40°C ~ +60°C (-40°F ~ +140°F) / Less than 90% RH

−
|-

−
| class="xl77" width="205" height="15"|*Start up should be done at above -35°C (-31°F)

−
|-

−
| class="xl76" width="100" height="15"|Storage Conditions

−
| class="xl77" width="205"|-30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH

−
|-

−
| class="xl76" width="100" height="15"|Ingress Protection

−
| class="xl77" width="205"|IP66

−
|-

−
| class="xl67" width="100" height="15"|Construction

−
| class="xl75" width="205"|

−
|-

−
| class="xl76" width="100" height="15"|Casing

−
| class="xl77" width="205"|Metal

−
|-

−
| class="xl76" width="100" height="15"|Dimensions

−
| class="xl77" width="205"|Φ204.7mm x 359.9mm (Φ8.06" x 14.17")

−
|-

−
| class="xl76" width="100" height="15"|Net Weight

−
| class="xl77" width="205"|4.8 kg (10.58 lbs)

−
|-

−
| class="xl68" width="100" height="15"|Gross Weight

−
| class="xl69" width="205"|8.3kg (18.30 lbs)

−
|}




Latest revision as of 18:19, 8 December 2022

DH-SD6CA230IN-HC-S2

float



Body Style with Compatible Accessories

CAD Images

  • 6C copy.jpg

FOV

  • Camera Height: 10m
    Focal Length: 4.5mm
    Target Horizontal Dist: 80.2m

  • Camera Height: 10m
    Focal Length: 135mm
    Target Horizontal Dist: 2424.5m

SD Resolution Configuration

Sd6ca230inhcs2 SD setting.jpg

Retrieved from "https://DahuaWiki.com/index.php?title=USA/HDCVI/Camera/PTZ/Pro/DH_SD6CA230IN_HC_S2&oldid=79630"
