| | =A22CL62= | | =A22CL62= |
| | + | __NOTOC__ |
| | + | {| class="wikitable" style="width: 100%;" |
| | + | |+A22CL62 |
| | + | |- |
| | + | !|Specifications |
| | + | !|Manual |
| | + | |- |
| | + | |<!--{{Template:A22CL62_Specification_Template}}--> |
| | + | |{{Template:CVI-Dome-Manual}} |
| | + | |- |
| | + | |} |
| | | | |
| − | ==A22CL62==
| |

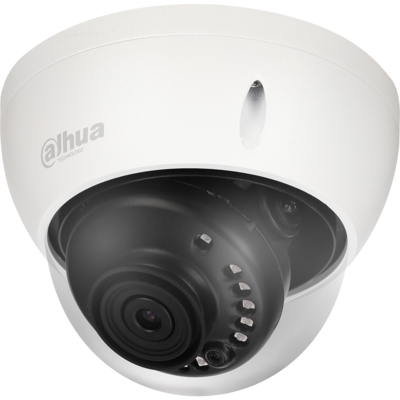

| | [[File:A22CL62.png|right|400px]] | | [[File:A22CL62.png|right|400px]] |
| | | | |
| − | [[file:PDF_banner.jpg|float|link=File:Datasheet 2MP HDCVI Starlight Fixed Dome A22CL62 v001 001.pdf|600px]]
| |
| − |
| |
| − | ===Features===
| |
| − | * 1/2.8-in. 2 MP Progressive-scan CMOS Sensor
| |
| − | * 2 MP (1920 x 1080) at 30 fps Maximum Resolution
| |
| − | * 2.8 mm Fixed Lens
| |
| − | * Starlight Technology for Low-light Applications
| |
| − | * True Wide Dynamic Range (120 dB) and 2D/3D Noise Reduction
| |
| − | * Supports Multiple Video Formats: HDCVI, CVBS, AHD and TVI
| |
| − | * HD or SD Output, Switchable
| |
| − | * Maximum IR Length 30 m (98 ft), Smart IR
| |
| − | * IP67 Ingress Protection and IK10 Vandal Resistance
| |
| − | * Five-year Warranty (for products sold through an authorized Dahua dealer)
| |
| − |
| |
| − | ===Wires===
| |
| − | <gallery>
| |
| − | File:A22CL62 Produt Wire.png
| |
| − | File:A22CL62 Wire Detail.png
| |
| − | </gallery>
| |
| | | | |
| − | ===FOV=== | + | ==Product Images== |
| − | <gallery mode=nolines widths=200px>
| |
| − | File:2.0MP,1.2.9,2.8mm,51.1m.JPG|Camera Height: 10m <br /> Focal Length: 2.8mm<br /> Target Horizontal Dist: 51.1m
| |
| − | </gallery>
| |
| − | | |
| − | ===Specifications===
| |
| | {| class="wikitable" | | {| class="wikitable" |
| | |- | | |- |
| − | ! colspan="2"| Camera
| + | |[[File:A22CL62_Productbox.jpg|Product Box|200px]] |
| − | |-
| + | |[[File:A22CL62_BoxContents.jpg|Box Contents|200px]] |
| − | | Image Sensor
| + | |[[File:A22CL62 Produt Wire.png|Wire Harness|200px]] |
| − | | 1/2.8-in. CMOS Sensor
| |
| − | |- | |
| − | | Effective Pixels | |
| − | | 1920 (H) x 1080 (V), 2 MP | |
| − | |-
| |
| − | | Scanning System
| |
| − | | Progressive
| |
| − | |-
| |
| − | | Electronic Shutter Speed
| |
| − | | 1/3 s to 1/100,000 s
| |
| − | |-
| |
| − | | Minimum Illumination
| |
| − | | Color: 0.004 lux at F1.6, 30 IRE
| |
| − | 0 lux at F1.6 with IR On
| |
| − | |- | |
| − | | S/N Ratio | |
| − | | More than 65 dB | |
| − | |-
| |
| − | | IR Distance
| |
| − | | Up to 30.0 m (98.43 ft)
| |
| − | |-
| |
| − | | IR Control
| |
| − | | Auto, Manual
| |
| − | |-
| |
| − | | IR LEDs
| |
| − | | 12
| |
| − | |-
| |
| − | ! colspan="2"| Lens
| |
| − | |-
| |
| − | | Lens Type
| |
| − | | Fixed Lens, Fixed Iris
| |
| − | |-
| |
| − | | Mount Type
| |
| − | | Board-in
| |
| − | |-
| |
| − | | Focal Length
| |
| − | | 2.8 mm
| |
| − | |- | |
| − | | Maximum Aperture | |
| − | | F1.6
| |
| | |- | | |- |
| − | | Angle of View
| + | ! style="text-align:center;"|Product Box |
| − | | Horizontal: 110°
| + | ! style="text-align:center;"|Box Contents |
| − | |- | + | ! style="text-align:center;"|Wire Harness |
| − | | Close Focus Distance
| |
| − | | 500.0 mm (19.69 in.)
| |
| − | |-
| |
| − | ! colspan="2"| Installation Angle | |
| − | |-
| |
| − | |Range | |
| − | |Pan: 0° to 355°
| |
| − | Tilt: 0° to 65°
| |
| − | | |
| − | Rotation: 0° to 355°
| |
| | |} | | |} |
| | | | |
| − | {| class="wikitable"
| + | ==FOV== |
| − | |-
| + | <gallery mode=nolines widths=200px> |
| − | ! colspan="4"| DORI Distances²
| + | File:2.0MP,1.2.9,2.8mm,51.1m.JPG|Camera Height: 10m <br /> Focal Length: 2.8mm<br /> Target Horizontal Dist: 51.1m |
| − | |- | + | </gallery> |
| − | ! Detect
| |
| − | (8 ppf)
| |
| − | ! Observe
| |
| − | (19 ppf)
| |
| − | ! Recognize
| |
| − | (38 ppf)
| |
| − | ! Identify
| |
| − | (76 ppf)
| |
| − | |-
| |
| − | | 39 m
| |
| − | (128 ft)
| |
| − | |15 m
| |
| − | (49 ft)
| |
| − | |8 m
| |
| − | (26 ft)
| |
| − | |4 m
| |
| − | (13 ft)
| |
| − | |}
| |
| | | | |
| − | {| class="wikitable"
| |
| − | |-
| |
| − | ! colspan="3"| Video
| |
| − | |-
| |
| − | | Maximum Resolution
| |
| − | | colspan="2"| 1080p (1920 x 1080)
| |
| − | |-
| |
| − | | Frame Rate
| |
| − | | colspan="2"| 1080p at 30 fps or 720p at 60 fps
| |
| − | |-
| |
| − | | Video Output
| |
| − | | colspan="2"| One (1) BNC, Transmits HDCVI High-definition signal or CVBS,
| |
| − | AHD or TVI Channel, switchable
| |
| − | |-
| |
| − | | rowspan="3"| Video Transmission³
| |
| − | | RG-59/U Coax
| |
| − | | 720p: 800 m (2624.67 ft)
| |
| − | 1080p: 500 m (1640.42 ft)
| |
| − | |-
| |
| − | |RG-6/U Coax
| |
| − | |720p: 1200 m (3937.01 ft)
| |
| − | 1080p: 800 m (2624.67 ft)
| |
| − | |-
| |
| − | | CAT 6 UTP
| |
| − | (balun required)
| |
| − | | 720p: 450 m (1476.38 ft)
| |
| − | 1080p: 300 m (984.25 ft)
| |
| − | |-
| |
| − | | Day/Night
| |
| − | | colspan="2"| Auto (ICR), Manual
| |
| − | |-
| |
| − | | OSD Menu
| |
| − | | colspan="2"| Multi-language
| |
| − | |-
| |
| − | | BLC Mode
| |
| − | | colspan="2"| BLC, HLC, True WDR
| |
| − | |-
| |
| − | | WDR
| |
| − | | colspan="2"| 120 dB
| |
| − | |-
| |
| − | | Gain Control
| |
| − | | colspan="2"| AGC
| |
| − | |-
| |
| − | | Noise Reduction
| |
| − | | colspan="2"| 2D, 3D
| |
| − | |-
| |
| − | | White Balance
| |
| − | | colspan="2"| Auto, Manual
| |
| − | |-
| |
| − | | Smart IR
| |
| − | | colspan="2"| Auto, Manual
| |
| − | |}
| |
| | | | |
| − | {| class="wikitable"
| |
| − | |-
| |
| − | ! colspan="2"| Certifications
| |
| − | |-
| |
| − | | CE
| |
| − | | EN55032
| |
| − | EN55024
| |
| | | | |
| − | EN50130-4
| |
| − | |-
| |
| − | | Safety
| |
| − | | UL60950-1
| |
| − | CAN/CSA C22.2 No.60950-1
| |
| − | |-
| |
| − | | Electromagnetic Compatibility
| |
| − | (EMC)
| |
| − | | FCC CFR 47 Part 15 subpart B,
| |
| − | ANSI C63.4-2014
| |
| − | |-
| |
| − | ! colspan="2"| Interface
| |
| − | |-
| |
| − | | Audio⁴
| |
| − | | Input: One (1) Channel, RCA Jack
| |
| − | |-
| |
| − | ! colspan="2"| Electrical
| |
| − | |-
| |
| − | | Power Supply
| |
| − | | 12 VDC ± 30%
| |
| − | |-
| |
| − | | Power Consumption
| |
| − | | Maximum 4.4 W (12 VDC, IR On)
| |
| − | |-
| |
| − | ! colspan="2"| Environmental
| |
| − | |-
| |
| − | | Operating Conditions
| |
| − | | –40° C to +60° C (–40° F to +140° F)
| |
| − | Less than 90% RH
| |
| | | | |
| − | *Initiate start up above –40° C (–40° F)
| |
| − | |-
| |
| − | | Storage Conditions
| |
| − | | –40° C to +60° C (–40° F to +140° F)
| |
| − | Less than 90% RH
| |
| − | |-
| |
| − | | Ingress Protection
| |
| − | | IP67
| |
| − | |-
| |
| − | | Vandal Resistance
| |
| − | | IK10
| |
| − | |-
| |
| − | ! colspan="2"| Construction
| |
| − | |-
| |
| − | | Casing
| |
| − | | Aluminium
| |
| − | |-
| |
| − | | Dimensions
| |
| − | | ø109.90 mm x 81.0 mm
| |
| − | (ø4.33 in. x 3.19 in.)
| |
| − | |-
| |
| − | | Net Weight
| |
| − | | 0.21 kg (0.46 lb)
| |
| − | |-
| |
| − | | Gross Weight
| |
| − | | 0.31 kg (0.68 lb)
| |
| − | |}
| |
| | | | |
| | | | |
