DH-IPC-HDBW21A0RN-ZS

DH-IPC-HDBW21A0RN-ZS
Specifications Manual Firmware

Build Date: 8-30-2017

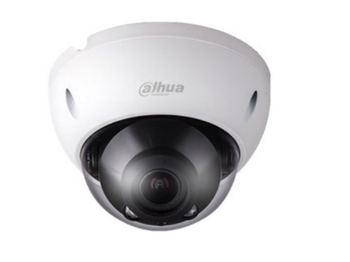

BodyCamTypeHDBW6 6.png

CAD Images

  • R Dome copy 1.JPG



FOV

  • Camera Height: 10m
    Focal Length: 2.7mm
    Target Horizontal Dist: 55.4m

  • Camera Height: 10m
    Focal Length: 12mm
    Target Horizontal Dist: 249.8m


Firmware Update Instructions

Compatible Accessories

Compatible Accessories
Accessories Combo 1 PFA134PFA134
Accessories Combo 2 PFB203WPFB203W
Accessories Combo 3 PFB200CPFB200C
Accessories Combo 4 PFA137PFA137 PFA150PFA150
Accessories Combo 5 PFB203WPFB203W PFA152PFA152
Accessories Combo 6 PFA137PFA137 PFA151PFA151

Reset Button

IPC HDBW23A0RN ZS reset button.jpg
