Latest revision as of 21:07, 18 June 2024

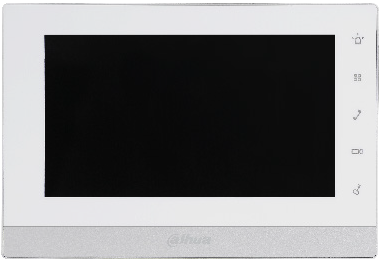

DHI-VTH1550CHW-2-S

These instructions are for Generation 2, IP-based Video Intercom Devices only.
Icon Name Generation Technology SIP 2.0 Example Device 1 Example Device 2 Identifying Characteristic PC Software Mobile App
Gen2-SIP2.0-2Wire Gen 2 2-Wire SIP 2.0 DHI-VTH1550CHW-2-S DHI-VTO2000A-2-S "-2-S" at end of model name DSS or DSS Express S DSS Mobile for VDP
DHI-VTH1550CHW-2-S
Specifications Manual Firmware

Build Date: 03-21-2019

Features

  • 7-inch TFT Capacitive Touchscreen
  • 800 x 480 Resolution
  • Alarm Integration
  • Micro SD Card Slot, maximum 32 GB
  • Record and Snapshot Functions (requires SD card)
  • Surface-mounted

Firmware Update Instructions


Configuration Limitations

  • Configuration 1: (1) VTO2000A-2 + (3) VTH1550CH-2 + (1) DHI-VTNC3000A (required)
  • Configuration 2: (2) VTO2000A-2 + (2) VTH1550CH-2 + (1) DHI-VTNC3000A (required)

2-Wire Solution

Product Images

Product Box Box Contents SD-Card Slot Front Panel Back Panel
Product Box Box Contents SD-Card Slot Front Panel Back Panel
