Latest revision as of 23:08, 11 August 2016
3G
Dialing Settings
Note: This function is only for series with 3G module. 3G is a mobile communication system which makes wireless communication integrates with Internet and multimedia communication. So far, the device supports two wireless interface standards which are confirmed by ITU, which are China Telecom and China Unicom respectively.
|
Parameter |
Function |
|
Wireless connection type |
The default is auto and it supports dial-up, sms and incoming call. |
|
Enable |
Check to enable 3G module. |
|
Authentication mode |
The authentication mode is CHAP for Telecom common card, both Mobile and Unicom have no authentication mode; for designed network card, it is different according to different cards. |
|
Dialing mode |
The dialing number is #777 for Telecom common card, both Mobile and Unicom are *98*1#; for designed network card, it is different according to different cards. |
|
User name |
The user name is card for Telecom common card, both Mobile and Unicom have no user name; for designed network card, it is different according to different card. |
|
Password |
The password is card for Telecom common card, both Mobile and Unicom have no user name; for designed network card, it is different according to different card. |
|
Update period |
It is period for device to receive 3G signal every 30s other than scheduled period. The default is 30s. Cut off dialing to save flow. |
|
Time range |
You can set dial-up interval. You also can dial if you enable dial-up/sms. The dial-up/sms and dial-up interval is related. |
|
IP address |
It displays received IP when 3G dial-up succeeds. |

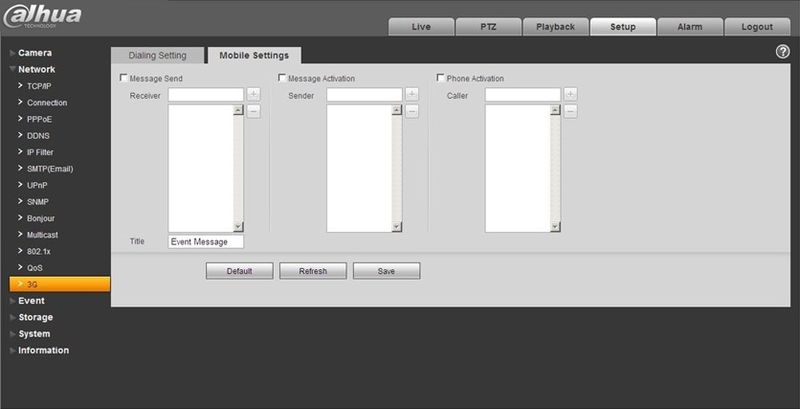

Mobile Settings
|
Parameter |
Function |
|
SMS sending |
In event management, check corresponding sms, so when there is event, a sms will be sent to mobile phone in corresponding receiving list. To use this function, you shall check sms enable in event management interface. |
|
SMS enable |
Mobile phone numbers in the list can enable/disable dial-up function and reboot device by sending sms to SIM card in the device. |
|
Tel Activation |
Mobile phone numbers in the list can call the SIM card in the device to enable/disable dial-up function. |
