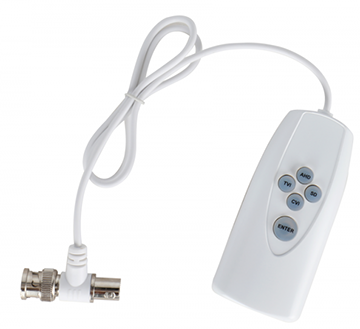

PFM820
Error creating thumbnail: Unable to save thumbnail to destination
Features
- Compact Controller Connects Analog Cameras to a DVR
- Supports HDCVI, AHD, HDTVI, and CVBS Formats
- Indicators Show Current Video Format
Specifications
| Video | |
| Formats | HDCVI, AHD, HDTVI, CVBS |
| Electrical | |
| Power Supply | Two (2) AAA Batteries |
| Power Consumption | 0.3 W |
| Environmental | |
| Operating Conditions | 0° C to +40° C (32° F to +104° F), |
| Relative Humidity | 0 to 95% |
| Construction | |
| Casing | PC and ABS Plastic |
| Dimensions | Controller: 90.0 mm x 41.0 mm x 21.0 mm |
| (3.54 in. x 1.61 in. x 0.83 in.) | |
| Cable Length: 560 mm (22.05 in.) | |
| Color | White |
| Net Weight | 48.0 g (0.11 lb) |
