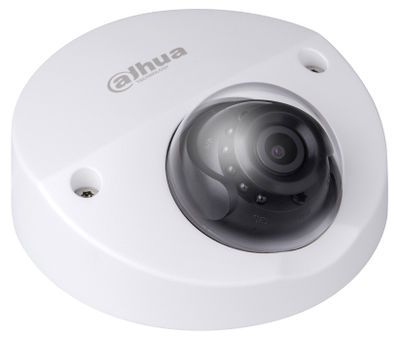

IPC-HDBW4221FN(-AS)
.jpg)
Features
- 1/2.7” 2Megapixel progressive scan CMOS
- H.264&MJPEG dual-stream encoding
- 30fps@1080P(1920×1080)
- Smart Detection supported
- WDR(120dB), Day/Night(ICR), 3DNR,AWB,AGC,BLC,
- Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
- 3.6mm fixed lens (2.8mm, 6mm optional)
- Max. IR LEDs Length 20m
- IP67,IK10, PoE
Specifications
| Model | DH-IPC-HDBW4221FN(-AS) | |
| Camera | ||
| Image Sensor | 1/2.7” 2Megapixel progressive scan CMOS | |
| Effective Pixels | 1920(H) ´ 1080(V) | |
| Scanning System | Progressive | |
| Electronic Shutter Speed | Auto/Manual, 1/3(4)~1/10000s | |
| Min. Illumination | 0.01lux/F2.0(color),0lux/F2.0 (IR on) | |
| S/N Ratio | More than 50dB | |
| Video Output | N/A | |
| Camera Features | ||
| Max. IR LEDs Length | 20m | |
| Day/Night | Auto(ICR)/Color/B/W | |
| Backlight Compensation | BLC / HLC / WDR(120dB) | |
| White Balance | Auto/Manual | |
| Gain Control | Auto/Manual | |
| Noise Reduction | 3D | |
| Privacy Masking | Up to 4 areas | |
| Lens | ||
| Focal Length | 3.6mm (2.8mm,6mm optional) | |
| Max Aperture | F2.0(F2.0,F2.0) | |
| Focus Control | Manual | |
| Angle of View | H:93°(120°/63°) | |
| Lens Type | Fixed lens | |
| Mount Type | Board-in Type | |
| Video | ||
| Compression | H.264/H.264H/H.264B/MJPEG | |
| Resolution | 1080P(1920x1080)/1.3M(1280x960)/720P(1280×720)/D1(704×576/704×480) /CIF(352×288/352×240) | |
| Frame Rate | Main Stream | 1080P/720P(1 ~ 25/30fps) |
| Sub Stream | D1/CIF(1 ~ 25/30fps) | |
| Third Stream | 720P(1-13/4fps) | |
| Bit Rate | H.264: 32K ~ 10Mbps | |
| Corridor Mode | Support | |
| Audio | ||
| Compression | N/A (-AS model with G.711a/G.711u/PCM) | |
| Interface | N/A (-AS model with 1/1 channel In/Out) | |
| Network | ||
| Ethernet | RJ-45 (10/100Base-T) | |
| Wi-Fi | N/A | |
| Protocol | IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour | |
| Compatibility | ONVIF,PSIA,CGI | |
| Max. User Access | 20 users | |
| Smart Phone | iPhone, iPad, Android, Windows Phone | |
| Auxiliary Interface | ||
| Memory Slot | N/A (-AS model with Micro SD Max 128GB) | |
| RS485 | N/A | |
| Alarm | N/A (-AS model with 1/1 channel In/Out) | |
| PIR Sensor Range | N/A | |
| General | ||
| Power Supply | DC12V, PoE (802.3af) | |
| Power Consumption | <5W | |
| Working Environment | -40°C~+60°C, Less than 95% RH | |
| Ingress Protection | IP66 | |
| Vandal Resistance | IK10 | |
| Dimensions | Φ106mm×50.3mm | |
| Weight | 0.35kg | |
