PFM820 Physical Setup
Description
These instructions will show you how to physically connect the PFM820 to an HD-CVI camera to either access the OSD or change the video output mode.
Prerequisites
- HD-CVI Camera
- PFM820
- HD-CVI Camera Power Supply
- BNC Cable
- HD-CVI Recorder
Video Instructions
Step by Step Instructions

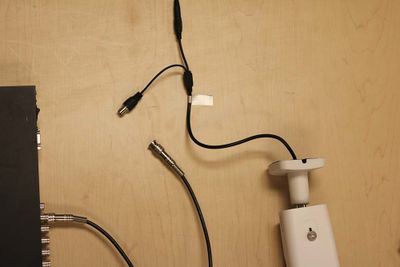

1. Locate the camera's BNC connection and disconnect the BNC cable.
400px =>
2. Attach the PFM820 to the cameras BNC connection.

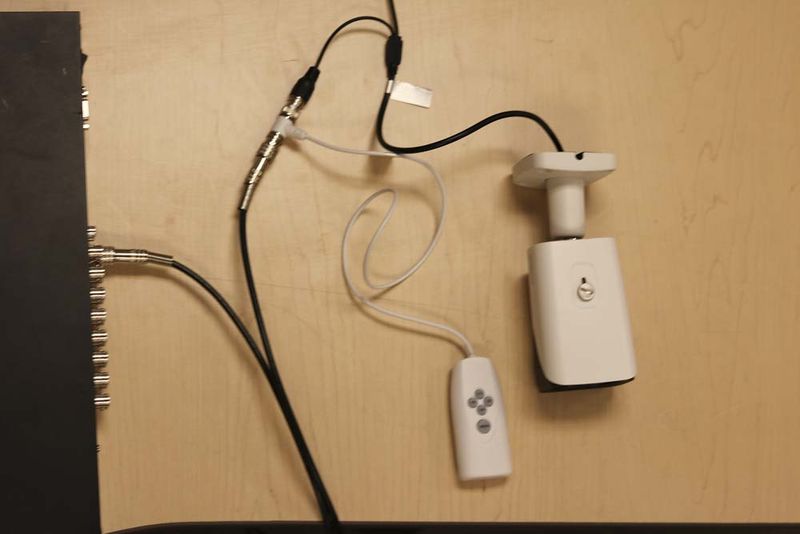

3. Attach the BNC cable from your recorder to the other end of the PFM820.
