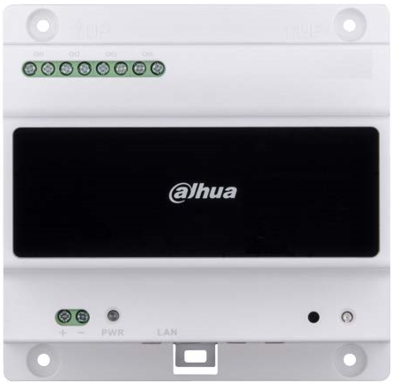

VTNC3000A
Features
- 4 groups of 2-wire port, provide power and signal to other 2-wire devices
- RJ45 port, connected LAN
- Surface mounted & DIN-Rail Mounted
Configuration Limitations
- Configuration 1: (1) VTO2000A-2 + (3) VTH1550CH-2 + (1) DHI-VTNC3000A (required)
- Configuration 2: (2) VTO2000A-2 + (2) VTH1550CH-2 + (1) DHI-VTNC3000A (required)
- Configuration 2: (3) VTO2000A-2 + (1) VTH1550CH-2 + (1) DHI-VTNC3000A (required)
2-Wire Solution
Specifications
Technical Specification | |
Voltage |
24V |
Power Consumption |
Max consumption:30W(4-CH output full load) |
Working Temperature |
-10°C~+55°C |
Dimensions |
108mm*108mm*64mm(L*W*T) |
Weight |
0.5 Kg |
