Description
SmartPSS 1.6 Alarm Setup
Prerequisites
- A NVR or IP Camera with an Alarm Out
- SmartPSS 1.16 or 1.161
Video Instructions
Step by Step Instructions
1. Identify which alarm out block you wish to use to connect your physical alarm. For this example we are going to use, "Alarm Out Channel 1"
2. Connect the cable to your physical alarm.
->
3. Connect the cable to the alarm block on the ports labeled, "IN1" and "Ground"

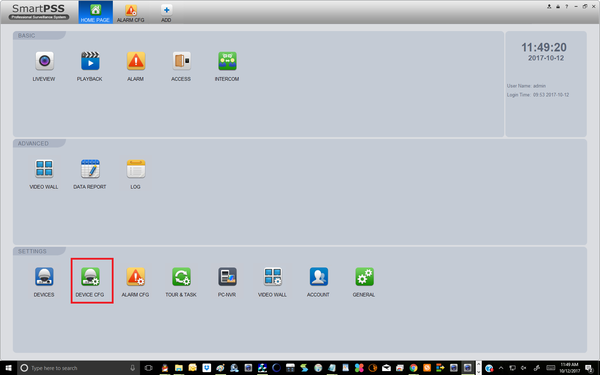

4. Log into SmartPSS -> Device CFG.
