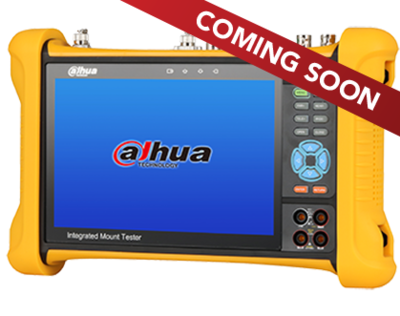

PFM906
Features
- 7-in. IPS HD Capacitive Touch Screen, 1920 x 1200 Resolution
- Supports IP, HDCVI, AHD, TVI, CVBS, and SDI Formats
- HDMI Input and Output
- PoE+, 12 VDC, and USB 5 VDC Power Output
- Supports TDR for Network and Coaxial Cables
- Supports UTP Cable Testing and Hunting and Visual Fault Locator for Optical Cables
- PoE+, 12 VDC, and USB 5V Power Output
- 37 Wh Lithium Ion Battery, up to 10 Hours Normal Operation
Specifications
| Physical Port | |
| Network Ports | Three (3) 10/100 Mbps RJ45 |
| (LAN/PSE, PD, UTP/Scan) | |
| BNC Port | Two (2) Video In (SDI, HDCVI, TVI, AHD, CVBS) |
| One (1) Video Out | |
| Functional Ports | One (1) Port for the following functions: |
| TDR, OPM, VLS, RS485, DC12V In (charger), HDMI In, HDMI Out, Audio In, Audio Out, Micro SD | |
| IP Camera Tests | |
| IP Camera Type | ONVIF (with PTZ control) |
| Dahua Test Tool | Designed for Dahua camera image tests, modify camera and user parameters |
| IP Camera Test | Supports rapid ONVIF, |
| Auto-scan entire network segment | |
| Automatic login to display camera image | |
| Automatic network | |
| Display 4K images in main stream | |
| Full-screen preview and 5x digital zoom | |
| Snapshot, record, photo view and playback | |
| Analog Video Test | |
| Format | HDCVI, AHD, TVI, CVBS |
| HDCVI Camera | One (1) Channel Video In, Maximum Resolution: |
| 1280 x 720p at 25 fps, 30 fps, 50 fps, 60 fps | |
| 1920 x 1080p at 25 fps, 30 fps | |
| 2560 x 1440p at 25 fps, 30 fps | |
| TVI Camera | One (1) Channel Video In, Maximum Resolution: |
| 1280 x 720p at 25 fps, 30 fps, 50 fps, 60 fps | |
| 1920 x 1080p at 25 fps, 30 fps, 50 fps, 60 fps | |
| 2048 x 1536 at 18 fps | |
| AHD Camera | One (1) Channel Video In, Maximum Resolution: |
| 1280 x 720p at 25 fps, 30 fps | |
| 1920 x 1080p at 25 fps, 30 fps | |
| 2560 x 1440p at 15 fps, 25 fps, 30 fps | |
| CVBS Camera | One (1) Channel In, One (1) Channel Out, |
| Supports auto-adapting PAL/NTSC formats | |
| Camera Test | Real-time Video, |
| Coaxial PTZ and RS485 Control | |
| Audio Test | Full-screen preview and 5x digital zoom |
| Snapshot, record, photo view and playback | |
| SDI Test | |
| SDI Video | One (1) Channel BNC In, Maximum Resolution: |
| 720p, 1080i, or 1080p at 60 fps | |
| SDI Video Test | HDMI Out port converts SDI to HDMI |
| Output HD-SDI video to an HD TV monitor | |
| HDMI Display Resolution | |
| HDMI In | 720 x 480p, 720 x 576p, 1280 x 720p, 1024 x 768p, 1280 x 1024p, 1280 x 900p, 1440 x 900p |
| HDMI Out | 1920 x 1080p |
| PTZ Control | |
| Protocol | Compatible with over 30 protocols, including |
| Pelco D/P, Samsung, and Panasonic | |
| Baud Rate | 600 bps to 115,200 bps |
| Cable Tester | |
| Network Cable | TDR, Cable Search, UTP Cable Tester |
| Coaxial Cable | TDR, Analog Video Generator |
| Optical Cable | Visual Fault Locator |
| Tools | |
| Network Tool | IP Address Scan, Ping Test, Bandwidth Test, |
| Port Flashing, DHCP Server | |
| Digital Multi-meter (DMM) | AC/DC Voltage, AC/DC Current, Resistance, Capacitance, Data Hold, Relative Measurement, Continuity Testing |
| Testing Speed: 3 per second | |
| Data Range: –6600 to +6600 | |
| Optical Power Meter | Calibrated Wavelength: |
| 850, 1300, 1310, 1490, 1550, 1625 | |
| Power Range: –70 dBm to +10 dBm | |
| Data Monitor | Capture and analyze command data from controlling device via RS485 (hexadecimal also valid) |
| Flashlight | On/Off LED Control |
| PoE and Power | Measure PoE Switch Voltage, Display Pin Configuration |
| Audio Recorder | Save Audio Message |
| Notepad | Record Testing Results |
| Calculator | Supplies On-screen Calculator |
| System Information | |
| Screen | 7-in. Capacitive Touch-screen with Retina Display, |
| 1920 x 1200 Resolution | |
| Wi-Fi | Built-in 2.4 Gbps Wi-Fi Module, |
| Maximum Speed: 150 Mbps | |
| Receive a wireless network and view IP Cameras | |
| LED Flashlight | One (1) 35 lm LED light |
| Storage Capacity | Built-in 8 GB, supports external 32 GB SD Card, max. |
| Language Support | English, Chinese, Korean, Russian, Italian, Polish, Spanish, French, Japanese, and others |
| Automatic Power Off | 1 to 30 minutes |
| Upgrade | Supports local update via SD Card or via the Internet |
| Power | |
| Charger | 12 VDC, 2 A |
| Battery | 7.4 V Lithium Polymer Battery, 5000 mAh, 37 Wh |
| Working Time | 10 Hours, after 5 to 6 hours charging |
| PoE Power Out | 48 VDC PoE+ , maximum |
| 12 VDC Out | 12 VDC, 2 A |
| USB5V Out | 5 VDC, 2 A |
| Certifications | |
| Certifications | CE, FCC |
| Environmental | |
| Working Temperature | –10° C to +55° C (14° F to 131° F), 30% to 90% RH |
| Casing | Plastic |
| Dimensions | 270.0 mm x 160.0 mm x 46.0 mm |
| (10.63 in. x 6.30 in. x 1.81 in.) | |
| Net Weight | 0.95 kg (2.09 lb) |
| Packaging Dimensions | 313.0 mm x 286.0 mm x 96.0 mm |
| (12.32 in. x 11.26 in. x 3.78 in.) | |
| Gross Weight | 2.1 kg (4.63 lb) |
