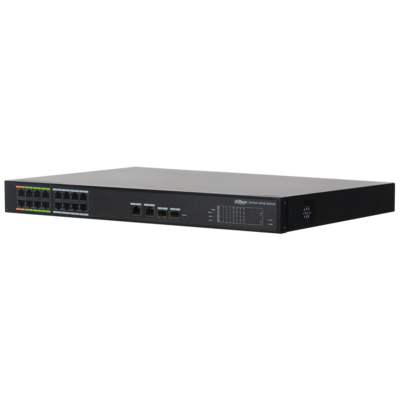

DH-LR2218-16ET-240
Features
- Layer 2 Managed Network ePoE Switch
- Enhanced Power and Data Transmission Distances with ePoE
- Supports Long Distance ePoE Transmission, up to 800 m (2524 ft)
- Supports IEEE, E100, and E10 Transmission Modes (Ports 1 to 8)
- Supports Twisted-pair and Coaxial Cable Transmission (Ports 1 to 8)
- Web Management Protocols: 802.1Q, VLAN, STP/RTSP, LACP, 802.1X, QoS
- Supports PoE Management, Green PoE, and Legacy Support
- Supports the IEEE802.3af and IEEE802.3at Standards and Hi-PoE
- Conforms to the IEEE802.3, IEEE802.3u, IEEE802.3ab/z and the IEEE802.3X Standards
Specifications
