Revision as of 22:38, 1 August 2019

Global Setup

Description

This article will show you how to set the global rules for IVS analysis.

Depth of field calibration allows the camera to determine the corresponding relationship between the 2D image captured by the camera and the actual 3D object using one horizontal ruler and three vertical rulers that are defined by the user using the corresponding actual distance.

Note: Global setup is for the Fast-Moving IVS feature

Example

Prerequisites

  • Supported device with IVS feature

Metric to Imperial Conversion

  • 1 Meter = 3.28 Feet
  • 2 Meters = 6.56 Feet
  • 3 Meters = 9.84 Feet

Example

Global Setup Best Practices

  • The camera must be installed at a medium or distant view with an installation height of more than 3 meters.
  • Scenes with parallel view or ceiling mounted are not supported
  • Horizontal surfaces can be calibrated, not vertical walls or sloping surfaces
  • Not applicable for scenes that have a distorted view such as captured by super wide-angle or a fisheye camera


Vertical rulers: Three rulers must be created. Select three reference objects with fixed height that are positioned in a triangular distribution

Horizontal ruler: Use a reference object with a known length such as a sign on the road or make an actual measurement of the ground

The scene in this guide will use the lamp posts that are in the scene since they are uniform height and positioned in a triangulated arrangement.

IVS Global Setup - Example Scene.jpg

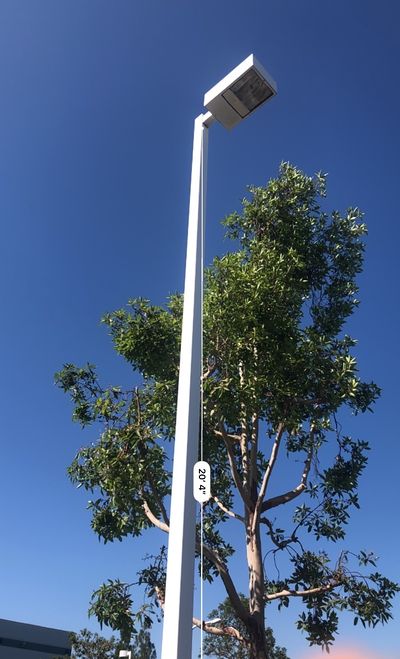

Vertical Object - Light Post.JPG

Video Instructions

Coming Soon

Step by Step Instructions

1. Log into the web interface of the camera

IVS Global Setup - 1.jpg

2. Click Setting

IVS Global Setup - 2.jpg

3. Click Event > IVS

Click the tab labeled 'Global Setup'

IVS Global Setup - 3.jpg

4. The calibration zone must be created

Click inside the video frame to draw a frame

IVS Global Setup - 4.jpg

5. Left click to draw

IVS Global Setup - 5.jpg

6. The 3 vertical reference rules must be drawn.

These objects must be identical in height.

Toggle the button next to Vertical then click Add Rules

Then click inside the video frame to drag and draw the line

IVS Global Setup - 6.jpg

7. One Vertical ruler has been created in this scene

IVS Global Setup - 7.jpg


8.Repeat the same process twice to create 2 more Vertical rulers in the scene

IVS Global Setup - 8.jpg


9. The horizontal reference rule must be drawn.

Toggle the button next to Horizontal then click Add Rules

Then click inside the video frame to drag and draw the line

IVS Global Setup - 9.jpg

10. All rules complete

IVS Global Setup - 10.jpg

11. Enter the actual length of the created Rulers by first selecting the Rule in the list above then entering the value in the 'Actual Length' field (in meters)

IVS Global Setup - 11.jpg

12. Click Save once all parameters have been set

IVS Global Setup - 12.jpg


13. To test
