Video Instructions

Step by Step Instructions

1. Enter the IP of the device into a browser (default 192.168.1.108)

At the Web Login

Enter the Username and Password

Click Login

2.

Fire Warning Setup - WebUI - 1.jpg

3.

Fire Warning Setup - WebUI - 2.jpg

4.

Fire Warning Setup - WebUI - 3.jpg

5. Select the desired Fire Warning mode:

Fire Warning Setup - WebUI - 4.jpg

  • Anti-jamming: The camera will only detect those objects that are newly high temperature and send off alarms. That means under Anti-jamming mode, a constantly high-temperature object (a boiler/water heater, for example) is excluded
  • High Response: The camera will detect any hidden fire danger and send off alarm

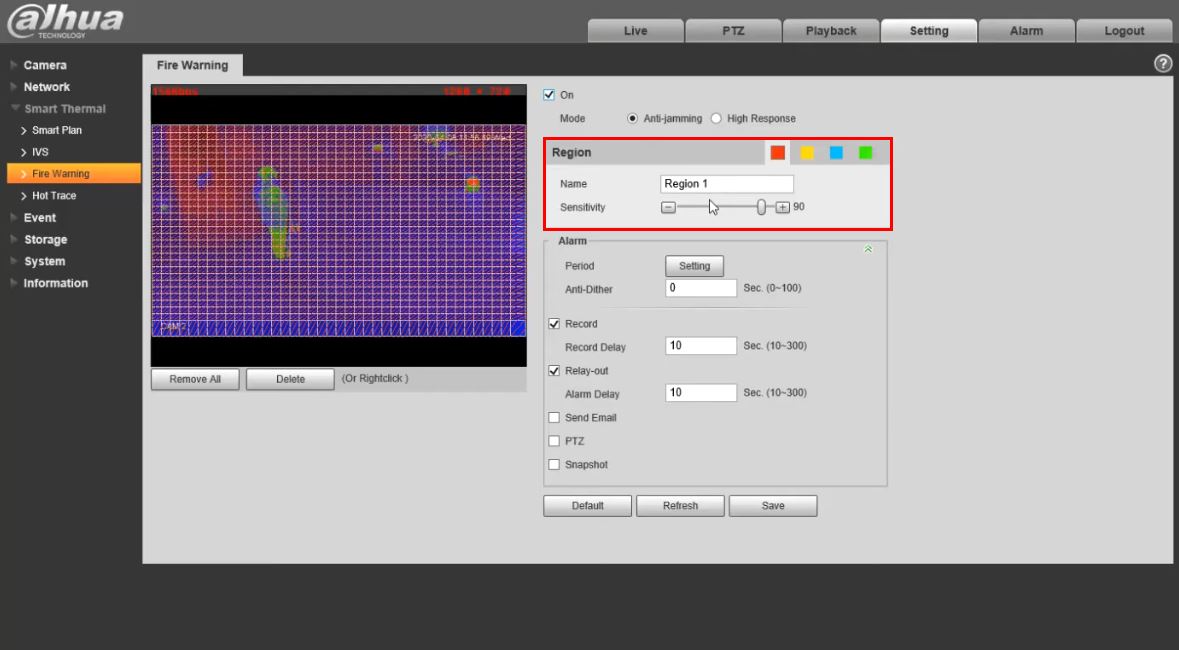

6. Region settings

Select a color in Region color.jpg Each color represents a certain area which you can draw with your left mouse button. You can also give a name to the area you have drawn and set it's sensitivity.

The larger the sensitivity is, the easier a fire will be triggered.

Fire Warning Setup - WebUI - 5.jpg

7.
