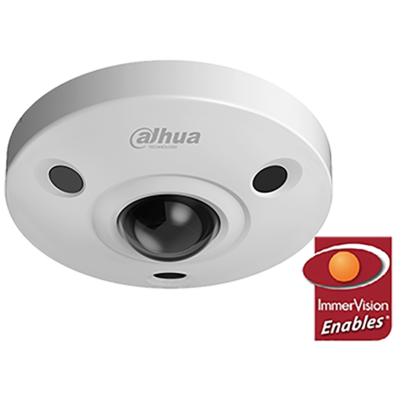

N68BR4V
Features
- 1/1.8-in. 6 MP Progressive-scan STARVIS™ CMOS Sensor
- Triple-stream Encoding
- H.265/H.264 Dual Codec
- 6 MP at 30 fps Maximum Resolution
- Multiple Dewarp Modes
- Day/Night (ICR), 3DNR, AWB, AGC, BLC
- Smart detection
- Intelligent Video System Analytics
- Maximum IR Distance up to 10 m (33 ft)
- IP67 Ingress Protection, IK10 Vandal Resistance
- Micro SD Memory and PoE
- Panamorph Lens RPL: B4QQV
Firmware
Firmware Update Instructions
- Instructions for Firmware Update via USB
- Instructions for Firmware Update via ConfigTool
- Instructions for Firmware Update via Internet Explorer
Firmware Update Download
Build Date: 09-30-2021
Body Style with Compatible Accessories
Specifications
| Camera | ||
| Image Sensor | 1/1.8-in. 6 MP STARVIS™ CMOS | |
| Total Sensor Pixels | 3072(H) x 2048(V) | |
| RAM/ROM | 1024 MB / 128 MB | |
| Scanning System | Progressive | |
| Electronic Shutter Speed | Auto, Manual, 1/3 s to 1/100,000 s | |
| Minimum Illumination | Color: 0.005 lux at F2.8 (1/3 s, 30 IRE) | |
| Color: 0.05 lux at F2.8 (1/30 s, 30 IRE) | ||
| 0 lux at F2.8 with IR on | ||
| S/N Ratio | More than 50 dB | |
| IR Distance | Up to 10 m (32.81 ft) | |
| IR On/Off Control | Auto, Manual | |
| IR LEDs | Three (3) | |
| Lens | ||
| Lens Type | Fixed | |
| Mount Type | Board-in | |
| Focal Length | 1.3 mm | |
| Maximum Aperture | F2.8 | |
| Angle of View | Horizontal: 360° | |
| Focus Control | Fixed | |
| DORI¹ Distance | ||
| Detect (8 ppf) | 21 m (69 ft) | |
| Observe (19 ppf) | 8 m (26 ft) | |
| Recognize (38 ppf) | 4 m (13 ft) | |
| Identify (76 ppf) | 2 m (7 ft) | |
| Video | ||
| Compression | H.265, H.264 | |
| Streaming Capability | Three (3) Streams | |
| Resolution | 6 MP (3072 x 2048), 4 MP (2048 x 2048), 3 MP (2048 x 1536), UXGA (1600 x 1200), 1.3 MP (1280 x 960), D1 (704 x 576), CIF (352×288) | |
| Effective Maximum Resolution, based on Dewarping Mode | ||
| Dewarping Method | Mount Location | Resolution (H x V) |
| 1 Panoramic | Ceiling/Ground | 4096 x 1024 |
| Wall | 2048 x 1024 | |
| 2 Panoramic | Ceiling/Ground | 2048 x 2048 |
| 1 Original + 3 Regions | All Locations | 2048 x 2048 |
| 4 Regions | All Locations | 2048 x 2048 |
| 1 Region | All Locations | 1280 x 1024 |
| Frame Rate | ||
| Main Stream | 6 MP at 30 fps | |
| Sub Stream 1 | D1 at 30 fps | |
| Sub Stream 2 | 1.3 MP at 30 fps | |
| Bit Rate Control | CBR, VBR | |
| Bit Rate | H.265: 3 Kbps to 9984 Kbps | |
| H.264: 8 Kbps to 16384 Kbps | ||
| Day/Night | Auto (ICR), Color, B/W | |
| BLC Mode | BLC, HLC, DWDR | |
| White Balance | Auto, Natural, Street Lamp, Outdoor, Manual | |
| Gain Control | Auto, Manual | |
| Noise Reduction | 3D DNR | |
| Motion Detection | Off, On (4 Zone, Rectangle) | |
| Region of Interest | Off, On (4 Zone) | |
| Advanced Features | Smart IR, Defog | |
| Digital Zoom | 16x | |
| Privacy Masking | Off, On (4 Area, Rectangle) | |
| Audio | ||
| Compression | G.711a, G.711Mu, AAC, G.726 | |
| Network | ||
| Ethernet | RJ-45 (100/1000 Base-T) | |
| Protocol | HTTP, HTTPs, TCP, ARP, RTSP, RTP, UDP, SMTP, FTP, DHCP, DNS, DDNS, PPPOE, IPv4/v6, QoS, UPnP, NTP, Bonjour, 802.1x, Multicast, ICMP, IGMP, SNMP | |
| Interoperability | ONVIF, PSIA, CGI | |
| Streaming Method | Unicast, Multicast | |
| Maximum User Access | 10 Users, 20 Users | |
| Edge Storage | NAS | |
| Local PC for instant recording | ||
| Micro SD Card, maximum 128 GB | ||
| Web Viewer | IE, Firefox, Safari | |
| Management Software | Smart PSS, DSS | |
| Mobile Operating System | IOS, Android | |
| Certifications | ||
| Safety | UL60950-1 | |
| Electromagnetic Compatibility (EMC) | FCC Part 15 Subpart B | |
| Interface | ||
| Audio Interface | Input: One (1) Channel | |
| Output: One (1) Channel | ||
| Alarm | Input: Two (2) Channels (5 VDC, 5 mA) | |
| Output: Two (2) Channels (30 VDC, 1 A; 50 VAC, 0.5 A) | ||
| Electrical | ||
| Power Supply | 12 VDC ±25% or PoE (802.3af, Class 0) | |
| Power Consumption | < 12 W | |-| class="xl67" width="243" height="19"|Environmental| class="xl67" width="282"| | class="xl66"| |-| class="xl67" width="243" height="19"|Operating Conditions| class="xl67" width="282"|-30 °C to +60 °C (-22 °F to +140 °F),| class="xl66"| |-| class="xl66" height="19"| | class="xl67" width="282"|Less than 95% RH| class="xl66"| |-| class="xl67" width="243" height="19"|Storage Conditions| class="xl67" width="282"|-30 °C to +60 °C (-22 °F to +140 °F),| class="xl66"| |-| class="xl67" width="243" height="19"| | class="xl67" width="282"|Less than 95% RH| class="xl66"| |-| class="xl67" width="243" height="19"|Ingress Protection| class="xl67" width="282"|IP67| class="xl66"| |-| class="xl67" width="243" height="19"|Vandal Resistance| class="xl67" width="282"|IK10| class="xl66"| |-| class="xl67" width="243" height="19"|Construction| class="xl67" width="282"| | class="xl66"| |-| class="xl67" width="243" height="19"|Casing| class="xl67" width="282"|Metal| class="xl66"| |-| class="xl67" width="243" height="19"|Dimensions| class="xl67" width="282"|ø149.80 mm x 50.70 mm (ø5.90 in. x 2.0 in.)| class="xl66"| |-| class="xl67" width="243" height="19"|Net Weight| class="xl67" width="282"|0.58 kg (1.28 lb)| class="xl66"| |-| class="xl67" width="243" height="19"|Gross Weight| class="xl67" width="282"|1.0 k g (2.20 lb)| class="xl66"| |-| class="xl67" width="243" height="19"|Intelligence| class="xl67" width="282"| | class="xl66"| |-| class="xl67" colspan="2" width="525" height="19"|IVS triggers an alarm and takes a defined action for the following events:| class="xl66"| |-| class="xl67" width="243" height="19"|Standard Features| class="xl67" width="282"|Tampering with the camera.| class="xl66"| |-| class="xl67" width="243" height="19"| | class="xl67" width="282"|Error writing to an onboard Micro SD card.| class="xl66"| |-| class="xl67" width="243" height="39"| | class="xl67" width="282"|Error sending or receiving data over the network.| class="xl66"| |-| class="xl67" width="243" height="19"| | class="xl67" width="282"|Unauthorized access to the camera.| class="xl66"| |-| class="xl67" width="243" height="19"|Premium Features| class="xl67" width="282"| | class="xl66"| |-| class="xl67" width="243" height="39"|Motion| class="xl67" width="282"|An object moves through any part of the scene.| class="xl66"| |-| class="xl67" width="243" height="19"|Tripwire| class="xl67" width="282"|A target crosses a user-defined line.| class="xl66"| |-| class="xl67" width="243" height="19"|Intrusion| class="xl67" width="282"|A target enters or exits a defined perimeter.| class="xl66"| |-| class="xl67" width="243" height="58"|Scene Change| class="xl67" width="282"|A person or object moves the camera to change the scene or covers the camera to obscure the scene.| class="xl66"| |-| class="xl67" width="243" height="58"|Abandoned/Missing Object| class="xl67" width="282"|A target leaves an object in designated area, or a target removes an object from the same designated area.| class="xl66"| |-| class="xl67" width="243" height="19"|Advanced Features| class="xl67" width="282"| | class="xl66"| |-| class="xl67" width="243" height="19"|Heat Map| class="xl67" width="282"|Generates a visual representation of data.| class="xl66"| |-| class="xl67" width="243" height="19"| | class="xl67" width="282"| | class="xl66"| |-| class="xl69" colspan="3" width="646" height="50"|1. The DORI distance is a measure of the general proximity for a specific classification to help pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specifications and lab test results according to EN 62676-4 , the standard that defines the criteria for the Detect, Observe, Recognize and Identify classifications.|} |
