Difference between revisions of "SMD/Smart Motion Detection"

(→‎Instructions)
(→‎Prerequisites)
Line 74: Line 74:

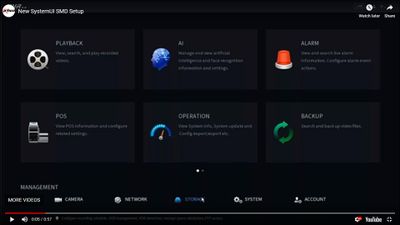

1. Main menu, go to "Storage".

1. Main menu, go to "Storage".

<br>

<br>
 +
[[File:SMDStorage1.JPG|400px]]
 +
 +
 +

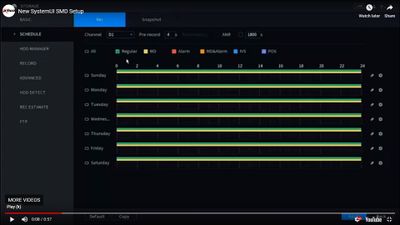

2. Rec tab, Schedule. Select the recording option, Regular, MD, Alarm, MD&Alarm,IVS, POS.
 +
<br>
 +
[[File:Schedule2.JPG|400px]]
 +
 +
 +

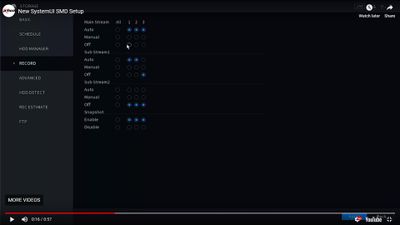

3. Go to the "Record" tab on the right side. Check the right options, Main Stream, Sub Stream, Snapshot.
 +
<br>
 +
[[File:Record3.JPG|400px]]
 +
 +
 +

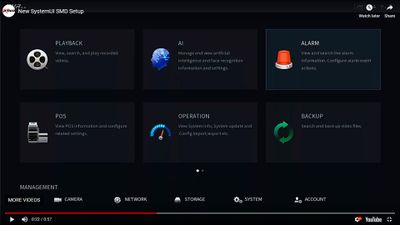

4. Go to the Main Paige and choose "Alarm".
 +
<br>
 +
[[File:Alarm4.JPG|400px]]
 +
 +
 +
5. Choose the "Video Detection" Option, Enable the Channel, setup  the region, choo
 +
 +
 +
 +
 +
 +



Revision as of 22:25, 21 January 2020

Smart Motion Detection-SMD

What is SMD?

SMD , referred to as Smart Motion Detection which can analyzes person and vehicle shapes based on motion detection by deep-learning algorithm. and send alarms only when person and vehicle intrudes.

Devices that Have SMD

NOTE: SMD is not supported in SmartPSS

SMD Version 1

These devices have SMD present in the system menus, but feature is not functional.

  • X58A5S

SMD Version 2

  • X82A3A

What are the benefits of SMD?

  • False Alarm Filter
  • Quick Target Search
  • Alarm Visualization
  • Real-time Alarm Push

MD vs. SMD

Object Motion Detection Smart Motion Detection
Person Alarm Alarms when Human Detected Only*
Vehicle Alarm Alarms when Vehicle Detected Only*
Pets False Alarm No Alarm
Insects False Alarm No Alarm
Extreme Weather False Alarm No Alarm
Branches & Leaves False Alarm No Alarm
  • Object will be identified when appropriate object filter has been selected.

Quick Target Search

Extract and classify person and vehicles from massive video data, easy for end users to trace historical information and analyze. Person & Vehicle optional for playback to achieve quick target search, saving event retrieval time.

SMD Realtime Tracking

SMD Example1.png

  • SMD rule preview enables user to see the alarm more clearly
  • Real-time tracking box of SMD provides more accurate tracking effect

DMSS Alarm Push

SMD Example2.png

Newly added alarm target classification on DMSS, which shows it clearly that if there was person or vehicle trigger the MD alarm.

Instructions

[Expand]

Icon for type SystemUI New.pngSystemUI New

How to Setup SMD using the SystemUI

Prerequisites

  • SystemUI

1. Main menu, go to "Storage".


2. Rec tab, Schedule. Select the recording option, Regular, MD, Alarm, MD&Alarm,IVS, POS.


3. Go to the "Record" tab on the right side. Check the right options, Main Stream, Sub Stream, Snapshot.


4. Go to the Main Paige and choose "Alarm".


5. Choose the "Video Detection" Option, Enable the Channel, setup the region, choo





[Expand]

Icon for type WebUI Old.pngWebUI Old

[Expand]

Icon for type WebUI New.pngWebUI New
