Revision as of 21:42, 5 May 2020
Temperature Monitoring Solution Initial NVR Setup
Description
This guide will cover the initial NVR Setup for the Thermal Temperature Monitoring Solution including device initialization, firmware update , factory defaulting, and settign Network information
Prerequisites
- DHI-NVR5216-16P-I powered and connected to network
- Latest firmware for NVR (see below)
Temperature Monitoring Solution Firmware
| NVR Model | Firmware |
|---|---|
| DHI-NVR5216-16P-I | |
Video Instructions
Step by Step Instructions
Device Initialization
Enter the IP address of the NVR - default 192.168.1.108 in Internet Explorer on a local computer
Select the Region, Language and Video Standard. Click Next
Scroll down to review the agreement and check to confirm.
Click Next
Select the Time Zone and confirm the System Time. Click Next
Create a password for the device and enter twice to confirm. Click Next
Select which Password Protection feature(s) you wish to enable. Click OK
A prompt will confirm a successful initialization
Confirm/Upgrade NVR Firmware
Enter the password and click Login
Click Operation
Click Information > Version. System Version will show the current firmware version of the NVR.
Compare the Build Date to the firmware file downloaded. If the Build Date matches that date the system is up to date.
Click System Maintain
Click the Upgrade tab. Click Browse
Select the firmware file that was downloaded. Click Open
Click Upgrade
A prompt will appear to confirm the unit is upgrading
A prompt will appear to confirm the unit is rebooting after upgrading
Factory Default
Resetting the device to Factory Default is recommended after upgrading the Firmware.
Enter the password and click Login
Click Operation
Click Information > Version. System Version will show the current firmware version of the NVR.
Compare the Build Date to the firmware file downloaded. If the Build Date matches that date the system is up to date.
Click System Maintain
Click the Upgrade tab. Click Browse

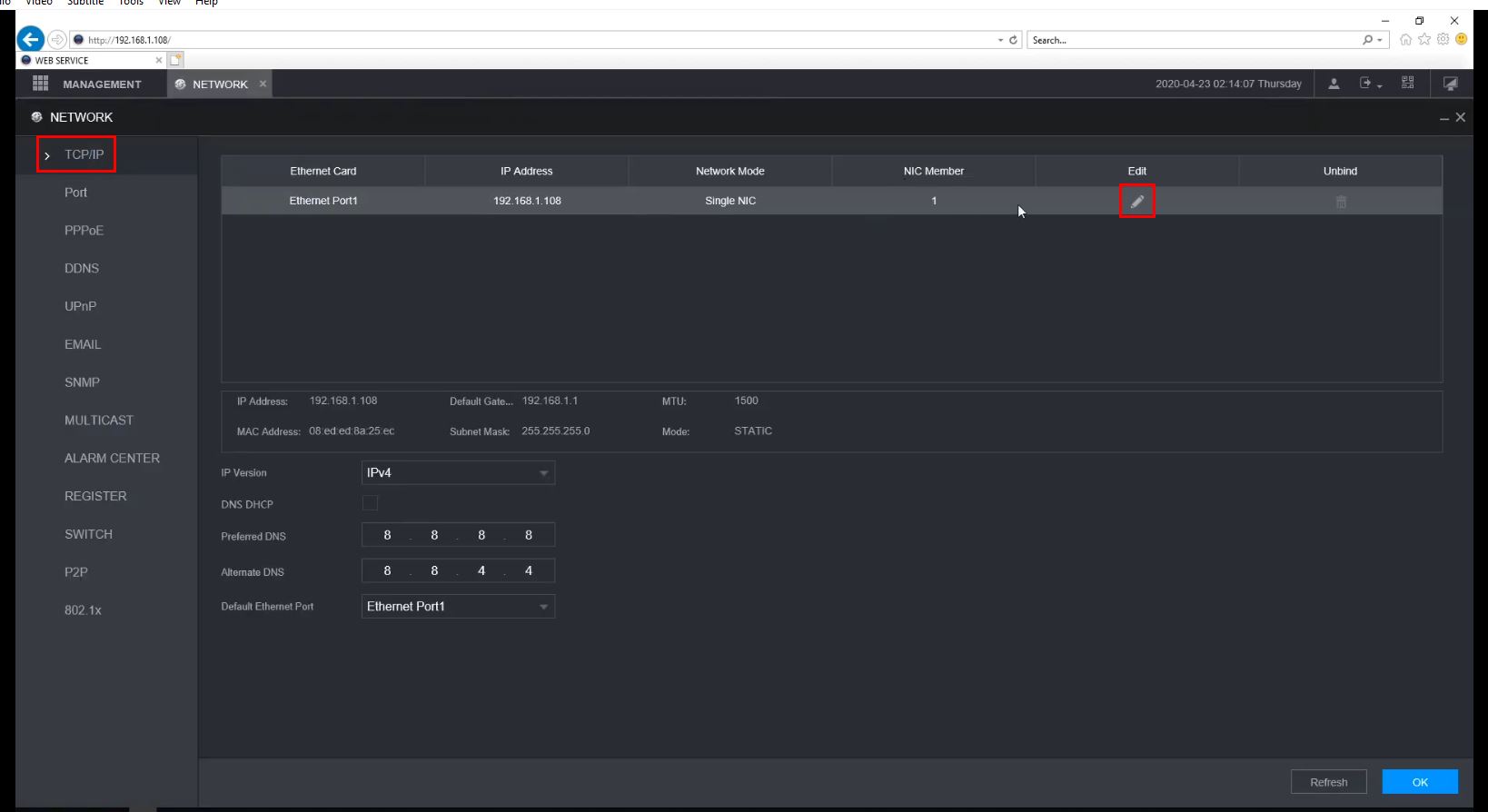

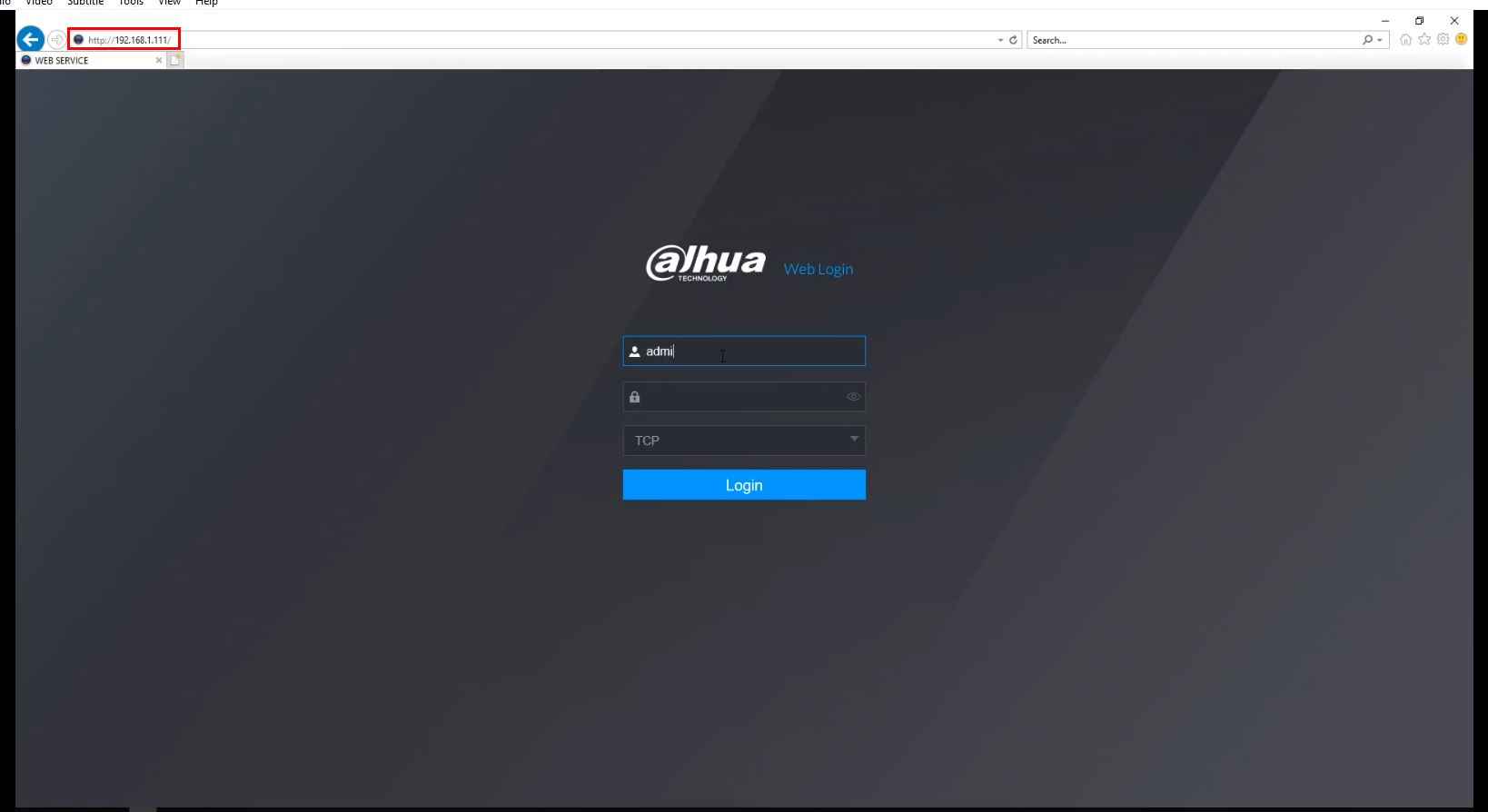

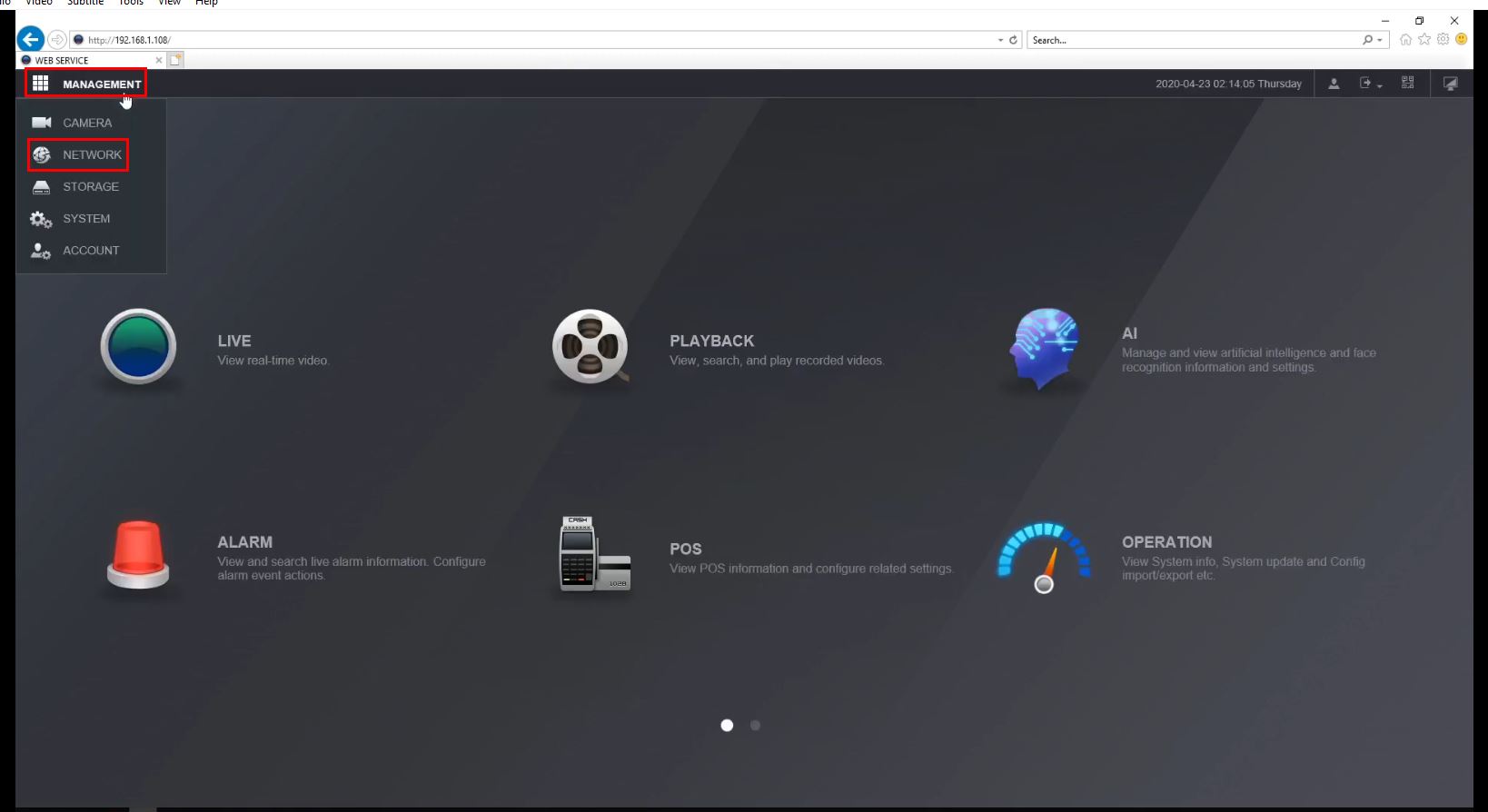

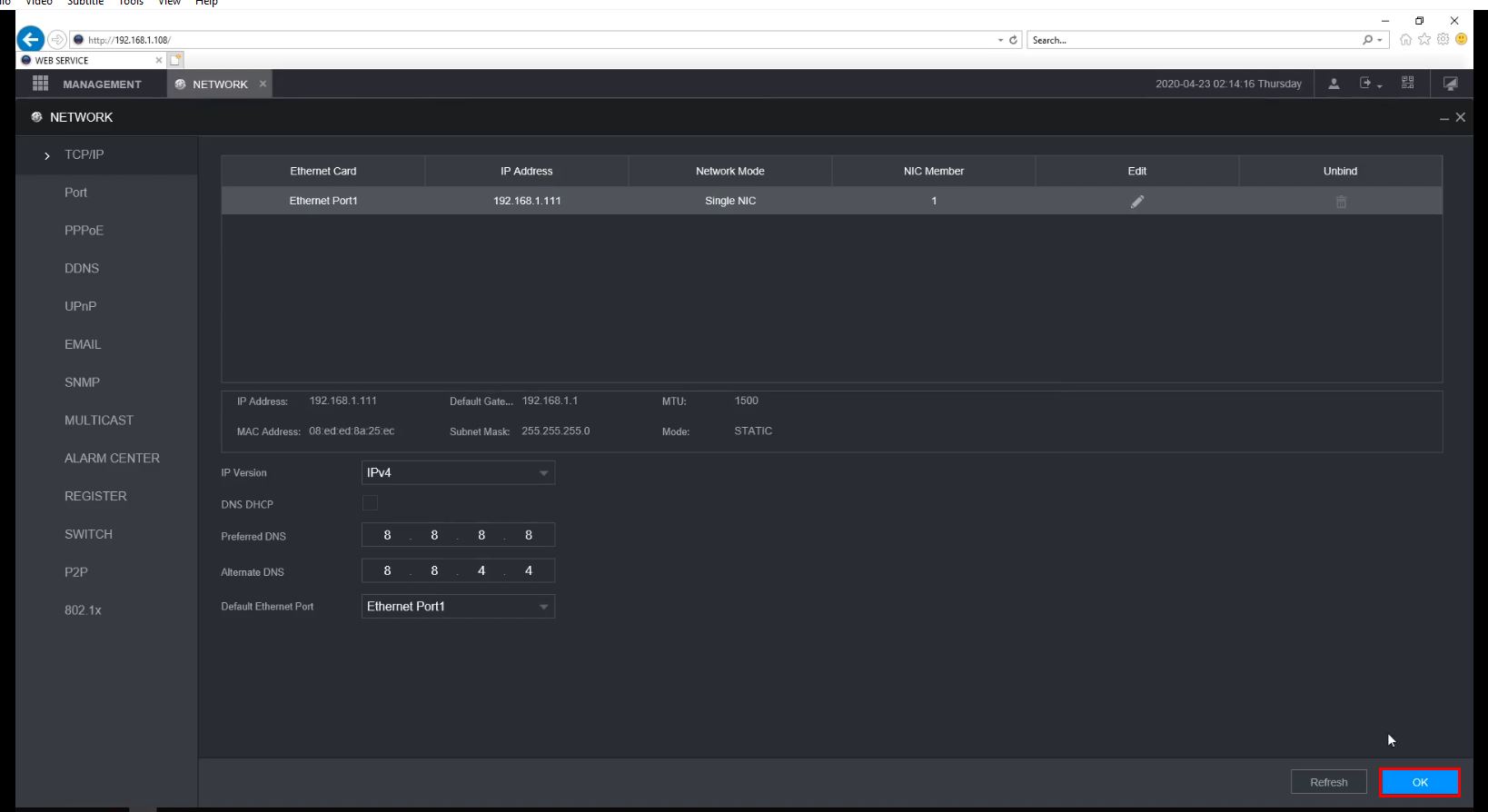

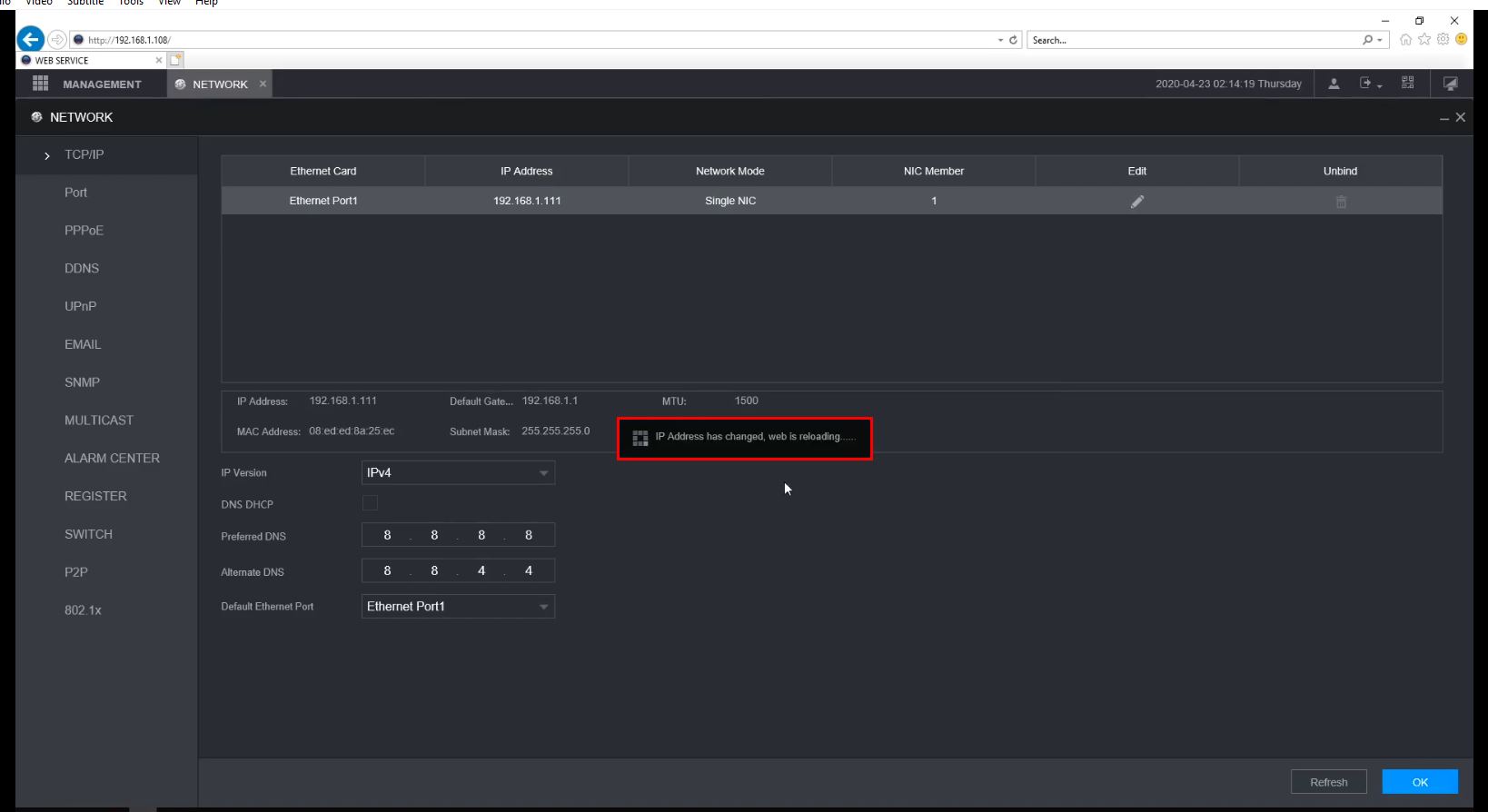

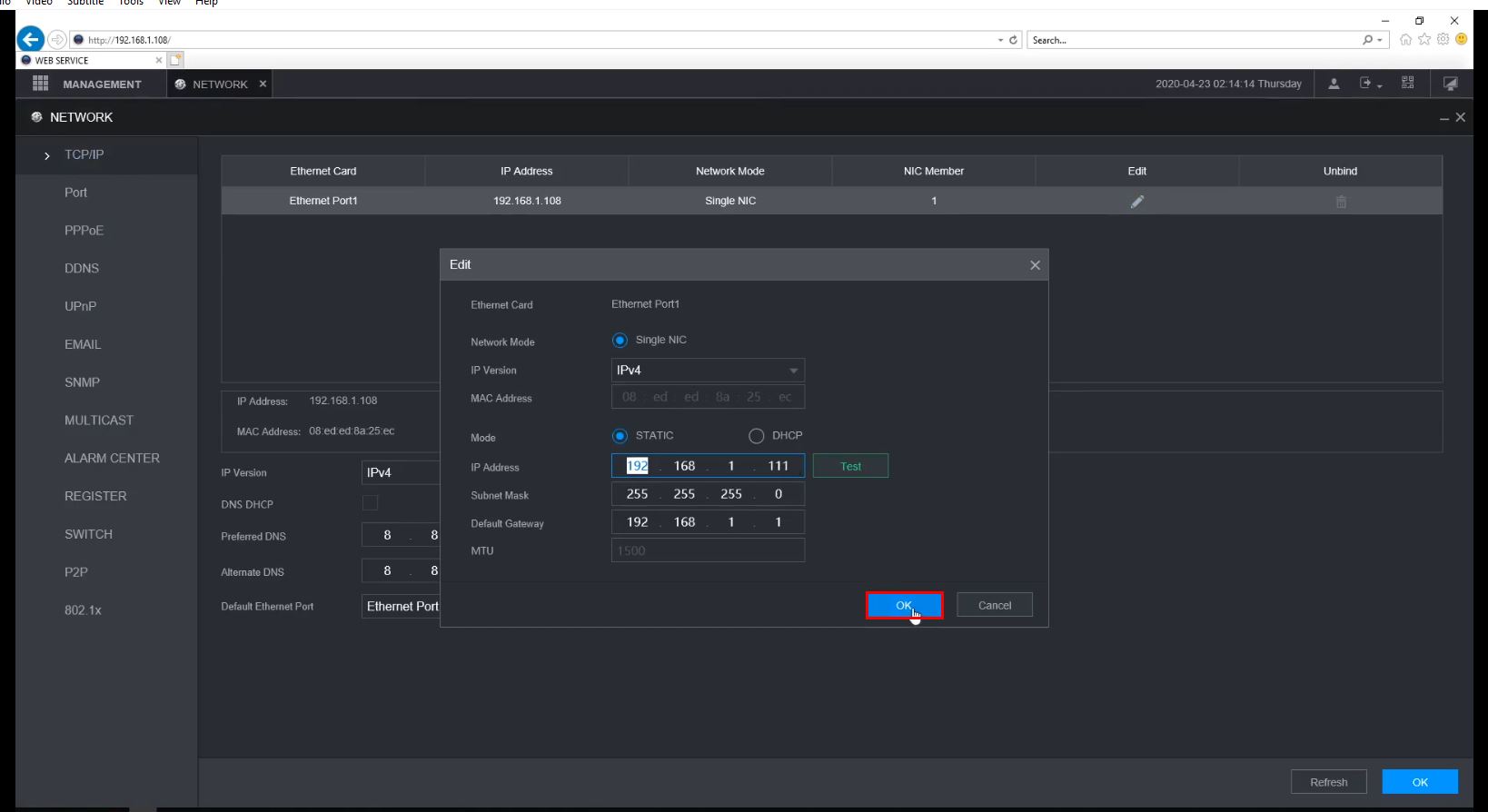

Edit Network (TCP/IP) Information
