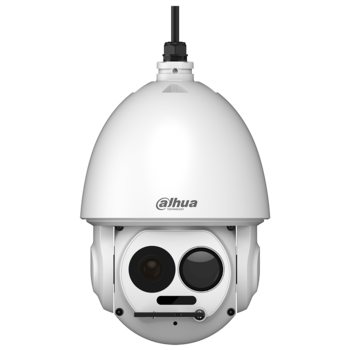

DH-TPC-SD8420N-B
| Specifications | Quick Start Guide | Manual | Firmware | Movement Firmware |
|---|---|---|---|---|
Build Date: 10-29-2018
|
Build Date: 10-16-2018
|
| Series: | Ultra |
| Body: | Thermal PTZ |
| Image Sensor: | Thermal Camera: Uncooled VOx Microbolometer Visible Camera: 1/1.9-in. Progressive-scan CMOS |
| Resolution: | Thermal Camera: 400(H) x 300(V)
|
| Angle of View: | Thermal Camera: 25 mm - Horizontal: 15.5°, Vertical: 11.6° 50 mm - Horizontal: 7.7°, Vertical: 5.8° Visible Camera: Horizontal: 59° to 2.4° |
| Lens Type: | Thermal Camera: Fixed Visible Camera: Varifocal |
| Focal Length: | Thermal Camera: 25 mm or 50 mm Visible Camera: 6 mm to 180 mm |
| Min. Illumination: | Visible Camera: Color: 0.001 lux at F1.5 B/W: 0.0001 lux at F1.5 0 lux with IR On |
| Day/Night: | Auto (ICR), Color, B/W |
| Max. IR Range: | Visible Camera: Up to 150.0 m (492.17 ft) |
| Video Compression: | H.264, MJPEG |
| Audio Compression: | G.711a, G.711Mu, AAC |
| Temperature Measurement Range: |
-40°C to +70°C (-40° F to +158° F) |
| Audio In: | One (1) Channel, RCA |
| Audio Out: | One (1) Channel, RCA |
| Memory Slot: | Micro SD Slot, maximum 128 GB |
| Alarm In: | Seven (7) Channels |
| Alarm Out: | Two (2) Channel |
| IP Rating: | 66 |
| IK Rating: | - |
| Operating Temp: | -40° C to +70° C (-40° F to +158° F) Less than 95% RH |
| Power: | 24 VAC, 3 A (±15%) < 38 W |
Features
- 400 x 300 VOx Uncooled Thermal Sensor Technology
- Athermalized Lens, Focus-free
- 25 mm or 50 mm Fixed Thermal Lens Options
- < 40 mK Thermal Sensitivity Visible-light Camera
- 1/1.9-in. 2MP Progressive-scan CMOS Sensor
- Powerful 30x Optical Zoom
- Starlight+ Technology System Features
- Intelligent Video System with Fire Detection and Alarm Functionality
- Designed for Extreme Temperature Environments
- IP66 Ingress Protection
- Five-year Warranty*
Specifications
