EoC
Diagram
| Pin | Pair | Wire | Color |
|---|---|---|---|
| 1 | 2 | 1 |  white/orange
|
| 2 | 2 | 2 |  orange
|
| 3 | 3 | 1 |  white/green
|
| 4 | N/A | N/A | EMPTY |
| 5 | N/A | N/A | EMPTY |
| 6 | N/A | N/A |  green
|
| 7 | N/A | N/A | EMPTY |
| 8 | N/A | N/A | EMPTY |

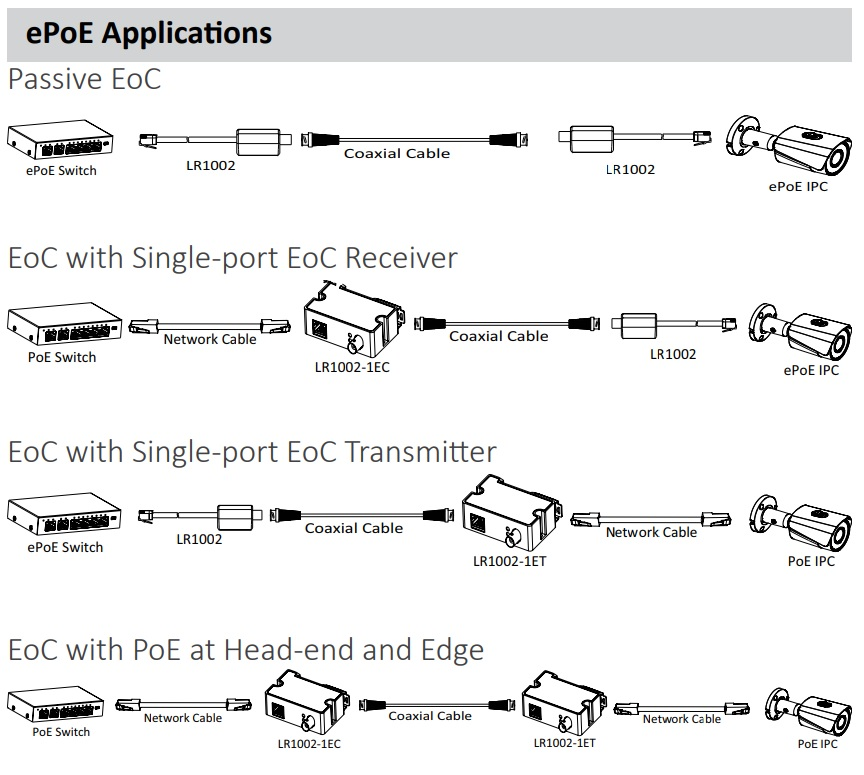

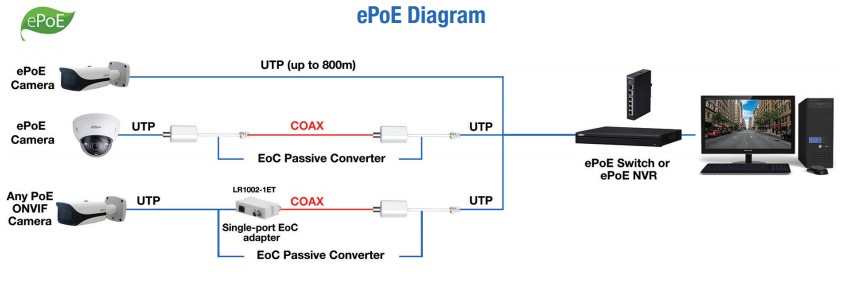

Infographs
.png)
