Revision as of 20:25, 29 November 2022

Wireless Point to Point

NOTE

• DO NOT MIX GENERATION 1 and GENERATION 2 DEVICES!
• Access point broadcasts the SSID, and the base station(s) connect to the access point.

Networking Mode

Point to Point

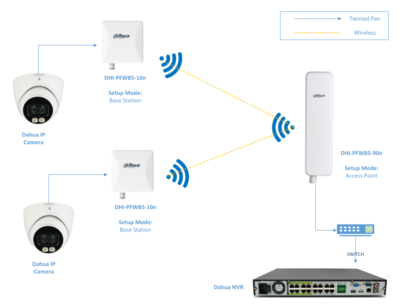

Point to Multipoint

Information

• 192.168.1.36 is default IP
• Default User Name = admin
• Default Password = admin
• DHI-PFWB5-10n, Station, square unit, satellite
• DHI-PFWB5-90n, Access Point, long skinny unit, Home Base

Operating Modes

802.11n:

• Access Point (autoWDS),
• Access Point (TDMA 2)
• Access Point (TDMA 3)
• Station (WDS/TDMA 2/TDMA 3)
• Station (ARPNAT)

802.11ac:

• Access Point (autoWDS)
• Access Point (TDMA3)
• Station (WDS/TDMA 3)

How to reset the DH-PFWB5-10n and DH-PFWB5-90n

• Make sure the unit is connected to the POE unit that is included in the package.

• Press the reset button for 15 seconds. You will see the LED on the side of the device flash.

Video Instructions for Wireless Transmission Device DH-PFWB5-90n

Step by Step Instruction for Wireless Transmission Device DH-PFWB5-90n

• It is best to setup these devices on a bench before installing them.
• Power on and Configure one device at a time, they all have the same default IP address.
• Always use the included POE injector on all configurations.
• What is in the BOX - DH-PFWB5-90n.

• 1. Give your PC a IP address of 192.168.1.200
• 2. Connect to the DH-PFWB5-90n to your PC using a patch cable.
• 3. ping the IP address of the DH-PFWB5-90n (192.168.1.36) to make sure it is alive.
• 4. Using IE or Chrome type the IP address on a browser.
• 5. Login screen.

• 6 Main Menu

• Setup, Wireless Configuration.
• 7. Enable the radio button.
• 8. Operation Mode "Access Point (WDS/TDMA 2/TDMA 3)"
• 9. Wireless Station Settings, SSID and Security.

• 10. Network Configuration, Bridge mode
• 11. Assigned a static IP, DNS and Subnet mask.

• 12. Information Screen.
• 13. Here you can see that the device is online, SSID, IP.

• Congratulation your device is online.

Video Instructions for Wireless Transmission Device DH-PFWB5-10n

Step by Step Instruction for Wireless Transmission Device DH-PFWB5-10n

• It is best to setup these devices on a bench before installing them.
• Power on and Configure one device at a time, they all have the same default IP address.
• Always use the included POE injector on all configurations.
• What is in the BOX - DH-PFWB5-10n.

• 1. Give your PC a IP address of 192.168.1.200
• 2. Connect to the DH-PFWB5-10n to your PC using a patch cable.
• 3. ping the IP address of the DH-PFWB5-10n (192.168.1.36) to make sure it is alive.
• 4. Using IE or Chrome type the IP address on a browser.
• 5. Login screen.

• 6 Main Menu

• Setup, Wireless Configuration.
• 7. Enable the radio button.
• 8. Operation Mode "Station (WDS/TDMA 2/TDMA 3)"
• 9. Wireless Station Settings, SSID and Security.

• 10. Network Configuration, Bridge mode
• 11. Assigned a static IP, DNS and Subnet mask.

• 12. Information Screen.
• 13. Here you can see that the device is online, SSID, IP.

• Congratulation your device is online.

Instructions

• How to Update Firmware
• How to Reset Dahua V-Radio Wireless Bridge Using Reset Tool
