USA/HDCVI/Camera/Pro/DH HAC HDBW22A1EN
DH-HAC-HDBW22A1EN-2.8MM, 3.6MM, 6MM
| Specifications | Manual |
|---|---|
| Series: | Pro |
| Image Sensor: | 1/2.7" 2MP CMOS |
| Lens: | 2.8MM, 3.6MM, 6MM |
| Resolution: | 1080P |
| H Field of View: | 90°(115.6°/59.4°) |
| Day/Night: | ICR |
| Min. Illumination: | 0.03Lux/F2.0, 0Lux IR on |
| Max. IR Range: | 30m, Smart IR |
| OSD Menu: | Multi-language |
| WDR: | 120dB True WDR |
| Noise Reduction: | 2D/3D |
| FPS: | 30fps@1080P; 30/60fps@720P |
| Video Output: | HD/SD Dual-output |
| Audio In: | - |
| Alarm In: | - |
| Alarm Out: | - |
| Pan/Tilt/Rotation: | 0°~355°/0°~65°/0°~355° |
| IP Rating: | 67 |
| IK Rating: | 10 |
| Working Temp: | -30°C~+60°C |
| Power: | DC12V±25%; Max 4.5W |
| Firmware: | URL |
Features
- 1/2.7" 2.1Megapixel CMOS
- 25/30fps@1080P, 25/30/50/60fps@720P
- High speed, long distance real-time transmission
- HD and SD dual-output
- OSD Menu, control over coaxial cable
- WDR(120dB), Day/Night(ICR), AWB, AGC, BLC, 3DNR
- 3.6mm fixed lens (2.8mm, 6mm optional)
- Max. IR LEDs length 30m, Smart IR
- IP67, IK10, DC12V
CAD Images
FOV
Camera Height: 10m
Focal Length: 2.8mm
Target Horizontal Dist: 47.6m
Camera Height: 10m
Focal Length: 3.6mm
Target Horizontal Dist: 61.7m
Camera Height: 10m
Focal Length: 6mm
Target Horizontal Dist: 103.7m
Compatible Accessories
| Accessories Combo 1 |  PFA136
| |
| Accessories Combo 2 |  PFB203W
| |
| Accessories Combo 3 | PFA136
|
 PFA150
|
| Accessories Combo 4 | PFB203W
|
 PFA152
|
| Accessories Combo 5 | PFA136
|
 PFA151
|

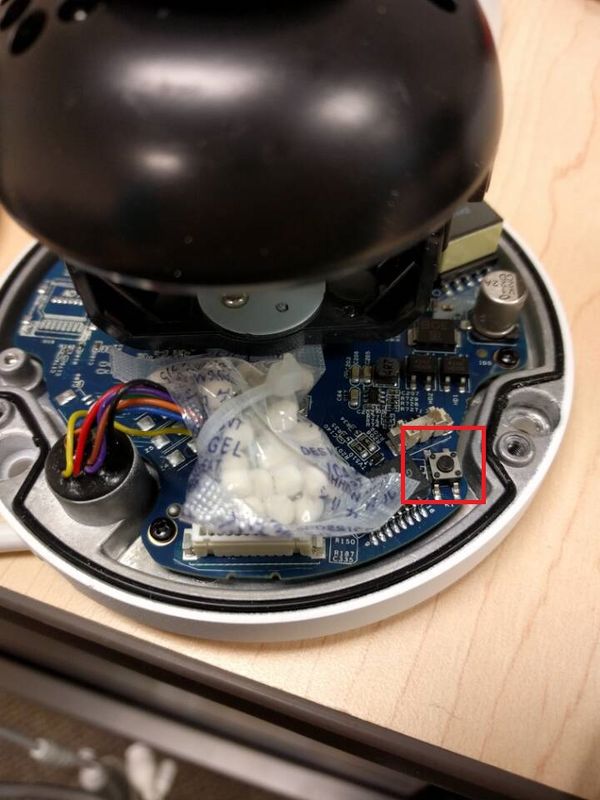

Reset Button
