How to Access System Using P2P via Mobile Application

  1. Click, "Camera"

20151019 224945000 iOS.png

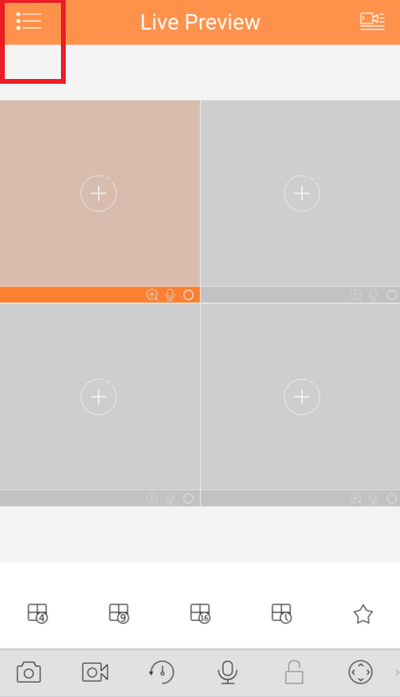

  1. Select the Menu Icon

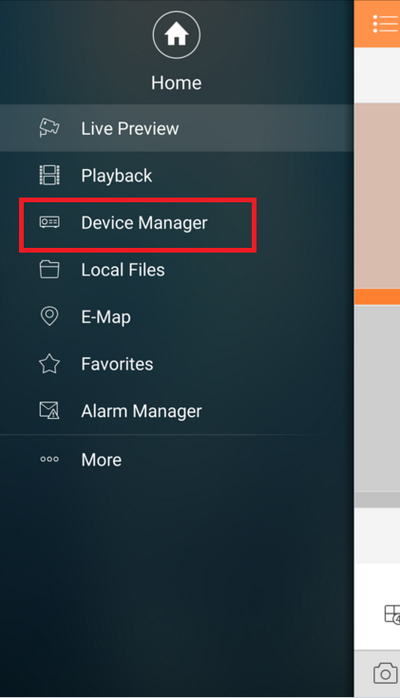

  1. Select "Device Manager"



    • Select the Add Icon



    • Select "P2P"

20151019 224945000 iOS.png


  1. Name Device > Scan in QR code for SN number which you can access from the physical recorder under the main menu → Setting → Network → P2P. You may input SN number manually which can also be found under the recorder. → Enter Username and Password. For best results , leave Live Preview and Playback on the Extra Stream.

20151019 224945000 iOS.png


  1. Select the Disk Icon to save → Select Live Preview At which time the app will connect to all cameras.

20151019 224945000 iOS.png
