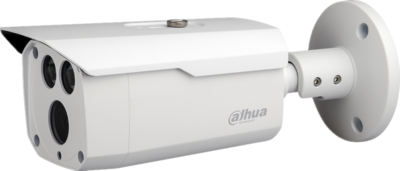

HAC-HFW1100D
Features
- The parameters and datasheets below can only be applied to 1100-S3 series
- Max 30fps@720P
- HD and SD output swtichable
- 3.6mm fixed lens (6mm, 8mm optional)
- Max. IR length 80m, Smart IR
- IP67, DC12V
Specifications
|
Camera | |
|
Image Sensor |
1/3" CMOS |
|
Effective Pixels |
1280(H)×720(V), 1MP |
|
Scanning System |
Progressive |
|
Electronic Shutter Speed |
PAL: 1/25~1/100000s NTSC: 1/30~1/100000s |
|
Minimum Illumination |
0.05Lux/F2.0, 0Lux IR on |
|
S/N Ratio |
More than 65dB |
|
IR Distance |
Up to 80m (262feet) |
|
IR On/Off Control |
Auto / Manual |
|
IR LEDs |
2 |
|
Lens | |
|
Lens Type |
Fixed lens / Fixed iris |
|
Mount Type |
Board-in |
|
Focal Length |
3.6mm (6mm, 8mm Optional) |
|
Max Aperture |
F2.0 |
|
Angle of View |
H: 72.3°(46°/34.8°) |
|
Focus Control |
N/A |
|
Close Focus Distance |
500mm (1300mm/2600mm)
|
|
Pan / Tilt / Rotation | |
|
Pan/Tilt/Rotation |
Pan: 0° ~ 360° Tilt: 0° ~ 87° Rotation: 0° ~ 360° |
|
Video | |
|
Resolution |
720P (1280×720) |
|
Frame Rate |
25/30fps@720P |
|
Video Output |
1-channel BNC high definition video output / CVBS video output (Can switch) |
|
Day/Night |
Auto (ICR) / Manual |
|
OSD Menu |
Multi-language |
|
BLC Mode |
BLC / HLC / DWDR |
|
WDR |
DWDR |
|
Gain Control |
AGC |
|
Noise Reduction |
2D |
|
White Balance |
Auto / Manual |
|
Smart IR |
Auto / Manual |
|
Certifications | |
|
Certifications |
CE (EN55032, EN55024, EN50130-4) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1) |
|
Interface | |
|
Audio Interface |
N/A |
|
Eelectrical | |
|
Power Supply |
12V DC ±25% |
|
Power Consumption |
Max 4.6W (12V DC, IR on) |
|
Environmental | |
|
Operating Conditions |
-40°C ~ +60°C (-40°F ~ +140°F) / Less than 90% RH
|
|
Storage Conditions |
-40°C ~ +60°C (-40°F ~ +140°F) / Less than 90% RH |
|
Ingress Protection &Vandal Resistance |
IP67 |
|
Construction | |
|
Casing |
Aluminium |
|
Dimensions |
241.8mm×90.4mm×90.4mm (9.52"×3.56"×3.56") |
|
Net Weight |
0.64kg (1.41lb) |
|
Gross Weight |
0.77kg (1.70lb) |
