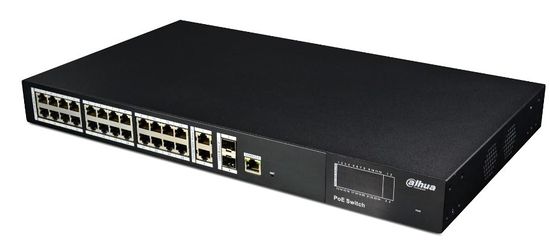

DH-PFS4228-24P-370
Features
- Two-layer network management PoE switch
- Support IEEE802.3af, IEEE802.3at standard
- Support spanning tree protocol STP/RSTP
- Conform IEEE802.3, IEEE802.3u, IEEE802.3ab/z and IEEE802.3X standards
- Support one-key recovery of IP address & user password
Specifications
| Model | PFS4228-24P-370 |
| Ethernet ort | 2*10/100/1000 Base-T、 2*1000 Base-X、 24*10/100 Base-T（PoE power supply） |
| PoE Power Consumption | Each power ≤30W，Total≤370W |
| PoE protocol | IEEE802.3af、 IEEE802.3at |
| Switching Capacity | 24.8G |
| Packet Forwarding Rate | 9.52Mpps |
| Humidity | 10%－90% |
| Power | AC 100～２40V |
| Lightning Protection | Common Mode 2KV Differential Mode 1KV |
| Working Temperature | ﹣10℃～55℃ |
| Weight | 3.73kg |
| Dimension(W×D×H) | 442mm x263mm x44.5mm |
Service Characteristics
| Model | DH-PFS4228-24P-370 |
| System | Username / password: admin/admin |
| IP Address :192.168.1.200/24 | |
| PoE Budget | 370W |
| MAC Table | 16K |
| VLAN | Port-based VLAN |
| 802.1Q Standard VLAN | |
| Spanning Tree | STP |
| RSTP | |
| Port Aggregation | Link aggregation |
| Mirroring | Support many-to-one port mirroring |
| Flow Control | Support half-duplex based on back pressure type control; |
| Support full duplex based on PAUSE frame; | |
| Multicast | IGMP Snooping |
| Security Features | Hardware supports IP+MAC binding based on port; |
| Support IEEE802.1x port authentication | |
| System Maintenance | Support the configuration file upload/download |
| Support the updated packet upload | |
| Support system logs | |
| Network Management | WEB(http and https protocol) |
