USA/HDCVI/Camera/Pro/A22CFAZ

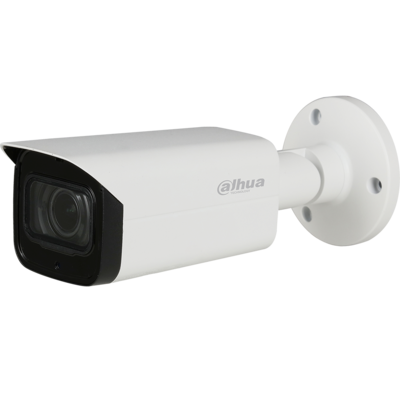

A22CFAZ
Features
- 1/2.8-in. 2 MP Progressive-scan CMOS Sensor
- 2 MP (1920 x 1080) at 30 fps Maximum Resolution
- 2.7 mm to 13.5 mm Motorized Lens
- Starlight Technology for Low-light Applications
- True Wide Dynamic Range (120 dB) and 2D/3D Noise Reduction
- Supports Multiple Video Formats: HDCVI, CVBS, AHD and TVI
- Built-in Microphone
- HD or SD Output, Switchable
- Maximum IR Length 80 m (262 ft), Smart IR
- IP67 Ingress Protection
- Five-year Warranty (for products sold through an authorized Dahua dealer)
Images
FOV
Specifications
Camera | |
---|---|
Image Sensor | 1/2.8-in. CMOS Sensor |
Effective Pixels | 1920 (H) x 1080 (V), 2 MP |
Scanning System | Progressive |
Electronic Shutter Speed | 1/3 s to 1/100,000 s |
Minimum Illumination | Color: 0.004 lux at F1.6, 30 IRE
0 lux at F1.6 with IR On |
S/N Ratio | More than 65 dB |
IR Distance | Up to 80.0 m (262.47 ft) |
IR Control | Auto, Manual |
IR LEDs | Four (4) |
Lens | |
Lens Type | Motorized Lens, Fixed Iris |
Mount Type | Board-in |
Focal Length | 2.7 mm to 13.5 mm |
Maximum Aperture | F1.6 |
Angle of View | Horizontal: 108.7° to 28.7° |
Close Focus Distance | 200.0 mm (7.87 in.) |
Installation Angle
Range |
Pan: 0° to 360°
Tilt: 0° to 90° Rotation: 0° to 360° |
