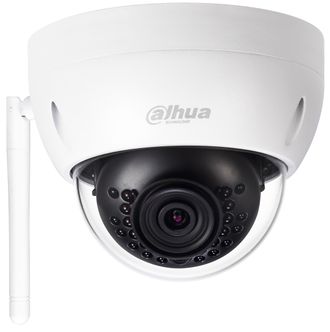

DH-IPC-HDBW13A0EN-W
Features
- WiFi IEEE802.11b/g/n
- Max 20fps@3MP & 30fps@1080p
- DWDR
- True Day/Night
- Fixed Lens Options 2.8mm and 3.6mm
- Smart IR 30m (98ft)
- Outdoor Rated IP67
- Vandal Resistant IK10
Specifications
| DH-IPC-HDBW13A0EN-W | |
| Camera | |
| Image Sensor | 1/3" CMOS |
| Effective Pixels | 2304 (H) x 1536 (V) |
| ROM / RAM | 16MB / 256MB |
| Scanning System | Progressive |
| Electronic Shutter Speed | 1/1 ~ 1/100,000s |
| Minimum Illumination | Color: 0.1 Lux@F2.0; |
| B/W: 0.01 Lux@F2.0; | |
| 0 Lux (IR on) | |
| S/N Ratio | More than 50dB |
| IR Distance | Distance Up to 30m (98ft) |
| IR On/Off Control | Auto / Manual |
| IR LEDs | 24 |
| Lens | |
| Lens Type | Fixed |
| Mount Type | Board-in |
| Focal Length | 2.8mm / 3.6mm options |
| Max Aperture | F2.0 / F2.0 |
| Angle of View | H: 100° / 77° |
| Focus Control | Manual |
| Axis | |
| Pan/Tilt Range | Pan: 0° ~ 355°; Tilt: 0° ~ 65°, Rotation：0° ~ 355° |
| Video | |
| Compression | H.264/MJPEG |
| Streaming Capability | 2 Streams |
| Resolution | 3MP (2304×1296) / 1080p (1920×1080) / 720p (1280×720) / VGA (640×480) / QVGA (320×240) |
| Frame Rate | Main Stream 3MP (1 ~ 20fps) / 1080p (1 ~ 30fps) |
| Sub Stream 1 VGA (1 ~ 30fps) | |
| Bit Rate Control | CBR / VBR |
| Bit Rate | H.264: 32K ~ 8192Kbps |
| Day/Night | Auto (ICR) / Color / B/W |
| BLC Mode | BLC / HLC / DWDR |
| White Balance | Auto / Sunny / Night / Outdoor / Customized |
| Gain Control | Auto / Manual |
| Noise Reduction | 3D DNR |
| Motion Detetion | Off / On (4 Zone, Rectangle) |
| Region of Interest | Off / On (4 Zone) |
| Smart IR | Support |
| Digital Zoom | 16x |
| Flip | 0°/90°/180°/270° |
| Mirror | Off / On |
| Privacy Masking | Off / On (4 Area, Rectangle) |
| Network | |
| Ethernet | RJ-45 (10/100Base-T) |
| Wi-Fi | Wi-Fi (IEEE802.11b/g/n) 50m (open field) |
| Protocol | IPv4/ IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x |
| Interoperability | ONVIF, CGI |
| Streaming Method | Unicast / Multicast |
| Max. User Access | 20 |
| Web Viewer | IE10…. |
| Management Software | Smart PSS, DSS |
| Smart Phone | Android, Ios |
| Certifications | |
| Certifications | FCC (SEFD1509190-B ) |
| UL (E234884-A60-UL) | |
| Electrical | |
| Power Supply | 12V DC ±25%, PoE (af Class 0) |
| Power Consumption | Max. 4.0W (12V DC, IR On), |
| Max. 4.7W (PoE, IR On) | |
| Environmental | |
| Operating Conditions | -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH |
| Storage Conditions | |
| -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH | |
| Ingress Protection & Vandal Resistance | IP67, IK10 |
| 'C'onstruction | |
| Casing | Metal |
| Dimensions | Φ110mm × 81mm (4.33" x 3.19") |
| Net Weight | 0.38Kg (0.84lb) |
| Gross Weight | 0.44Kg (0.97lb) |
