NVR Interface-Setting-Storage

Schedule

Record

The record type priority is: Alarm>Motion>Regular

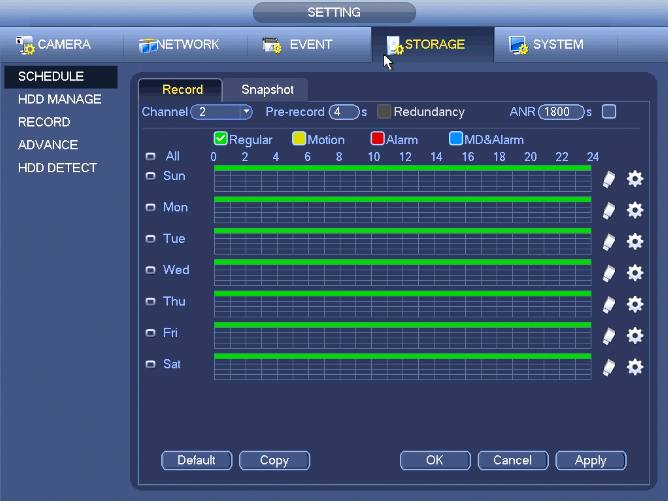

Schedule Record

Set record time, record plan and etc. Please note system is in 24-hour record by default after its first boot up.

In the main menu, from Main menu->Setting->Storage->Schedule, you can go to schedule menu. See Figure 4‑55. There are total six periods.

• Channel: Please select the channel number first. You can select “all” if you want to set for the whole channels.
• : Sync connection icon. Select icon of several dates, all checked items can be edited or together. Now the icon is shown as
• : Click it to delete a record type from one period.
• Record Type: Please check the box to select corresponding record type. There are four types: Regular/MD (motion detect)/Alarm/MD&Alarm.
• Week day: There are eight options: ranges from Saturday to Sunday and all.
• Holiday: It is to set holiday setup. Please note you need to go to the General interface (Main Menu->Setting->System->General) to add holiday first. Otherwise you can not see this item.
• Pre-record: System can pre-record the video before the event occurs into the file. The value ranges from 1 to 30 seconds depending on the bit stream.
• Redundancy: System supports redundancy backup function. It allows you backup recorded file in two disks. You can highlight Redundancy button to activate this function. Please note, before enable this function, please set at least one HDD as redundant. (Main menu->Setting->Storage->HDD Manager). Please note this function is null if there is only one HDD.
• ANR: It is to save video to the SD card of the network camera in case the network connection fails. The value ranges from 0s～ After the network connection resumed, the system can get the video from the SD card and there is no risk of record loss.
• Period setup: Click button after one date or a holiday, you can see an interface shown as in Figure 4‑56.There are four record types: regular, motion detection (MD), Alarm, MD & alarm.

Snapshot

HDD Manage

Here you can view HDD information such as type, status, total capacity, record time and etc. The operation includes format, resume from error, change HDD property (Read write, Read-only). Here you can also set alarm and HDD storage position.

1. Select a HDD and then select format from the dropdown list. Click Execute button.
2. Click OK button to complete the setup. You can see system needs to restart to activate current setup.

Record

Advance

It is to set HDD group, and HDD group setup for main stream, sub stream and snapshot operation

Important:HDD group and quota mode can not be valid at the same time. System needs to restart once you change the mode here.

HDD

• HDD: Here you can view the HDD amount the device can support.
• Group: It lists the HDD Group number of current hard disk.

Main Stream

Please select the correspond group from the dropdown list and then click Apply button.

Click main stream/sub stream/snapshot button to set corresponding HDD group information.

Sub Stream

Snapshot

HDD Detect

Note: This function is for some series product only.

Detect

The HDD detect function is to detect HDD current status so that you can clearly understand the HDD performance and replace the malfunction HDD.

There are two detect types:

• Quick detect is to detect via the universal system files. System can quickly complete the HDD scan. If you want to use this function, please make sure the HDD is in use now. If the HDD is removed from other device, please make sure the write-data once was full after it installed on current device.
• Global detect adopts Windows mode to scan. It may take a long time and may affect the HDD that is recording.

Report

After the detect operation, you can go to the detect report to view corresponding information.
