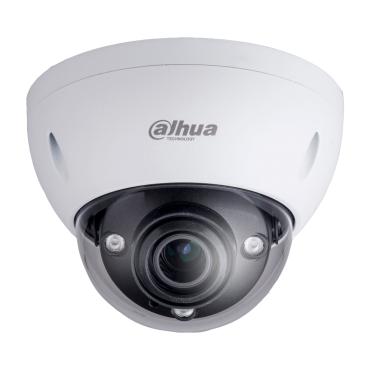

N25BL5Z


Features

  • 1/2.8-in. 2 MP Progressive Scan Exmor CMOS
  • Smart H.265+ and H.264
  • Starlight Technology for Ultra-low Light Sensitivity
  • 60 fps @ 1080p (1920 x 1080)
  • Smart Detection Supported
  • True Wide Dynamic Range (120 dB) and Day/Night IR Cut Filter
  • 2.7 mm to 12 mm Motorized Lens
  • Alarm and Audio Inputs/Outputs
  • Max. IR LED Length 50 m (164 ft)
  • Micro SD Memory, IP67, PoE

Specifications

Camera
Image Sensor 1/2.8-in. 2 MP Progressive Scan CMOS
Effective Pixels 1920(H) x 1080(V)
RAM/ROM 256 MB / 32 MB
Scanning System Progressive
Minimum Illumination Color: 0.006 lux at F1.4
  B/W: 0 lux at F1.4 (IR on)
S/N Ratio More than 50 dB
IR Distance Distance up to 50 m (164.04 ft)
IR On/Off Control Auto / Manual
IR LEDs Three (3)
Lens
Lens Type Motorized / Auto Iris (DC)
Mount Type Board-in
Focal Length 2.7 mm to 12 mm
Max. Aperture F1.4
Angle of View Horizontal: 97° to 34°
  Vertical: 52° to 20°
Optical Zoom 4x
Focus Control Motorized
Close Focus Distance 0.30 m (0.98 ft)
Pan/Tilt/Rotation
Range Pan: 0˚ to 355˚
  Tilt: 0˚ to 65˚
  Rotation: 0˚ to 355˚
Intelligence
IVS Tripwire, Intrusion, Abandoned/Missing Object
Advanced Intelligent  Functions Face Detection
Video
Compression Smart H.265+ / H.265 / Smart H.264+ / H.264
Streaming Capability Three (3) Streams
Resolution 1080p (1920 x 1080), 1.3 MP (1280 x 960),
  720p (1280 x 720), D1 (704 x 480),
  VGA (640 x 480), CIF (352 x 240)
Frame Rate Main Stream: 1080p (1 to 60 fps)
  Sub Stream 1: D1 (1 to 60 fps)
  Sub Stream 2: 1080p (1 to 30 fps)
Bit Rate Control CBR/VBR
Bit Rate H.264: 24 to 9472 Kbps
  H.265: 14 to 5632 Kbps
Day/Night Auto (ICR) / Color / B/W
BLC Mode BLC / HLC / WDR (120 dB)
White Balance Auto / Natural / Street Lamp / Outdoor / Manual
Gain Control Auto / Manual
Noise Reduction 3D DNR
Motion Detection Off / On (4 Zone, Rectangle)
Region of Interest Off / On (4 Zone)
Smart IR Support
Digital Zoom 16x
Flip 0° / 90° / 180° / 270°
Mirror Off / On
Privacy Masking Off / On (4 Area, Rectangle)
Audio
Compression G.711a / G.711Mu / AAC / G.726
Network
Ethernet RJ-45 (10/100 Base-T)
Protocol HTTP; HTTPs; TCP; ARP; RTSP; RTP; UDP; SMTP;
  FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; QoS;
  UPnP; NTP; Bonjour; 802.1x; Multicast; ICMP;
  IGMP; SNMP
Interoperability ONVIF, PSIA, CGI
Streaming Method Unicast / Multicast
Max. User Access 10 Users / 20 Users
Edge Storage NAS
  Local PC for Instant Recording
  MicroSD Card, maximum 128 GB
Web Viewer IE, Chrome, Firefox, Safari
Management Software Smart PSS, DSS
Mobile Operating System IOS, Android
Certifications
Safety UL60950-1
Electromagnetic Compatibility FCC Part 15 Subpart B
Interface
Audio Interface In: One (1) Channel
  Out: One (1) Channel
Alarm In: One (1) Channels
  Out: One (1) Channel
Electrical
Power Supply DC12V, AC24V, PoE (802.3af, Class 0)
Power Consumption < 12.5 W
Environmental
Operating Conditions -30° C to +60° C (-22° F to +140° F),
  Less than 95% RH
Storage Conditions -30° C to +60° C (-22° F to +140° F),
  Less than 95% RH
Ingress Protection IP67
Vandal Resistance IK10
Construction
Casing Metal
Dimensions Φ159.10 mm x 117.90 mm (Φ6.26 in. x 4.64 in.)
Net Weight 0.89 kg (1.96 lb)
Gross Weight 1.13 kg (2.49 lb)
