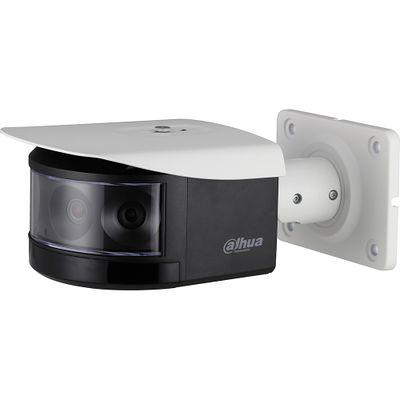

DH-IPC-PFW8800N-A180

Features

• Four (4) 1/2.8-in. 2 MP Progressive Scan STARVIS™ CMOS Imagers
• Triple-stream Encoding with Smart H.265+ Compression
• Maximum Resolution: 4096 x 1800 at 25 fps
• Supports 180° Panoramic View
• Day/Night (ICR), 3DNR, AWB, AGC, BLC
• Intelligent Video System
• Maximum IR LED Distance 30 m (98 ft)
• IP67 Ingress Protection and IK10 Vandal Resistance
• PoE+ Support

Specifications

Technical	Camera
	Image Sensor	Four (4) 1/2.8-in. 2 MP STARVIS™ CMOS Sensors
	Effective Pixels	4096(H) x 1800(V)
	RAM/ROM	1024 MB / 128 MB
	Scanning System	Progressive
	Electronic Shutter Speed	Auto, Manual: 1/3 s to 1/100,000 s
	Minimum Illumination	Color: 0.007 lux at F2.0 (1/3 s, 30 IRE)
		Color: 0.05 lux at F2.0 (1/30 s, 30 IRE)
		0 lux at F2.0 with IR on
	S/N Ratio	More than 50 dB
	IR Distance	Up to 30.0 m (98.43 ft)
	IR On/Off Control	Auto, Manual
	IR LEDs	Eight (8)
	Lens
	Lens Type	Fixed
	Mount Type	Board-in
	Focal Length	3.0 mm
	Max. Aperture	F2.0
	Angle of View	Horizontal: 180˚
	Vertical: 80˚
	Focus Control	Fixed
	DORI Distance¹
	Detect (8 ppf)	41 m (135 ft)
	Observe (19 ppf)	16 m (53 ft)
	Recognize (38 ppf)	8 m (26 ft)
	Identify (76 ppf)	4 m (13 ft)
	Pan/Tilt/Rotation
	Range	Pan: 0˚ to360˚
		Tilt: 0˚ to 90˚
		Rotation: 0˚ to 360˚
	Video
	Compression	Smart H.265+, H.265, Smart H.264+, H.264, MJPEG
	Streaming Capability	Three (3) Streams
	Resolution	4096 x 1800, 3840 x 1680, 2880 x 1264,
		1920 x 832, 1280 x 560, 1024 x 452
	Frame Rate	Main Stream: 4096 x 1800 at 25 fps
		Sub Stream 1: 1024 x 452 at 30 fps
		Sub Stream 2: 1920 x 832 at 30 fps
	Bit Rate Control	CBR, VBR
	Bit Rate	H.265: 9 Kbps to 9472 Kbps
		H.264: 24 Kbps to 15616 Kbps
	Day/Night	Auto (ICR), Color, B/W
	BLC Mode	BLC, HLC, DWDR
	White Balance	Auto, Natural, Street Lamp, Outdoor, Manual
	Gain Control	Auto, Manual
	Noise Reduction	3D DNR
	Motion Detection	Off, On (4 Zone, Rectangle)
	Region of Interest	Off, On (4 Zone)
	Smart IR	Support
	Digital Zoom	16x
	Privacy Masking	Off, On (4 Area, Rectangle)
	Audio
	Compression	G.711a, G.711Mu, AAC, G.726
	Network
	Ethernet	RJ-45 (100/1000 Base-T)
	Protocol	HTTP, HTTPs, TCP, ARP, RTSP, RTP, UDP, SMTP, FTP, DHCP, DNS, DDNS, PPPOE, IPv4/v6, QoS, UPnP, NTP, Bonjour, 802.1x, Multicast, ICMP, IGMP, SNMP
	Interoperability	ONVIF, PSIA, CGI
	Streaming Method	Unicast, Multicast
	Maximum User Access	10 Users / 20 Users
	Edge Storage	NAS
		Local PC for instant recording
		Micro SD Card, maximum 128 GB
	Web Viewer	IE, Firefox, Safari
	Management Software	Smart PSS, DSS
	Mobile Operating System	IOS, Android
	Certifications
	Safety	EN 60950:2000
		UL60950-1
	Electromagnetic Compatibility (EMC)	FCC Part 15 Subpart B
	Interface
	Video	One (1) Port (use for adjustment only)
	Audio	Input: One (1) Channel, RCA
		Output: One (1) Channel, RCA
	Alarm	Input: Two (2) Channels (5 VDC, 5 mA)
		Output: Two (2) Channels (30 VDC, 1 A; 50 VAC, 0.5 A)
	Electrical
	Power Supply	24 VAC, PoE+ (802.3at Class 4)
	Power Consumption	< 25.5 W
	Environmental
	Operating Conditions	-40° C to +60° C (-40° F to +140° F)
		Less than 95% RH
	Storage Conditions	-40° C to +60° C (-40° F to +140° F)
		Less than 95% RH
	Ingress Protection	IP67
	Vandal Resistance	IK10
	Construction
	Casing	Metal
	Dimensions	298.30 mm x 172.50 mm x 120.50 mm
		(11.74 in. x 6.79 in. x 4.74 in.)
	Net Weight	2.70 kg (5.95 lb)
	Gross Weight	3.61 kg (7.96 lb)
	Intelligence
	IVS triggers an alarm and takes a defined action for the following events:
	Standard Features	Tampering with the camera.
		Camera loses or changes focus drastically.
		Error writing to an onboard Micro SD card.
		Error sending or receiving data over the network.
		Unauthorized access to the camera.
	Premium Features
	Motion	An object moves through any part of the scene.
	Tripwire	A target crosses a user-defined line.
	Intrusion	A target enters or exits a defined perimeter.
	Scene Change	A person or object moves the camera to change the scene or covers the camera to obscure the scene.
	Abandoned/Missing Object	A target leaves an object in designated area, or a target removes an object from the same designated area.
	Advanced Features
	Facial Detection	Detects and captures a snapshot of a human face in a defined area within a scene.
	People Counting	Measure the number of customers, visitors or passengers in a surveillance scene.
	Heat Map	Generates a visual representation of data.
	E-PTZ	Scans a portion of the panoramic scene and zooms that scene for improved observation.
