Accessories/PoE Switches/DH PFS3206 4P 120

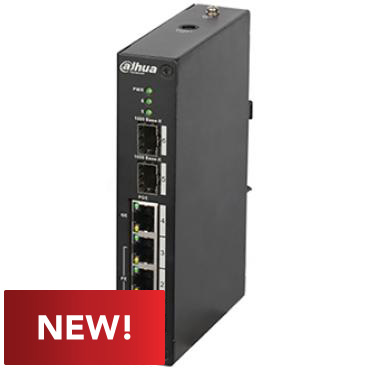

DH-PFS3206-4P-120
Features
- Two-layer Unmanaged PoE Switch
- Cascade Switches via the SFP Fiber Port
- MAC Auto Study and Aging
- 8K MAC Address List Capacity
- Supports the IEEE802.3af, IEEE802.3at, and the Hi-PoE Standards
- Conforms to the IEEE802.3, IEEE802.3u, IEEE802.3ab/z and the IEEE802.3X Standards
- Wide Temperature Range for Industrial Applications
Specifications
| Ethernet Ports | Two (2) 1000 Base-X |
| One (1) 10/100/1000 Base-T (Hi-PoE / PoE+ / PoE) | |
| Three (3) 10/100 Base-T (PoE+ / PoE) | |
| PoE Power Consumption | Ports 1, 2, 3: ≤ 30 W |
| Port 4: ≤ 60 W | |
| Total Power Consumption: ≤ 120 W | |
| PoE Protocol | IEEE802.3af, IEEE802.3at, Hi-PoE |
| Switching Capacity | 6.8 Gbps |
| Packet Forwarding Rate | 4.91 Mpps |
| Packet Buffer Memory | 1 Mb |
| MAC Table Size | 8K |
| Flow Control | Enable by default |
| Power Requirements | 48 VDC to 57 VDC |
| Working Temperature | -30° C to 65° C (-22° F to 149° F) |
| Application Humidity | 10% to 90% |
| Lightning Protection | Common Mode: 4 KV |
| Differential Mode:2 KV | |
| Dimensions (W x D x H) | 150.0 mm x 100.0 mm x 30.0 mm |
| (5.91 in. x 3.94 in. x 1.18 in.) | |
| Weight | 0.48 kg (1.06 lb) |
