Description

This article is to show you instruction of how to wire and setup the alarm input from the recorder.

Prerequisites

1. NVR/HCVR/DVR with Alarm IN relay functionality

2. Alarm input device. Such as: Toggle switch or motion sensor.

3. Power supply unit rated for the Electronic Buzzer (and the NVR/HCVR/DVR)

Video Tutorial

Step by Step Instructions

Please Note: Setting up alarm triggers will only work with recorders that have alarm inputs.

STEP 1. Identify the connections on the Alarm Trigger.

Physical alarm pic 1.png

  • COM: Communication Port or Ground N.C: Normally Closed - A Trigger that initiates when an object disrupts the communication line of 2 sensors
  • N.C: Normally Closed - A Trigger that initiates when an object disrupts the communication line of 2 sensors
  • N.O: Normally Open - A Trigger that initiates when an object completes the communication line of 2 sensors.

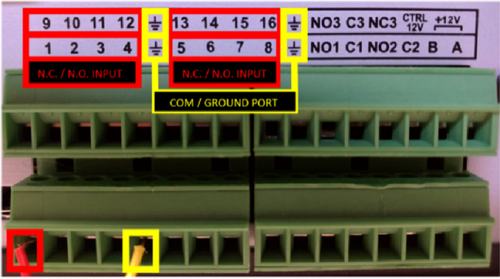

STEP 2. Connect the N.C. (Normally Closed) wire to one of the numbered ports. Connect the COM wire to the COM / Ground Port.

  • Alarm Inputs are grouped in fours.
  • Each group uses the Communication/Ground Port on the right. Alarm Inputs are grouped in fours. Each group uses the Communication/Ground Port on the right.

Physical alarm 2.png


STEP 3. From your local GUI, right click on your live view screen and click on Main Menu.

Alarm pic 3.png


STEP 4.Click Event from the Settings menu option.

Physical alarm pic 4.png


STEP 5. From the left menu tab, click Alarm.

Physical alarm pic 5.png


STEP 6. Click on Local Alarm tab.

Physical alarm pic 6.png


STEP 7. Select the Alarm In Port you connected from Step 2.

Physical alarm pic 7.png


STEP 8. Select alarm trigger Type

  • Normally Closed: A Trigger that initiates when an object disrupts the communication line of 2 sensors.
  • Normally Open: A Trigger that initiates when an object completes the communication line of 2 sensors.

Physical alarm pic 8.png


STEP 9. Configure the Alarm Trigger Settings

  • Show Message: An alert will appear on the display attached to the system when the alarm is triggered.
  • Record Channel: Configure the alarm to trigger recording on a specific channel, or all.
  • Snapshot: A Snapshot will be taken by a specific channel or all when the alarm is triggered.

Physical alarm 9.png


STEP 10. Click Apply.

Physical alarm pic 10.png


STEP 11. Click OK

  • If you configured the Alarm to "Show a Message", it will appear as soon as the alarm is triggered.

Physical alarm pic 11.png

  • Right-Click your mouse once to clear the message.

Physical alarm pic 12.png
