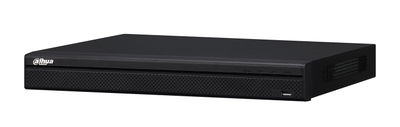

NVR4208-4K
Features
- Up to 8 channel 4K IP camera input
- H.265/H.264/MJPEG dual codec decoding
- Max 256Mbps incoming bandwidth
- Up to 8ch@1080P(4ch@H.265+4ch@H.264) realtime live-view
- Up to 12Mp resolution preview&playback
- HDMI/VGA simultaneous video output
- 8channel synchronous realtime playback, GRID interface
- Support Multi-brand network cameras: Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek and etc.
- ONVIF Version 2.4 conformance
- 3D intelligent positioning with Dahua PTZ camera
- Support 2 SATA HDDs up to 12TB, 2 USB(1 USB3.0)
- Support IPC UPnP
- Support P2P, QR code scan & add
- Multiple network monitoring: Web viewer, CMS(DSS/Smart PSS) & Smart Phone(DMSS)
Specifications
| Model | DH-NVR4208-4K | DH-NVR4216-4K | DH-NVR4232-4K | |||
| DH-NVR4208-8P-4K | DH-NVR4216-8P-4K | DH-NVR4232-8P-4K | ||||
| System | ||||||
| Main Processor | Dual-core embedded processor | |||||
| Operating System | Embedded LINUX | |||||
| Video& Audio | ||||||
| IP Camera Input | 8 channel | 16 channel | 32 channel | |||
| Two-way Talk | 1channel Input, 1channel Output, RCA | |||||
| Display | ||||||
| Interface | 1 HDMI , 1 VGA | |||||
| Resolution | 3840×2160, 1920×1080, 1280×1024, 1280×720, 1024×768 | |||||
| Display Split | 1/4/8/9 | 1/4/8/9/16 | 1/4/8/9/16 | |||
| OSD | Camera title, Time, Video loss, Camera lock, Motion detection, Recording | |||||
| Recording | ||||||
| Compression | H.265/H.264/MJPEG | |||||
| Resolution | 12Mp, 8Mp, 6Mp, 5Mp, 3Mp, 1080P, 1.3Mp, 720P & etc. | |||||
| Record Rate | 192Mbps | |||||
| Bit Rate | 1~ 20Mbps | |||||
| Record Mode | Manual, Schedule(Regular(Continuous), MD, Alarm), Stop | |||||
| Record Interval | 1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec | |||||
| Video Detection & Alarm | ||||||
| Trigger Events | Recording, PTZ, Tour, Alarm out, Video Push, Email, FTP, Snapshot, Buzzer & Screen tips | |||||
| Video Detection | Motion Detection, MD Zones: 396(22×18), Video Loss & Camera Blank | |||||
| Alarm Input | 8 channel | |||||
| Relay Output | 3 channel | |||||
| Playback & Backup | ||||||
| Sync Playback | 1/4/9 | 1/4/9/16 | 1/4/9/16 | |||
| Search Mode | Time/Date, Alarm, MD & Exact search (accurate to second), Smart search | |||||
| Playback Function | Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom | |||||
| Backup Mode | USB Device/Network/Internal SATA burner | |||||
| Network | ||||||
| Ethernet | 1 RJ-45 port (10/100/1000Mbps) | |||||
| PoE | 8 ports (IEEE802.3at/af) (for -8P model) | |||||
| Network Function | HTTP, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE, DDNS, FTP, Alarm Server, IP Search(Support Dahua IP camera, DVR, NVS and etc.) | |||||
| Max. User Access | 128 users | |||||
| Smart Phone | iPhone, iPad, Android, Windows Phone | |||||
| Storage | ||||||
| Internal HDD | 2 SATA III ports, up to 12TB | |||||
| Auxiliary Interface | ||||||
| USB | 2 ports (1 Rear USB3.0, 1 Front USB2.0) | |||||
| RS232 | 1 port, For PC communication& Keyboard | |||||
| RS485 | 1 port, For PTZ control | |||||
| General | ||||||
| Power Supply | Single, DC12V/4A(for normal model) | |||||
| Single, AC 100~240V, 50/60 Hz(for -8P model) | ||||||
| Power Consumption | NVR: 8.7W for normal model(without HDD), 15.2W for PoE model(without HDD) | |||||
| PoE: Max 25.5W for single port(for -8P model),120W in total | ||||||
| Working Environment | -10°C~+55°C/10%~90%RH/86~106kpa | |||||
| Dimension (W×D×H) |
1U, 375mm×275mm×56mm | |||||
| Weight | 1.65KG for normal model(without HDD), 2.65KG for PoE model(without HDD) | |||||
