EPOE

ePOE

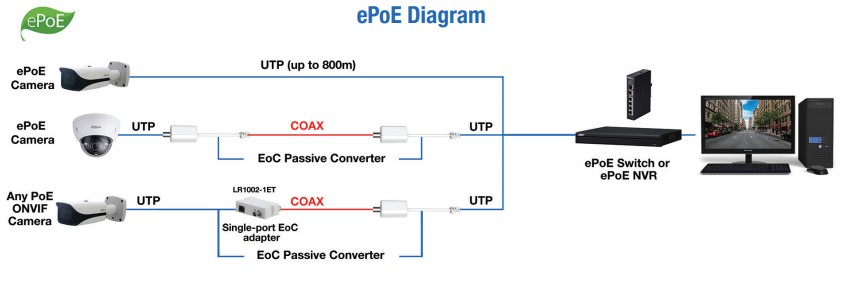

Infographs

Short Run Test Results: 10 foot BNC Cable Used

Normal Switch + Non-ePOE Dahua Camera

• LR1002 + LR1002 + POE Switch = Doesn't Work
• LR1002 + LR1002-1ET + POE switch = Doesn't Work
• LR1002 + LR1002-1EC + POE switch = Doesn't Work
• LR1002-1EC + LR1002-1ET + POE switch = Works

ePOE Switch + Non-ePOE Dahua Camera

• LR1002 + LR1002 + ePOE Switch = Doesn't Work
• LR1002 + LR1002-1ET + ePOE switch = Doesn't Work
• LR1002 + LR1002-1EC + ePOE switch = Works
• LR1002-1EC + LR1002-1ET + ePOE switch = Works

ePOE Switch + ePOE Dahua Camera

• ePOE Switch + ePOE Dahua Camera = Works
• LR1002 + LR1002 + ePOE Switch = Works
• LR1002 + LR1002-1ET + ePOE switch = Works
• LR1002 + LR1002-1EC + ePOE switch = Works
• LR1002-1EC + LR1002-1ET + ePOE switch = Works

Normal Switch + ePOE Dahua Camera

• LR1002 + LR1002 + POE Switch = Doesn't Work
• LR1002 + LR1002-1ET + POE switch = Doesn't Work
• LR1002 + LR1002-1EC + POE switch = Works
• LR1002-1EC + LR1002-1ET + POE switch = Works

Long Run Test Results: 1000 foot BNC Cable Used

Normal Switch + Non-ePOE Dahua Camera

• LR1002 + LR1002 + POE Switch = Doesn't Work
• LR1002 + LR1002-1ET + POE switch = Works
• LR1002 + LR1002-1EC + POE switch = Doesn't Work
• LR1002-1EC + LR1002-1ET + POE switch = Works

ePOE Switch + Non-ePOE Dahua Camera

• LR1002 + LR1002 + ePOE Switch = Doesnt Work
• LR1002 + LR1002-1ET + ePOE switch = Doesnt Work
• LR1002 + LR1002-1EC + ePOE switch = Works
• LR1002-1EC + LR1002-1ET + ePOE switch = Works

ePOE Switch + ePOE Dahua Camera

• ePOE Switch + ePOE Dahua Camera =
• LR1002 + LR1002 + ePOE Switch = Works
• LR1002 + LR1002-1ET + ePOE switch = Works
• LR1002 + LR1002-1EC + ePOE switch = Works
• LR1002-1EC + LR1002-1ET + ePOE switch = Works

Normal Switch + ePOE Dahua Camera

• LR1002 + LR1002 + POE Switch = Doesnt Work
• LR1002 + LR1002-1ET + POE switch = Doesnt Work
• LR1002 + LR1002-1EC + POE switch = Works
• LR1002-1EC + LR1002-1ET + POE switch = Works
