:INT/NVR/DH NVR616 128 4K

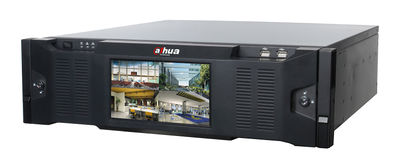

NVR616DR-128-4K

Features

• Max 128 channel IP cameras connection
• Max 384Mbps incoming bandwidth
• Up to 12Mp resolution preview& playback
• 1 VGA+2 HDMI
• Support 16 hot-swap HDDs
• Support RAID 0/1/5/6/10/50/60
• Support N+M hot standby
• Support iSCSI & Mini SAS to expand storage space
• Compatible with Dahua SDK and seamless integrated to other platforms
• Support Multi-brand network cameras: Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek and etc.
• ONVIF Version 2.4 conformance
• Redundant power supply module adopted (DH-NVR616R-128 &DH-NVR616DR-128)
• Front LCD display (DH-NVR616D-128 & DH-NVR616DR-128)

Specifications

Model	DH-NVR616-128-4K	DH-NVR616D-128-4K	DH-NVR616R-128-4K	DH-NVR616DR-128-4K
System
Main Processor	Intel Processors
Operating System	LINUX
Video & Audio
IP Camera Input	128 channel
Two-way Talk	1channel Input, 1channel Output, RCA
Display
Interface	2 HDMI (up to 3840x2160), 1 VGA
Resolution	3840×2160, 1920×1080, 1280×1024, 1280×720, 1024×768
Multi-screen Display	The 1st screen: 1/4/8/9/16/25/36
	The 2nd screen: 1/4/8/9/16
OSD	Camera title, Time, Video loss, Camera lock, Motion detection, Recording
Recording
Compression	H.264/MJPEG
Resolution	12Mp, 8Mp, 6Mp, 5Mp, 3Mp, 1080P, 1.3Mp, 720P & etc.
Record Rate	256Mbps
Bit Rate	1~ 20Mbps
Record Mode	Manual, Schedule(Regular(Continuous), MD(Video detection: Motion detection, Camera blank, Video loss), Alarm), Stop
Record Interval	1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec
Video Detection & Alarm
Trigger Events	Recording, PTZ, Tour, Alarm out, Video Push, Email, FTP, Snapshot, Buzzer & Screen tips
Video Detection	Motion Detection, MD Zones: 396(22×18), Video Loss & Camera Blank
Alarm Input	16ch, low level effective, green terminal interface
Relay Output	8ch, Relay contact(1A@24VDC), NO/NC programmable, green terminal interface
Playback & Backup
Playback	128Mbps in Raid 5 mode 64Mbps in single HDD mode
Search Mode	Time/Date, Alarm, MD & Exact search (accurate to second), Smart search
Playback Function	Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom
Backup Mode	USB Device/Network/Internal SATA burner/eSATA Device
Network
Interface	4 RJ-45 ports (10/100/1000Mbps)
Ethernet Port	4 Ethernet ports joint working or 4 independent 1000Mbps Ethernet ports
Optical Fiber Interface	2 Giga Optical fiber interface
Network Function	HTTP, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE, DDNS, FTP, Alarm Server, IP Search(Support Dahua IP camera, DVR, NVS and etc.)
Max. User Access	128 users
Smart Phone	iPhone, iPad, Android, Windows Phone
Storage
Internal HDD	16 SATA III ports, up to 96TB
HDD Mode	Single, Raid 0/1/5/6/10/50/60 (Support global HDD hot-spare)
Auxiliary Interface
Front cover	Support hot swap, 7" inch HD LCD (1920x1080/1280x1024/1024x768) (Model –D&DR)
USB	4 USB ports(3 USB2.0, 1 USB3.0)
eSATA	1 eSATA port
SAS	1 Mini SAS port, for storage expansion
RS232	1 port, for PC communication& keyboard
RS485	1 port, For PTZ control
General
Power Supply	AC100V~240V, 50~60Hz		AC100V~240V, 50~60Hz , Redundant
Power Consumption
Working Environment	-10°C~+55°C/10%~90%RH/86~106kpa
Dimension(W×D×H)	531.9mm ×485mm(with ears)×133.2mm
Weight	17.45kg (without HDD)
Installation	Rack-mounted
