Control4 Integration Features

Driver Features

  • Allows NVR Icon on Watch Menu, and Connection paths for HDMI and VGA into a Control4 video system
  • Event Connection for Triggers FROM NVR (using either, connection binding or Composer Event)
  • NUMBER buttons select that channel (example: Button 6 = Camera 6 on the TV)
  • Setup RED, GREEN, YELLOW, and BLUE buttons to trigger different views on TV
  • Uses Control4’s cable Proxy
  • Connection paths for camera proxy interface

Description of Items in Driver

  • Driver Version-Current Driver version install on project
  • Driver Persistence-Current saved state of driver data. (note: if this says, ‘Not Saved’ and director reboots, the data will not be available on Load of driver).
  • Driver Information-Driver Specific information
  • Debug Mode (Default: Off)-Used to view the driver log. Debug will turn off automatically after 15 minutes
  • Device Connection-Current Device State (Online or Offline, Failed to Check in)
  • Polling Timer (Seconds)-Amount of time between polling checks. If 0 then polling is disabled.
  • NVR IP Address
  • IP address of NVR
  • NVR Username-Username used to log into NVR
  • NVR Password-Password used to log into NVR
  • # of Channels-The quantity of channels on NVR, example: 4, 8, 16, 256
  • NVR Model-Will display the Model number of the NVR attached to the driver
  • Remote RED Button-Shortcut for RED Room Command (default: 4 Split Group 0)
  • Remote GREEN Button-Shortcut for GREEN Room Command (default: 4 Split Group 1)
  • Remote YELLOW Button-Shortcut for YELLOW Room Command (default: 8 Split)
  • Remote BLUE Button-Shortcut for BLUE Room Command (default: 9 Split)
  • Server Communication Port-The port used for Event Notification (default: unused port chosen during initial setup automatically)

Security Icon Visible on Watch Menu

Control4 ExampleImage4.JPG

Camera Feeds Visible Under Rooms

Control4 ExampleImage5.JPG

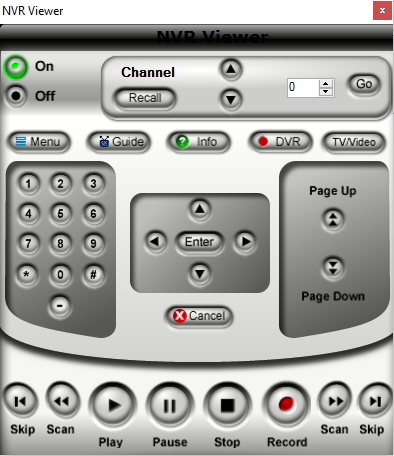

NVR Remote Control

Control4 Remote Control.png

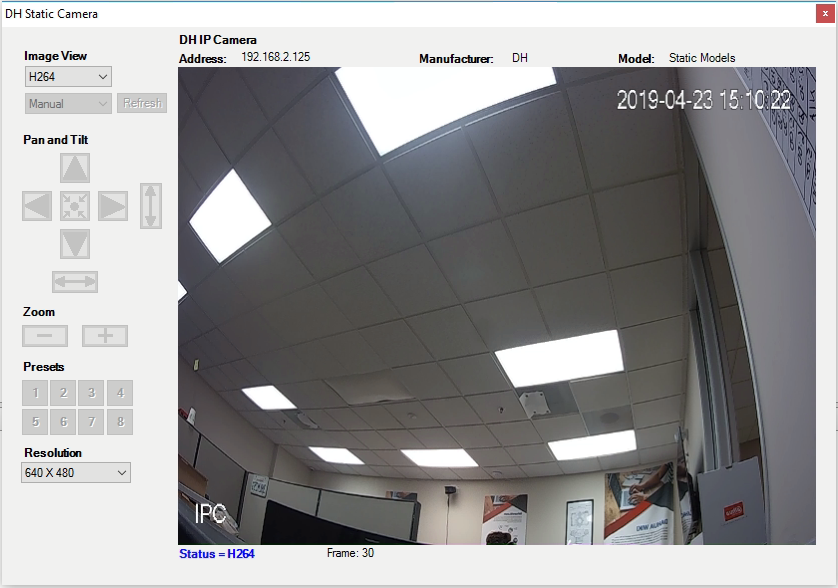

Camera Viewer
