How to Setup IVS Rules in Milestone

Description

This article shows how to set up an Intrusion rule in Milestone with a DH-IPC-HDW44A1MN-I.

Please make sure that the camera already has an Intrusion or Tripwire rule setup on the camera before continuing to Milestone.

NOTE: Intrusion and Tripwire are the only two rules working in Milestone as of current testing.

Prerequisites

  • Device with IVS Features added to Milestone
  • IVS rule already setup in the device
  • XProtect Management Client

Video Instructions

Step by Step Instructions

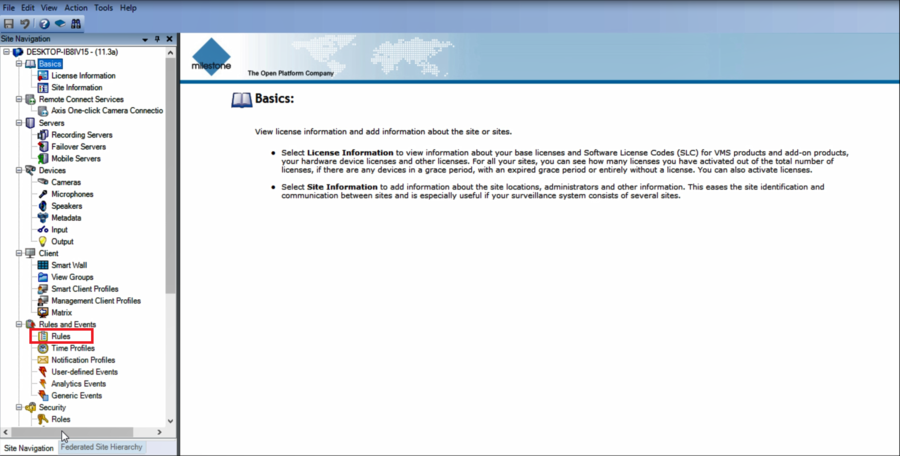

1. Open XProtect Management Client and go to Rules

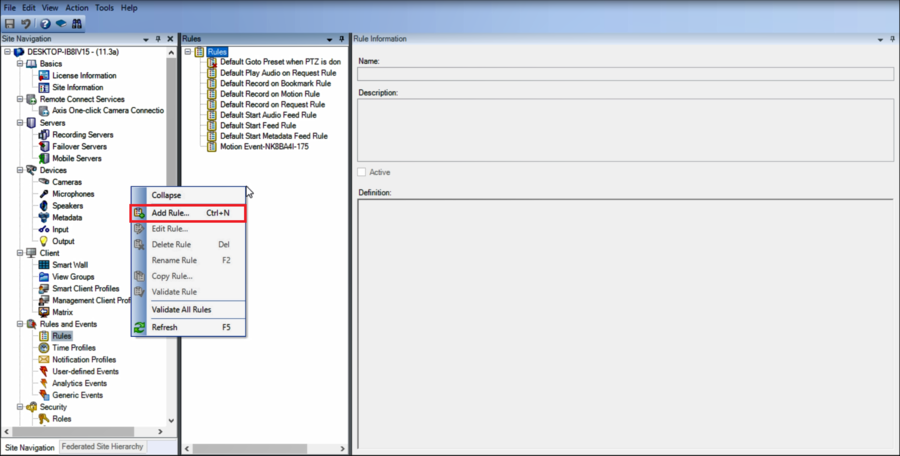

2. Right-click and add a rule

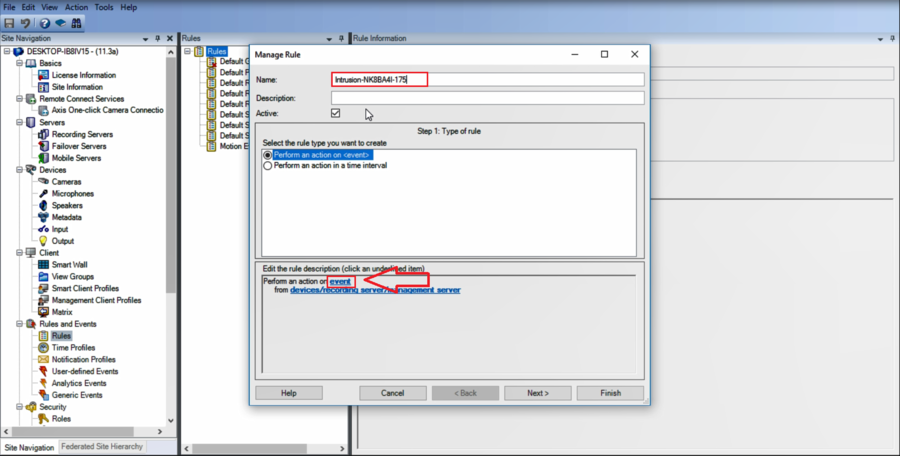

3. Name the new rule and click on even to set an event type

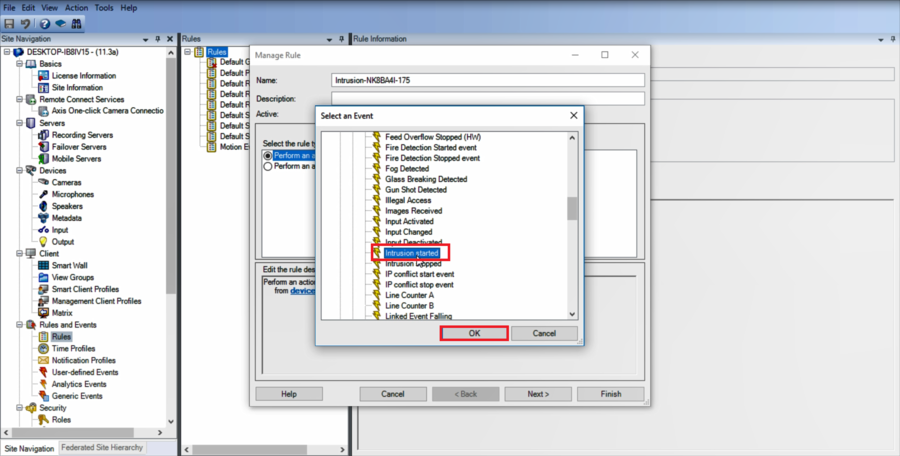

4.Devices>Configurable Events>Intrusion Started and then click on OK

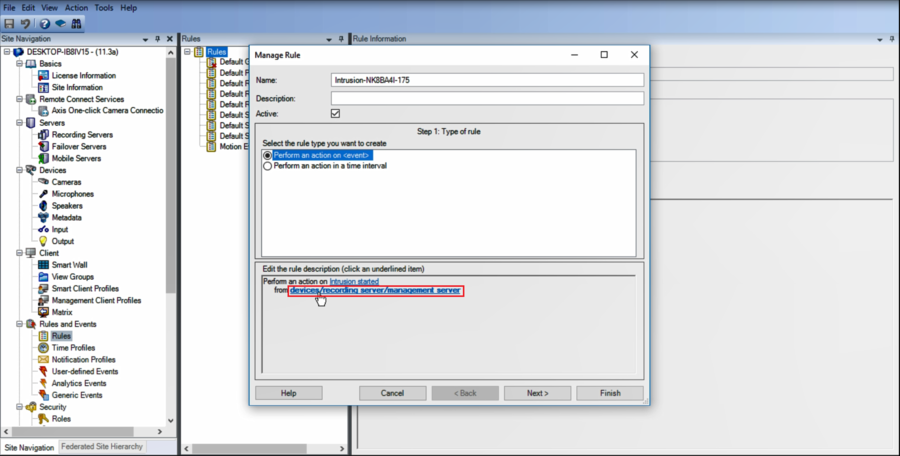

5.Next, we need to add the device

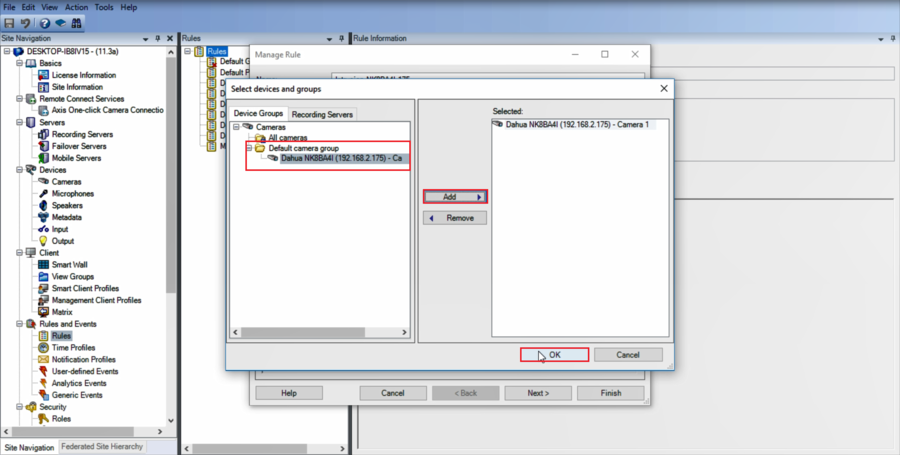

6.Highlight the device>Add>OK> then click on Next to proceed

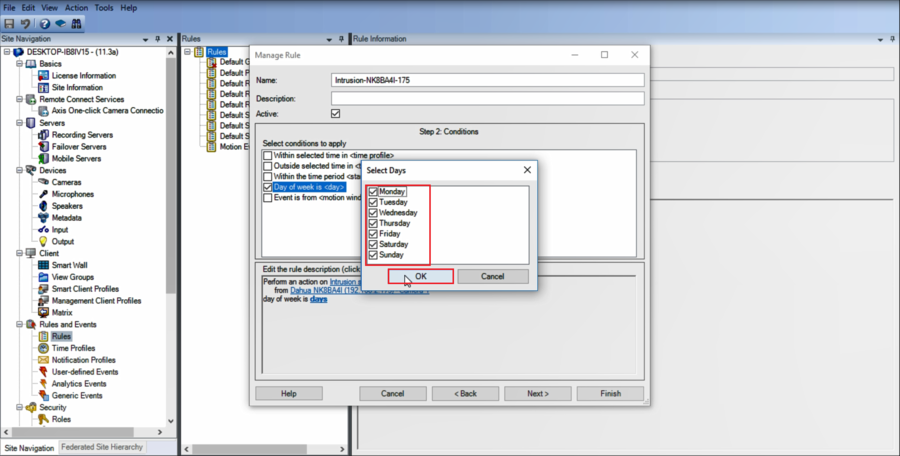

7.Enable "Day of week is" and select the days of the week you want it to be active

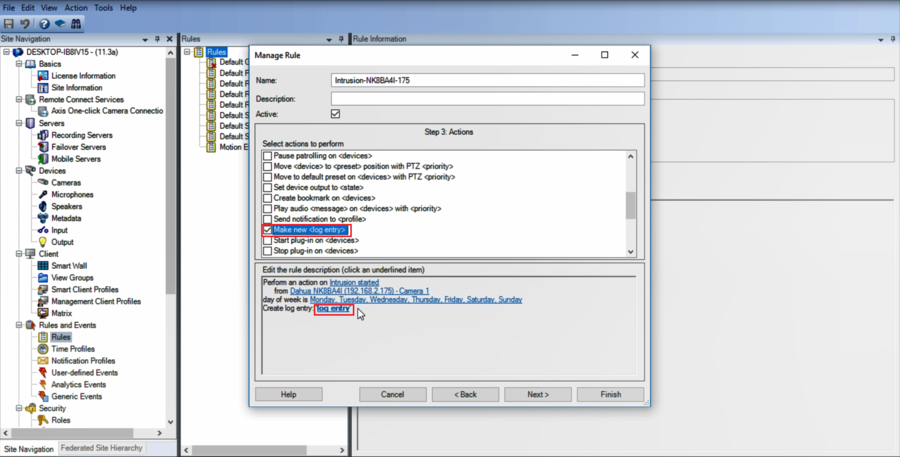

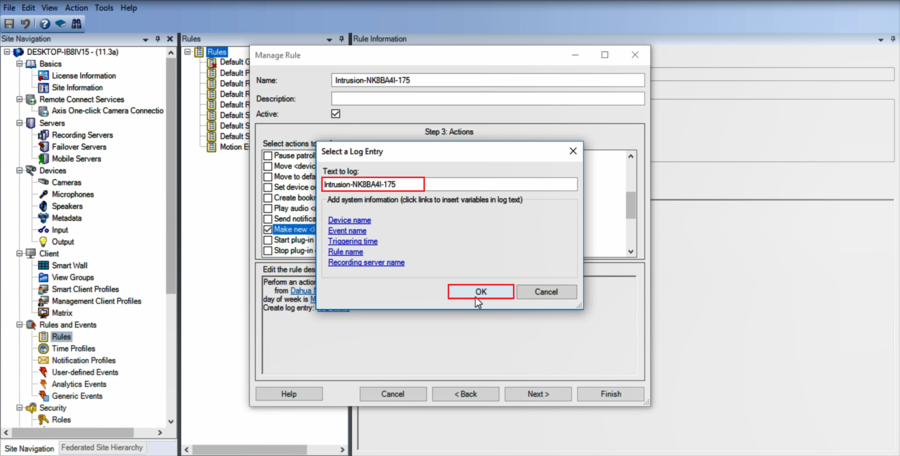

8.Enable "Make a new log" and give it a name, this will help you keep track of when the event was triggered

IVSMilestone9.PNG IVSMilestone9.5.PNG

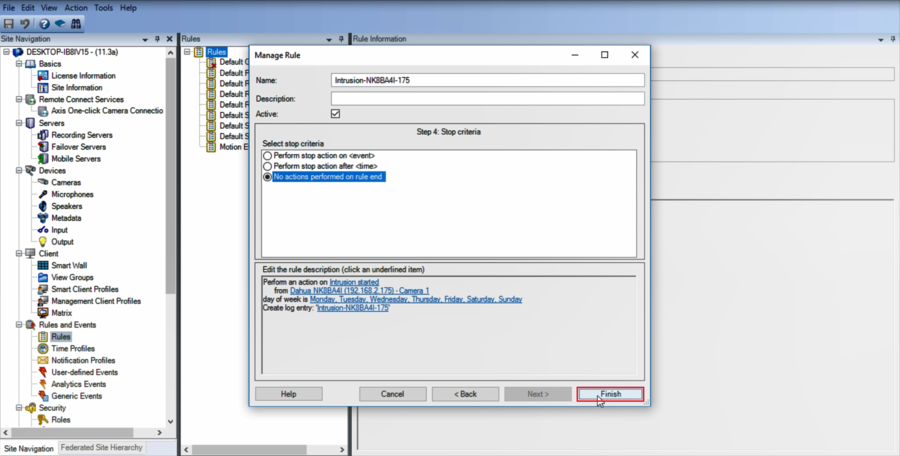

9.Click on Finish to finalize your rule

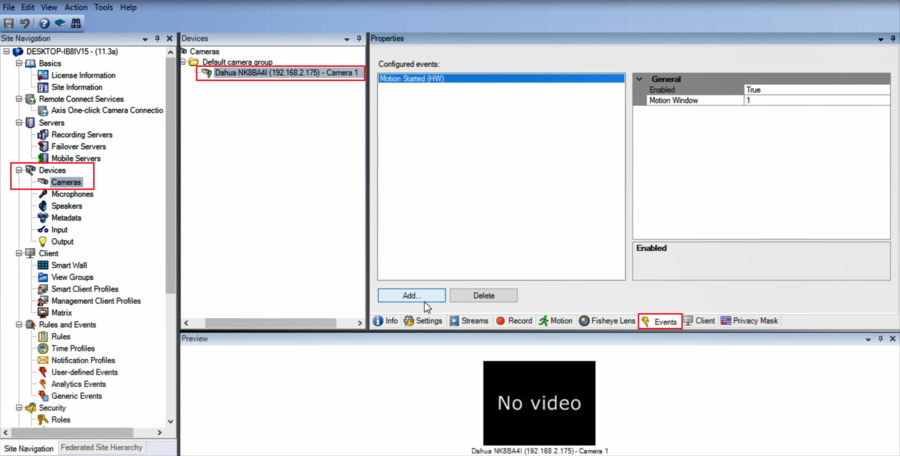

10.Now go to Devices and select your device, click on Event

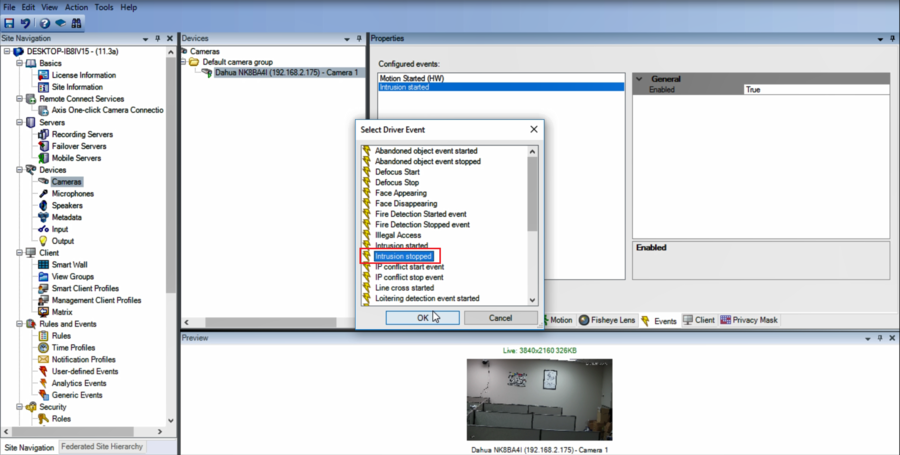

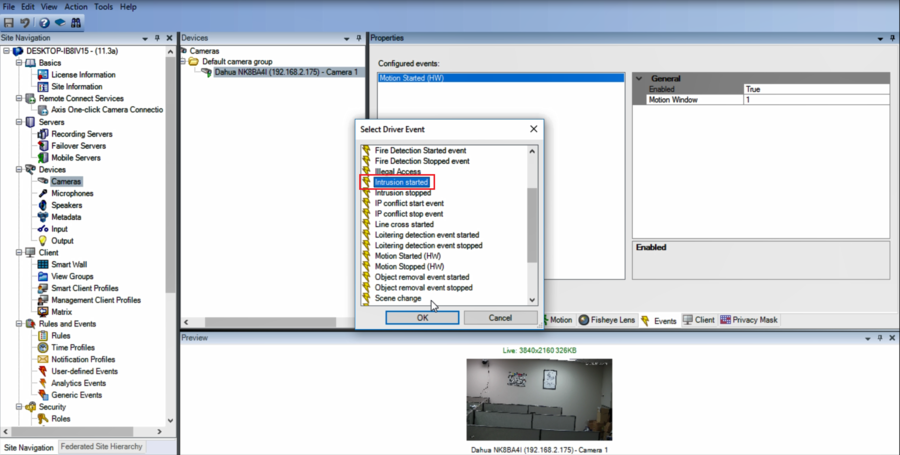

11.Add Intrusion started and Intrusion stopped

IVSMilestone12.PNG IVSMilestone13.PNG

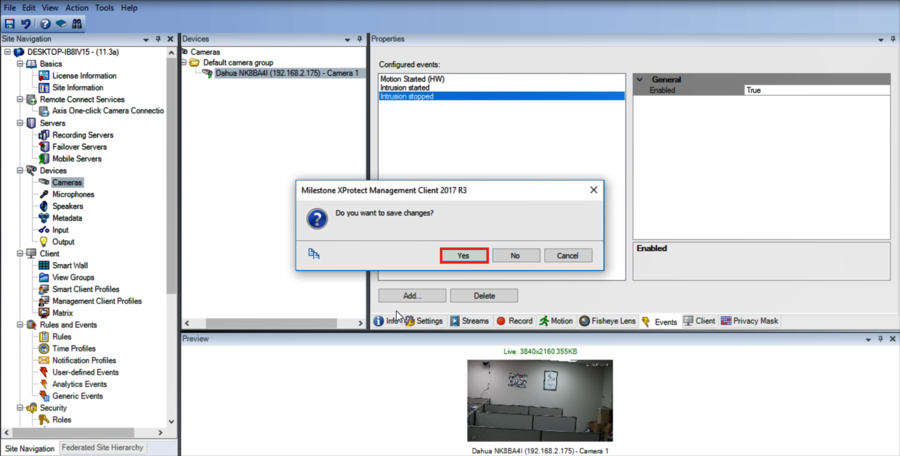

12.Save the changes

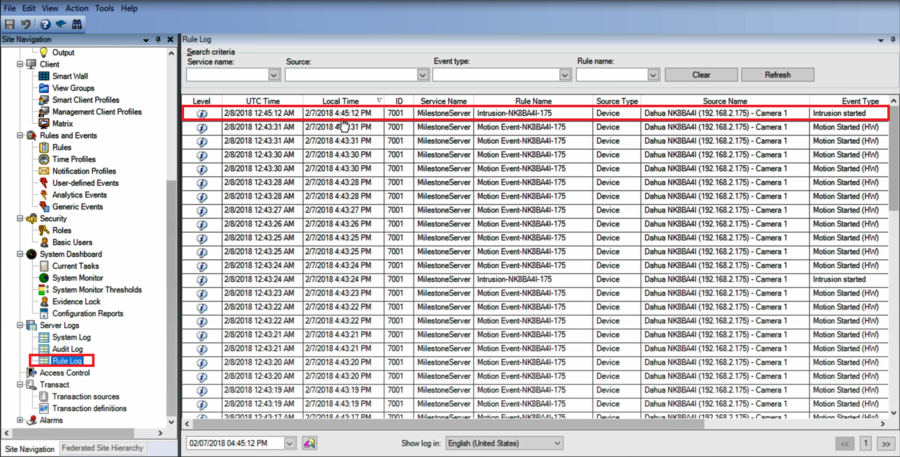

13.Go to "Rule Log" to check when the events have been triggered
