Access Control/How To Setup ASR2100Z B Bluetooth Reader on DHI ASC3202B

How To Setup ASR2100Z-B Bluetooth Reader on DHI-ASC3202B

Description

This article will cover how to setup a ASR2100Z-B Bluetooth Reader on a DHI-ASC3202B

Prerequisites

NOTE: To use the Bluetooth functionality of the ASR2100Z-B Bluetooth Reader it must be connected to the DHI-ASC3202B Access Controller, connected via RS485 and configured via the web interface of the Access Controller. When using the Bluetooth functionality of the reader, the access controller cannot be managed by SmartPSS Lite or DSS.
The ASR2100Z-B can be used as just a card reader (NO Bluetooth functionality) when wired via RS485 or Weigand on any Dahua Access Controller, managed by SmartPSS Lite, DSS, or stand alone.

Video Instructions

Step by Step Instructions

1. Open DMSS on the mobile device that will manage the ASC3202B. Follow the steps in the "Adding ASC3202B to DMSS Mobile App" section of This Guide


2. Open a web browser and log into the ASC3202B web interface.
Click on Access Control Config at the top.

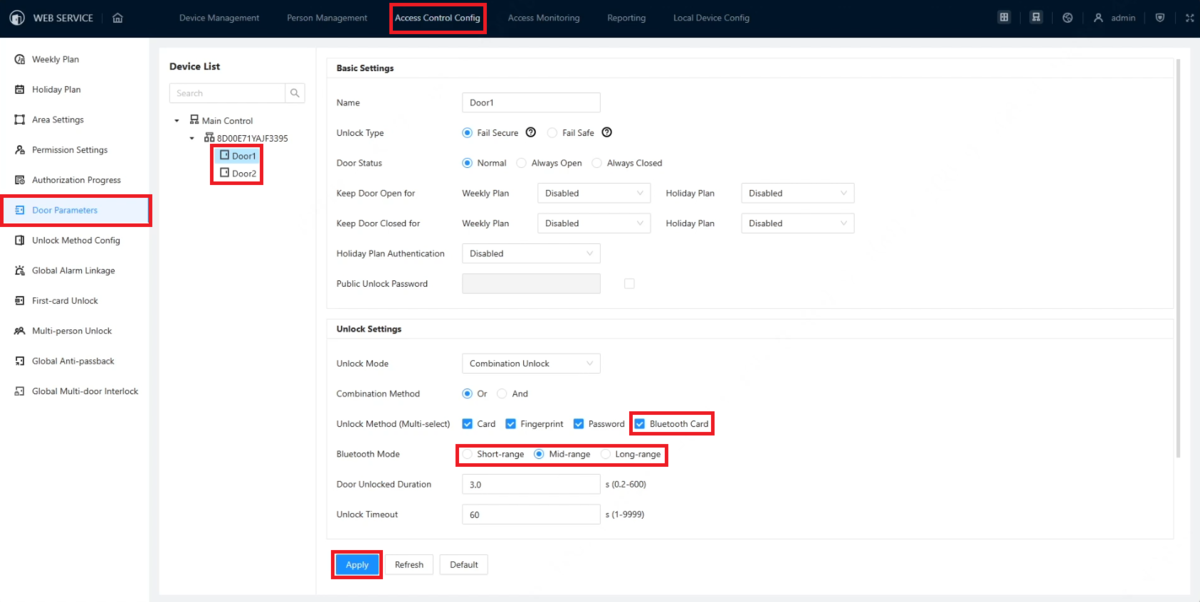

Select Door Parameters on the left.
Select the door that you have the ASR2100Z-B wired up to from the "Device List".
Make sure that Bluetooth Card is checked next to "Unlock Method (Multi-select)".
Choose the range at which you want bluetooth to be able to unlock the door. Short-range for ≤ 0.2 m (0.66 ft), Mid-range for ≤ 2 m (6.56 ft), or Long-range for ≤ 10 m (32.81 ft).
Then click Apply at the bottom

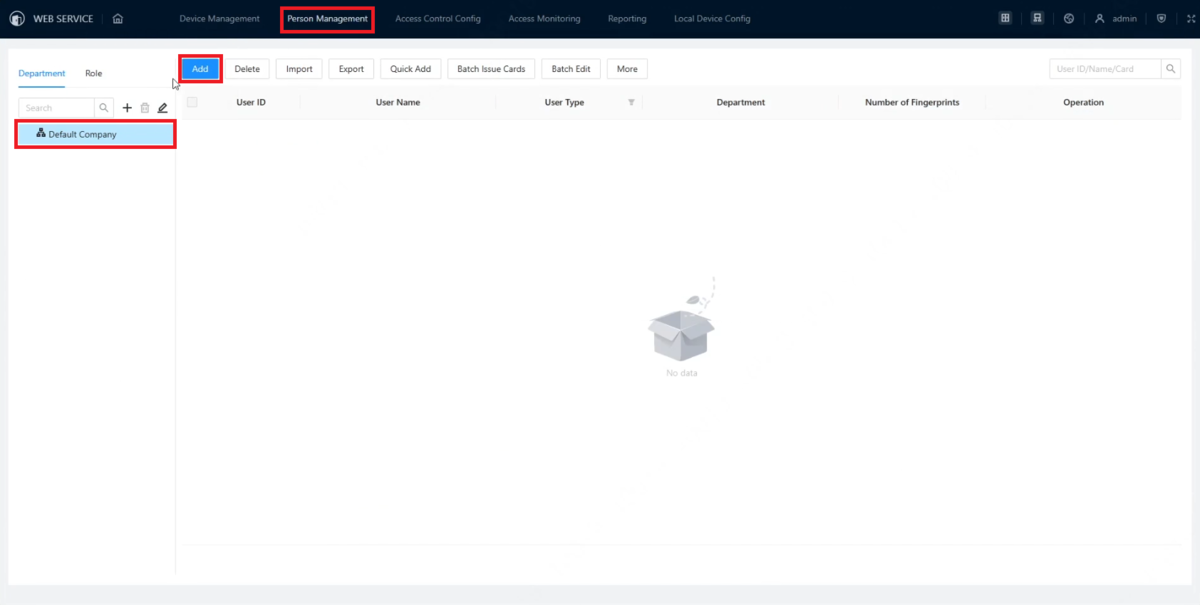

3. Click on Person Management at the top.
Select the Department you want to add the user to on the left.
Click on Add at the top


4. Select Basic Info at the top.
Enter a unique ID in the User ID field.
Enter the user's name in the User Name field.
Enter an email address that has been registered in the DMSS mobile app in the Email field.
(If you have not already registered the email address as a DMSS mobile app user, follow This Guide)

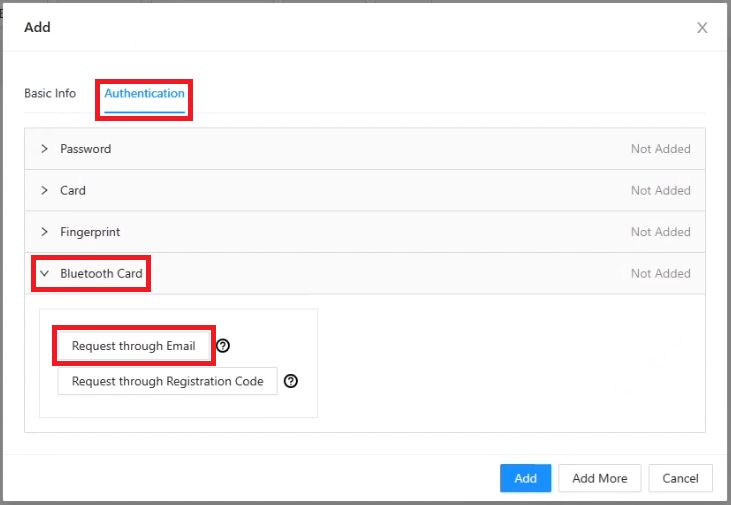

5. Select Authentication at the top.
Expand the Bluetooth Card section.
Click the Request through Email button


6. You will see a bluetooth card generated on the left.
Click Add at the bottom

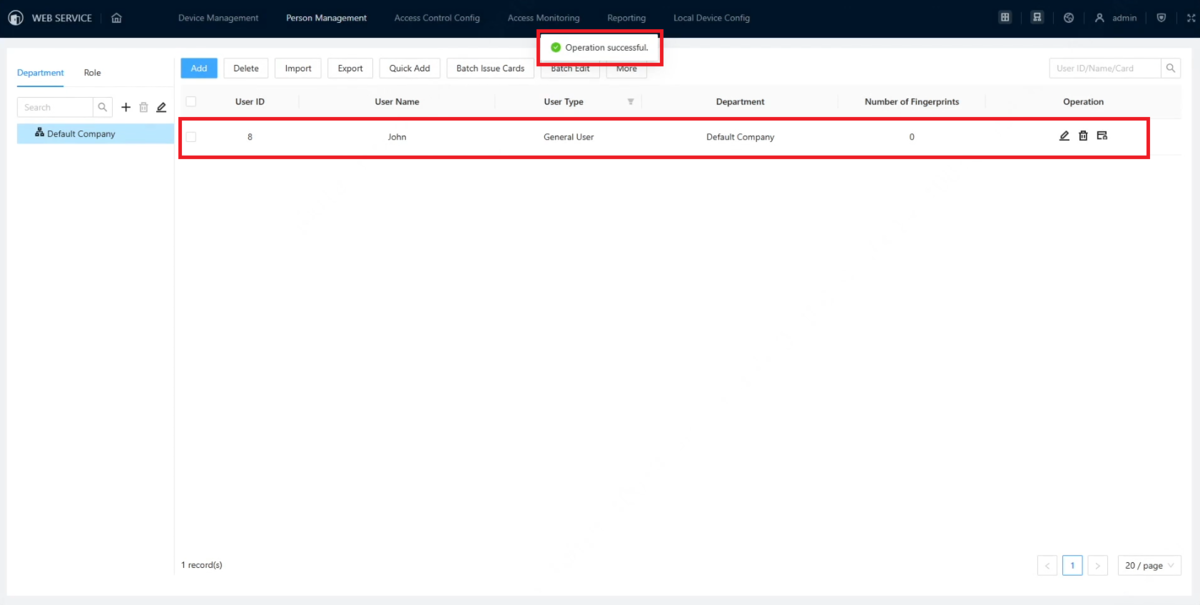

7. You will see "Operation successful" at the top and the user you just added will appear in the list


8. If you want to issue bluetooth cards to multiple users at a time, create more than one user and then select Batch Issue Cards at the top.
(If you want to continue setup for one user, skip to Step 11)
Either select Issue Cards to Selected Users if you checked the boxes next to only specific users, or select Issue Cards to All Users if you want to issue cards to all users in the list

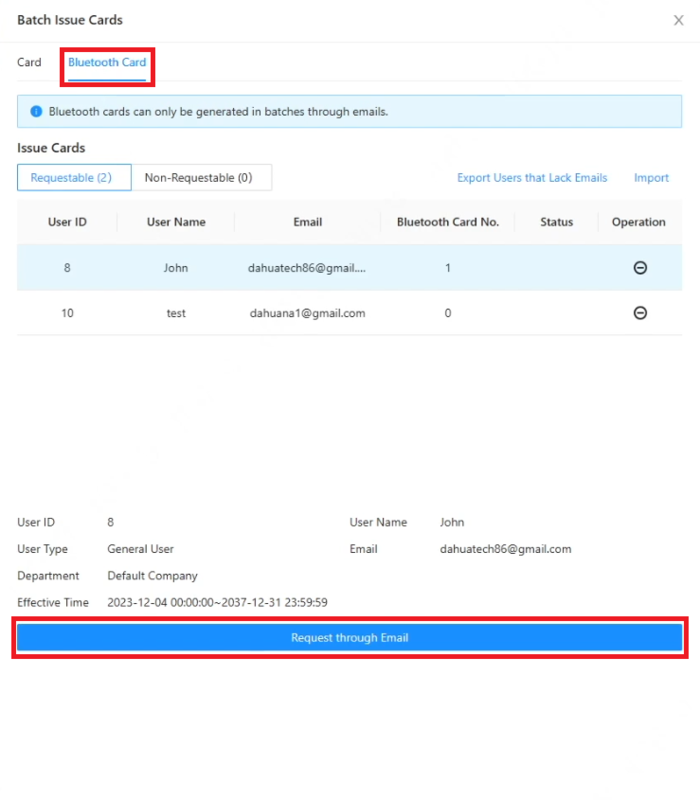

9. Select Bluetooth Card at the top.
Click on Request through Email at the bottom


10. It will indicate at the bottom how many users were successfully issued Bluetooth Cards and how many failed.
For any that fail, verify that the user has an email address entered and that it has been used to create an active DMSS account.
Click on the X at the top right


11. Click on Access Control Config at the top.
Select Area Settings on the left.

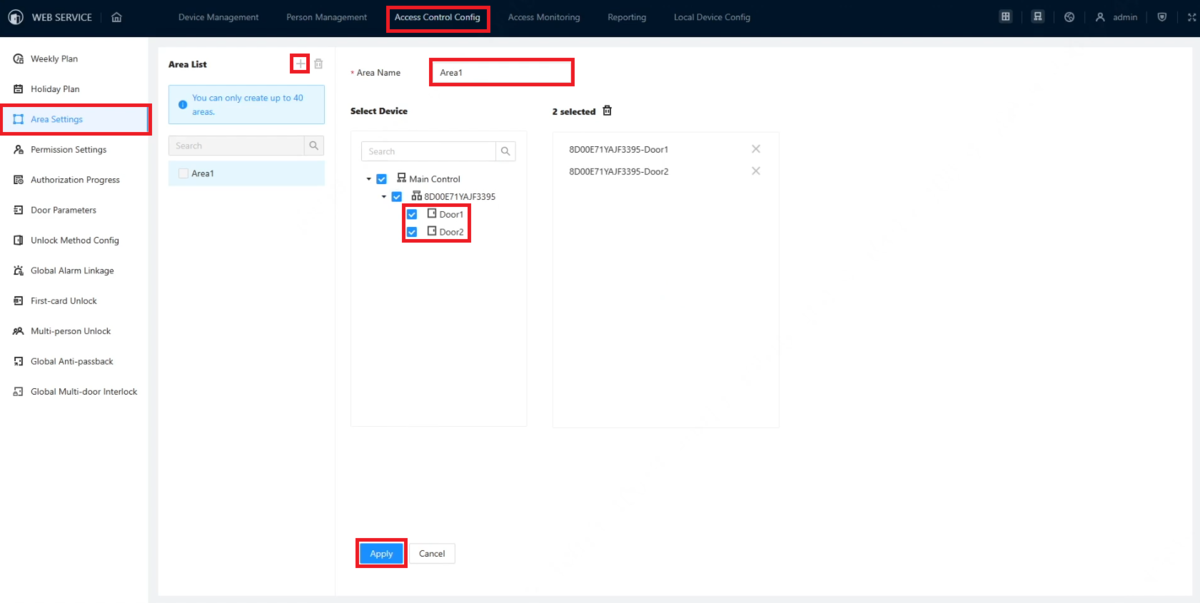

Click on the + button at the top to create a new Area.
Enter the name of the new Area in the field next to Area Name.
Check the box next to the door the Bluetooth Reader is wired to in the list.
Click on Apply at the bottom


12. Select Permission Settings on the left.
Click on the + button at the top to create a new Permission Rule.
Enter the name of the new Permission Rule in the field next to Name.
Click on the Add button in the "Person Info" section


13. Select either Dept, Role, or User to show the category of users.
Then check the box next to the user(s) you want to give permission to.
Click OK at the bottom

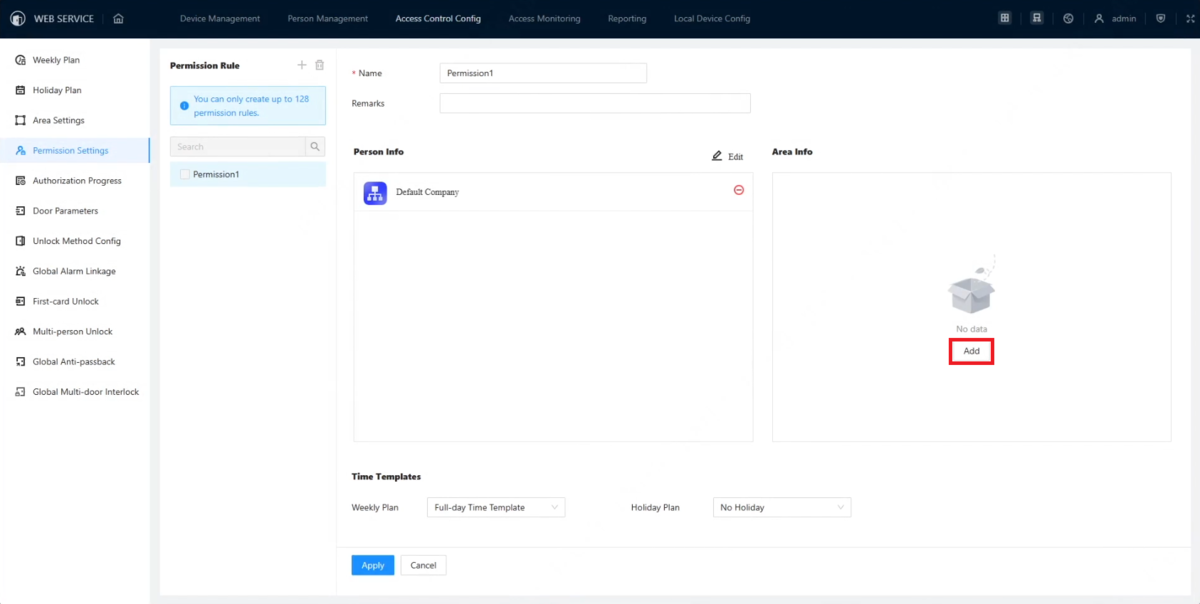

14. Click on the Add button in the "Area Info" section on the right

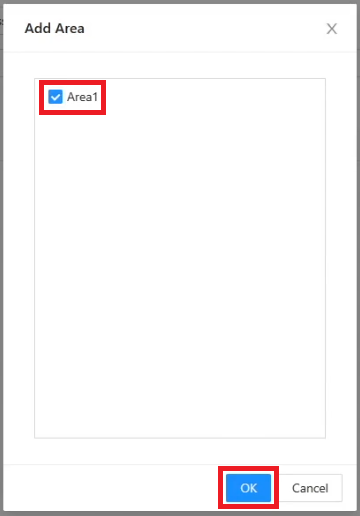

15. Check the box next to the Area you created in Step 11

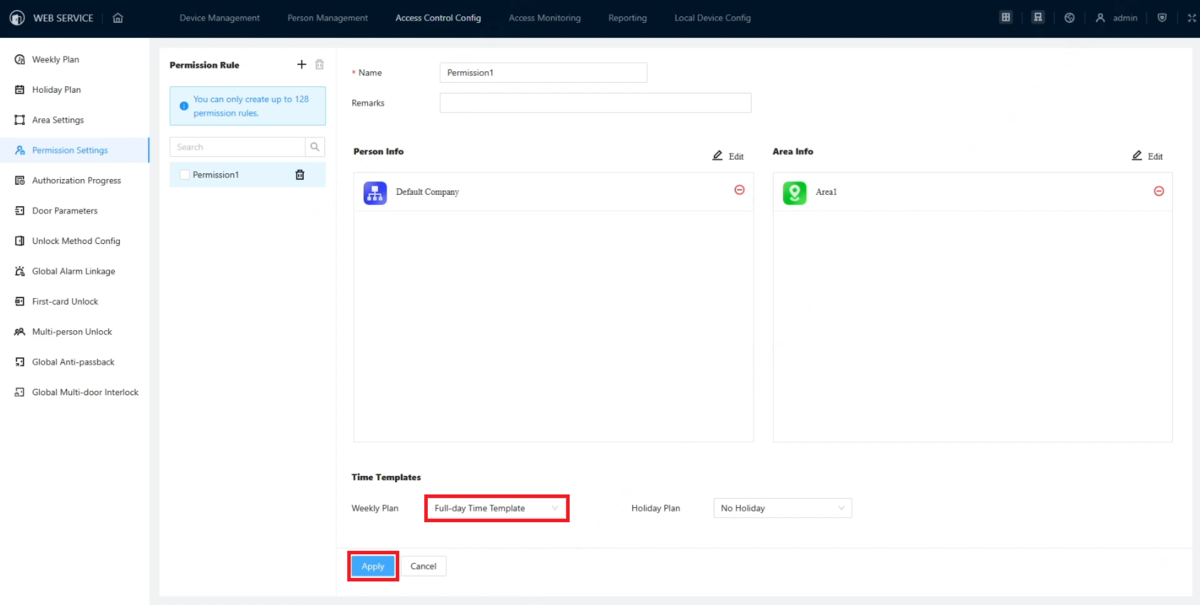

16. Select the schedule you want to use for access from the drop-down next to Weekly Plan.
Click Apply at the bottom


17. Open DMSS on the mobile device the user will be using.
Log into the DMSS account used to register the bluetooth card in Step 5.
Click on Device at the bottom.
You should see the Bluetooth Card in the list.
Tap on the card to open it


18. While on this page, move the mobile device within range to unlock the door.
A message will appear at the bottom to instruct you how to open the door.
You can stop that message from ever appearing again by checking the box for Never notify me.
Tap on I know to close the message


19. If you want, you can change the method by which the bluetooth card unlocks the door.

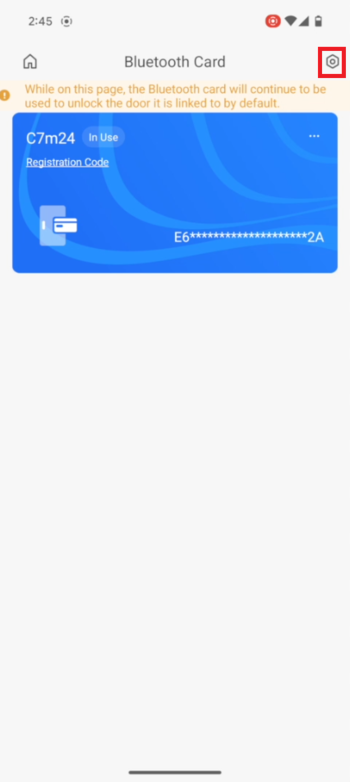

To do so, first tap on the Gear icon at the top right.

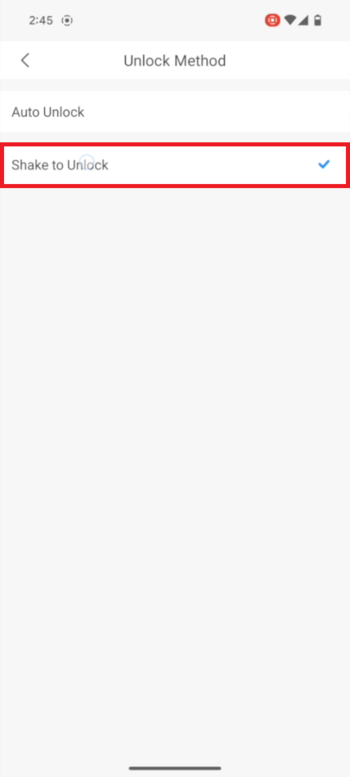

20. Then tap on Shake to Unlock

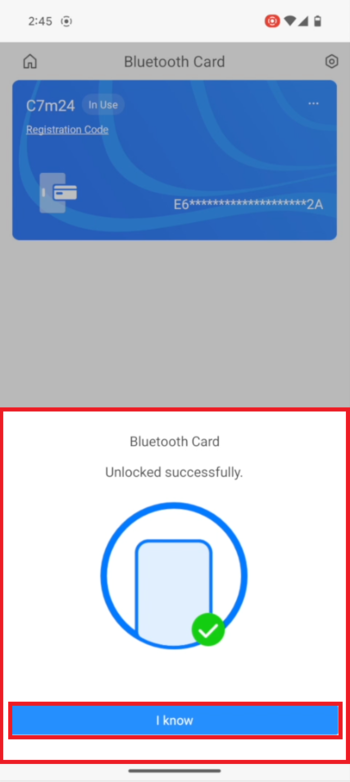

21. Now when you want to unlock the door, move the mobile device within range and shake it to unlock the door.
You will see a message at the bottom indicating when the door has been successfully unlocked.
Tap on I know to dismiss this message


22. If you want, you can also rename the card.

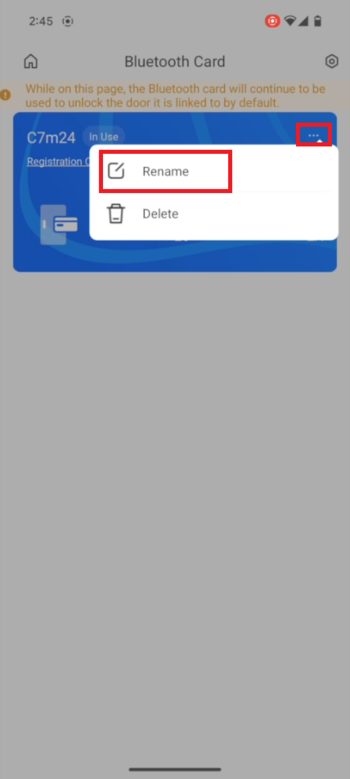

To do so, first tap on the ... at the top right of the card.
Then tap on Rename

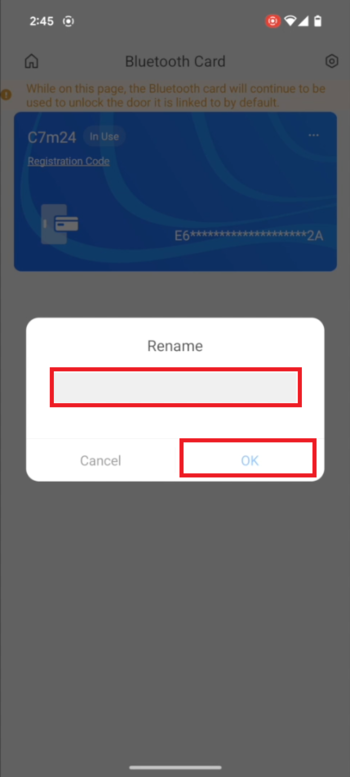

23. Enter the name you want to change the card's name to in the field below Rename.
Then tap on OK

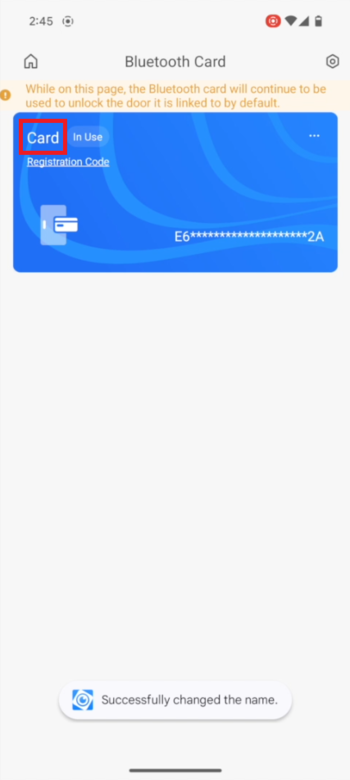

24. The new name you entered will appear on the card
