How to wire an Exit Button or Sensor

Description

This wiring diagram is to describe where to wire door exit button/ Sensor to Dahua Access controller.

Prerequisites

1. Door Exit button/ sensor

2. DHI-ASC1204B

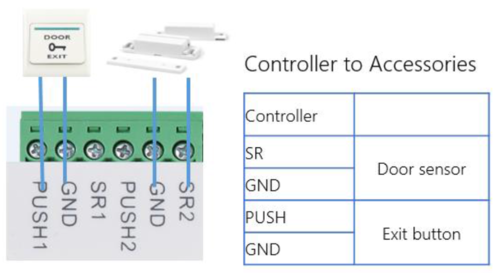

Wiring Diagram
