How to wire Magnetic lock to a Dahua Recorder
Description
This article will show you how to wire a magnetic door lock to Dahua Recorder. With this setup, you can use trigger the alarm output via Motion Event, IVS, or alarm input.
Prerequisites
For this example, we will show you using:
1. Dahua NVR X72A2A.
2. Magnetic Door Lock.
3. Power Adapter 12v DC 2 amps.
Video Instruction

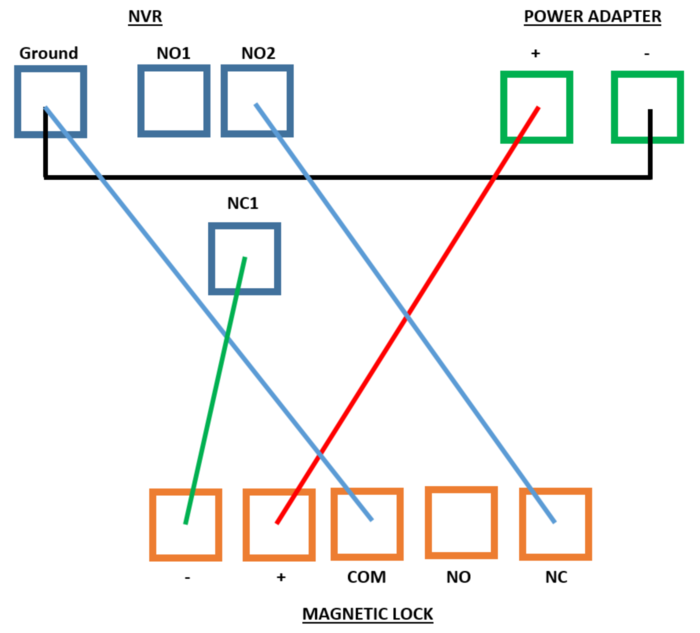

Wiring Diagram
