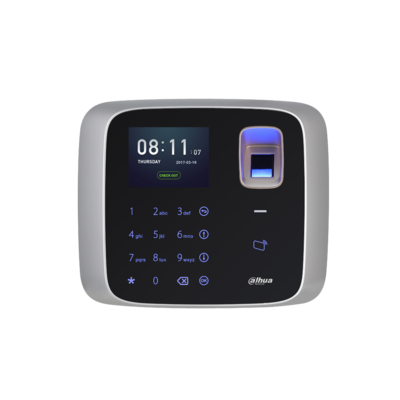

DHI-ASA2212A

float

float

float


Note About Product

  • This device can be added to Dahua recorders to view the camera feed only at this time.
  • This device does not have a substream
  • Current ONVIF credentials are unknown
  • Current ONVIF version is unknown

Features

  • Simple access control or external bell
  • Fingerprint, card or password verification methods.
  • Support IC (Mifare 1)13.56MHZ card
  • Add user in batch
  • Camera (build in) support to capture the real time photo
  • Break-Out/Break-In management
  • USB flash upgrades firmware
  • Support to configure timetable and shift standalone
  • USB flash export attendance report
  • T9 input method
  • All users allowed querying his attendance records
  • Within SD card storage photos

Firmware

Specifications

System

Main Processor

ARM9

Memory

128MB RAM + 32MB Flash

Interface

RJ45

10/100Mpbs

Input

Exit button x 1

Output

Relay x 1 (for Lock /External Bell)

USB

host

Camera

1.3MP (build in)

Card Read

Read Format

IC (Mifare)

Read Range

3-8cm (max.)

Fingerprint Read

Response Time

≤0.5s

FAR

≤0.00004%

FRR

≤0.15%

Capacity

Fingerprint

3,000

User

1,000

Record

150,000

Function

Attendance Mode

Fixed / Flexible

Relay Mode

Simple Access Control / External Bell

User Level

User / Admin

State key Switch

Check in /Check out/Break in/Break out/OT-in/OT-out

General

Voice Prompt

Yes

Power Supply

9-15DC/200mA

Working Environment

-5°C-+55°C

Working Humidity

5% ~ 95%

Dimension(W×D×H)

192mm*160mm *32mm

Weight

0.35Kg

Certificates

CE

Yes

FCC

Yes

Platform

Smartpss

ver2.02 (Coming soon)
