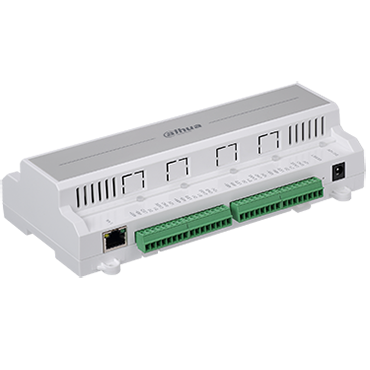

ASC1204B


float

float

Notice

Default IP address for this device is 192.168.0.2

User name: admin

Password: 123456

Features

  • Wiegand or RS485 Interface to Readers (2/4 door)
  • TCP/IP or RS485 Interface to PC
  • Supports 100,000 Valid Cards and 150,000 Events
  • Supports Card, Password, Fingerprint and a Combination of Credentials
  • Door Time-out, Intrusion, Duress and Tamper Alarms
  • Anti-passback, Multi-door Interlock and Multi-card Open Options
  • Supports 128 Efficient Time and Holiday Schedules
  • Surface-mounted Installation

Firmware Download

Click here to download

Wiring Diagrams

ASC1204B Wire Graphic.jpg

RS485

ASC1204B Wire Graphic RS485.jpg

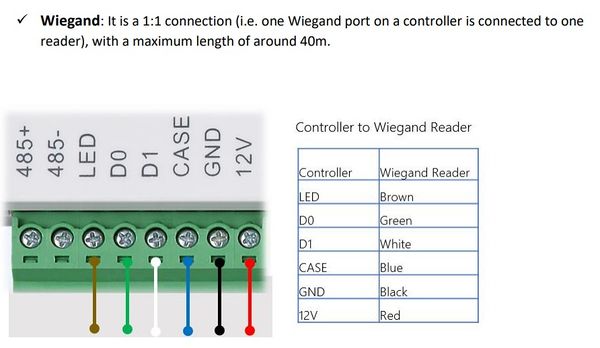

Wiegand

ASC1204B Wire Graphic Wiegand.jpg

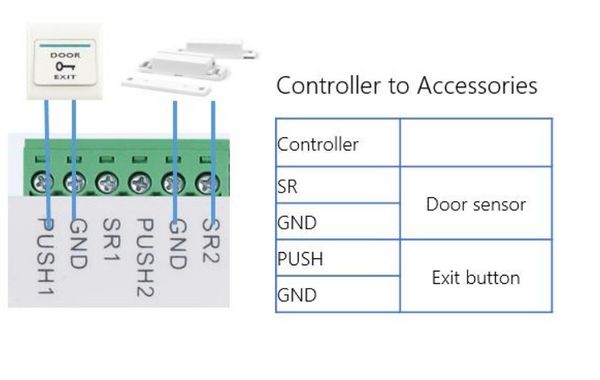

Accessory

ASC1204B Wire Graphic Accessories1.jpg

Electric Bolt

ASC1204B Wire Graphic ElectricBolt.jpg

Magnetic Lock

ASC1204B Wire Graphic MagneticLock.jpg

Reset to Defaults

ASC1204B Reset.jpg

Specifications

System
Main Processor 32-bit
Memory 16 MB (32 MB external)
Input/Output Ports
Inputs Nine (9) Total Inputs:
  Four (4) Door Sensors
  Four (4) Exit Buttons
  One (1) Alarm
Outputs Five (5) Total Relays:
  Four (4) Door Locks
  One (1) Alarm
Readers Four (4) Readers
Capacity
Card Holders 100,000
Events 150,000
Functions
User Management General, VIP, Guest, Patrol, Black List, Duress
Alarm Function Door time-out Alarm
  Intrusion Alarm
  Duress Alarm
  Tamper Alarm
Schedule Settings Schedule: 128 Groups
  Period: 128 Groups
  Holiday: 128 Groups
Interface
Reader Compatibility Wiegand
  RS485
PC Compatibility RJ45 (10/100 Mbps)
  RS485
Certifications
Safety EN 60950:2006+A2:2013
  Conforms to UL Standards
Electromagnetic Compatibility (EMC) FCC CFR 47 Part 15 subpart B
  EN 55022:2010/AC:2011 (Class B)
  EN 55024:2010, EN 50130-4:2011,
  EN 61000-6-3:2007/A1:2011
  EN 61000-3-2:2006+A1:2009+A2:2009
  EN 61000-3-3:2013,
  IEC 61000-4-2:2008, IEC 61000-4-3:2006+A1:2007
  IEC 61000-4-4:2012, IEC 61000-4-5:2005,
  IEC 61000-4-6:2008, IEC 61000-4-8:2009
  IEC 61000-4-11:2004
Operations
Power Supply 9 to 15 VDC, 500 mA
Operating Temperature -30° C to +60° C (-22° F to +140° F)
RTC Support
Construction
Dimensions 209.0 mm x 116.0 mm x 51.0 mm
  (8.23 in. x 4.57 in. x 2.01 in.)
Net Weight 0.50 kg (1.10 lb)
