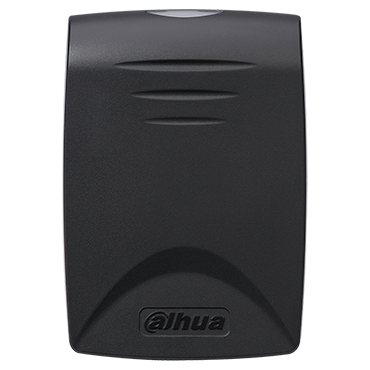

ASR1100B


float

Features

  • Wiegand Protocol
  • Default IC (MIFARE) Card
  • Waterproof Design
  • Built-in Relay to Lock Door
  • Watch Dog Function for Tamper Detection
  • Audible and Visual Indicators
  • Surface-mount Installation

Firmware Download

Click here to download

Specifications

System
Main Processor 8-bit
LCD Display Blue Backlight
Audible Indicator Buzzer
Reader
Format 13.56 MHz MIFARE
Distance 6 cm to 8 cm (2.36 in. to 3.15 in.), maximum
Response Time < 0.1 s
Interface
To Controller RS485
Certifications
Safety EN 60950-1:2006+A11:2009+A1:2010+A12:2001+A2:2013
  Conforms to UL Standards
Electromagnetic Compatibility (EMC) FCC CFR 47 Part 15 subpart B
  EN 55032:2015
  EN 55024:2010+A1:2015
  EN 50130-4:2011+A1:2014
  EN 6100-3-2:2014, EN 6100-3-3:2013
Electrical/Environmental
Power Supply 9 VDC to 15 VDC, 100 mA
Operating Temperature -30° C to +60° C (-22° F to +140° F)
Construction
Color Black
Dimensions 72.0 mm x 102.0 mm x 18.0 mm
  (2.83 in. x 4.02 in. x 0.71 in.)
Net Weight 0.20 kg (0.44 lb)
Accessory - IC Card
Model Number MF11CS50
Standard MIFARE S50, 13.56 MHz
Compatibility ISO/IEC 14443A
Range Approximately 10 cm (3.94 in.)
Dimensions 86.0 mm x 54.0 mm x 0.80 mm
  (3.39 in. x 2.13 in. x 0.03 in.)
Weight 0.006 kg (0.013 lb)
Manufacturer/Brand Dahua
