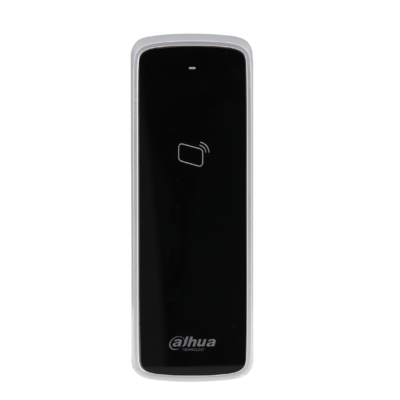

DHI-ASR1200D
Features
- RS485 and Wiegand 34/26 Protocols
- MIFARE 13.56 MHz
- Water-proof Design
- Watch Dog Functionality to Detect Tampering
- IP65 Ingress Protection
- Surface-or Flush-mounted Installation
Firmware Download
Specifications
| System | |
| Main Processor | 8-bit |
| Visual Indicator | LED |
| Audible Indicator | Buzzer |
| Reader | |
| Format | 13.56 MHz MIFARE |
| Range | 6 cm to 8 cm (2.36 in. to 3.15 in.), maximum |
| Response Time | < 0.1 s |
| Interface | |
| Controller Compatibility | RS485 |
| Wiegand 34/26 (default: Wiegand 34) | |
| Certifications | |
| Safety | EN 60950:2006+A2:2013 |
| Conforms to UL Standards | |
| Electromagnetic Compatibility (EMC) | FCC CFR 47 Part 15 subpart B |
| EN 55032:2015 | |
| EN 55024:2010+A1:2015 | |
| EN 50130-4:2011+A1:2014 | |
| EN 6100-3-2:2014 | |
| EN 6100-3-3:2013 | |
| Electrical/Environmental | |
| Power Supply | 5 VDC to 16 VDC, 100 mA, 300 mA, 800 mA |
| Operating Temperature | -30° C to +60° C (-22° F to +140° F), ≤ 95% RH |
| Ingress Protection | IP65 |
| Construction | |
| Color | Black |
| Dimensions | 135.0 mm x 47.50 mm x 16.0 mm |
| (5.31 in. x 1.87 in. x 0.63 in.) | |
| Net Weight | 0.18 kg (0.404 lb) |
| Accessory - IC Card | |
| Model Number | MF11CS50 |
| Standard | MIFARE S50, 13.56 MHz |
| Compatibility | ISO/IEC 14443A |
| Range | Approximately 10 cm (3.94 in.) |
| Dimensions | 86.0 mm x 54.0 mm x 0.80 mm |
| (3.39 in. x 2.13 in. x 0.03 in.) | |
| Weight | 0.006 kg (0.013 lb) |
| Manufacturer/Brand | Dahua |
