Accessories/Mounts/PFB302S

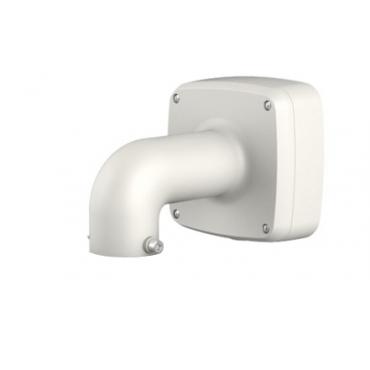

PFB302S



float

Features

  • Material: Aluminum
  • Dimension (W x H x D): 134.0 mm x 134.0 mm x 187.50 mm (5.28 in. x 5.28 in. x 7.38 in.)
  • Pipe Thread: G1 1/2-in.; M20 (G1/2-in.)
  • Operating Temperature: -40º C to 60º C (-40° F to 140° F)
  • Humidity: 0 to 90% RH
  • Load Bearing 3.0 kg (6.61 lb)
  • Weight 0.70 kg (1.54 lb)

Material: Aluminum

  • IP66 Wall Mount Bracket
  • Neat & Integrated design
  • Junction box function

Compatible Body Type

  • HDBW3
  • HDBW2
  • EB1
  • HDBW4
  • SD29
  • SD32
  • SD42

Compatible IP Cameras

  • X

Compatible HD-CVI Cameras

  • X

Specifications

Model PFB302S
General
Material Aluminum
Dimension (W x H x D) 134mm x 134mm x 187.5mm
Pipe Thread G1 1/2” , M20(G1/2”)
Operating Temperature -40ºC ~60ºC
Humidity 0~90% RH
Load Bearing 3.0Kg
Weight 0.70Kg
Applicable Model Please see “Accessory Selection”
