Accessories/Other/HAP200

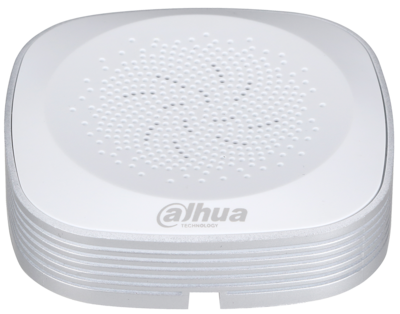

HAP200



Features

  • Omni-directional, High-fidelity Microphone
  • ALC Processing Circuit
  • Includes Basic Noise Reduction Technology
  • Supports Cascading

Specifications

Scope 10 to 100 m²
Sensitivity –30 dB
Frequency Response 20 Hz to 20 KHz
Directional Characteristics Omni-directional
SNR 80 dB (1 m 40 dB Sound Source SPL)
  50 dB (10 m 45 dB Sound Source SPL)
  1 KHz at 1 Pa
Dynamic Range 104 dB (1 KHz at Maximum dB SPL)
Maximum Sustainable Sound Pressure 120 dB SPL (1 KHz, THD 1%)
Output Impedance 600 Ω (non-equilibrium)
Output Signal Amplitude 2.5 Vpp / –25 dB
Working Voltage 12 VDC (9 VDC to 18 VDC)
Working Current 50 mA
Working Temperature –25° C to +70° C (–13° F to 158° F)
Interface Audio Out: RCA
  Cascade: RCA
  Power In: DC Connector
Color White and Silver
Outer Shell PC and ABS Plastic
Dimensions 79.60 mm x 79.60 mm x 21.50 mm
  (3.13 in. x 3.13 in. x 0.85 in.)
Weight 0.06 kg (0.13 lb)
Certifications CE
  FCC
