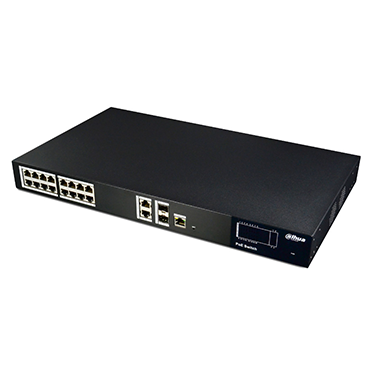

DH-PFS4220-16P-250
Features
- Layer 2 Managed PoE Switch
- Supports the IEEE802.3af and the IEEE802.3at Standards
- Supports Spanning Tree Protocol STP/RSTP
- Conforms with IEEE802.3, IEEE802.3u, IEEE802.3ab/z and IEEE802.3X Standards
- Supports One-key Recovery of IP Address and User Password
Specifications
| Ethernet Ports | Two (2) 10/100/1000 Base-T |
| Two (2) 1000 Base-X | |
| 16 10/100 Base-T (PoE Power Supply) | |
| PoE Power Consumption | Each Port: ≤ 30 W |
| Total Power Consumption: ≤ 250 W | |
| PoE Protocol | PoE (IEEE802.3af), PoE+ (IEEE802.3at) |
| Switching Capacity | 24.8 Gbps |
| Packet Forwarding Rate | 8.33 Mpps |
| Power Requirements | 100 to 240 VAC |
| Working Temperature | -10° C to 55° C 14° F to 131° F) |
| Application Humidity | 10% to 90% |
| Lightning Protection | Common Mode: 2 KV |
| Differential Mode:1 KV | |
| Dimensions (W x D x H) | 442.0 mm x 263.0 mm x 44.50 mm |
| (17.40 in. x 10.35 in. x 1.75 in.) | |
| Weight | 3.54 kg (7.80 lb) |
| System | Username/Password: admin/(empty) |
| IP Address: 192.168.1.2010/24 | |
| PoE Budget | 250 W |
| MAC Table Size | 16K |
| VLAN | Port-based VLAN, 802.1Q Standard VLAN |
| Spanning Tree | STP, RTSP |
| Port Aggregation | Link Aggregation |
| Port Mirroring | Many-to-One Port Mirroring |
| Flow Control | Half-duplex based on back pressure type control |
| Multicast | IGMP Snooping |
| Security Features | Hardware Supports IP+MAC Binding (based on port) IEEE802.1x Port Authentication Configuration File, Upload and Download |
| Network Management | Web (HTTP and HTTPS) |
| System Maintenance | Updated Packet Upload System Logs |
