Accessories/Signal Extender/PFM700

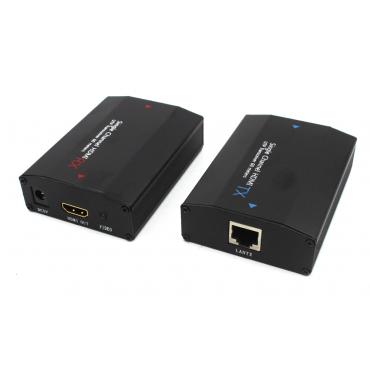

PFM700-E (HDMI Extender)
Features
- N5 VDC Input Power
- Real-time Transmission
- HDMI Video Signal with No Delay or Interference.
- Long HDMI Transmission Distance up to 60 m (197 ft)
- Transmits One-channel Over a UTP (CAT-5E and CAT-6) Cable
- Excellent Power Surge Protection
- Easy Installation, True Plug-and-Play Configuration
Specifications
| Model | PFM700 | ||
| Properties | |||
| Transmission Signal | 1channel HDMI | ||
| Transmission Distance | 60M(max) | ||
| Video Transmission Properties | |||
| Video Signal Input Interface | HDMI interface | ||
| Video Input Interface | HDMI interface | ||
| Twisted-pair Video Transmission Port | RJ45 port | ||
| Input Voltage | DC5V | ||
| Power | TX<3W, RX<3W|- | HDCP Version | Support HDCP1.2 |
| HDMI Version | Support 1.3 and lower version | ||
| Resolution Output Signal | |||
| Resolution | 1080P/1080I/720P/576P/576I/480P/480I | ||
| Output Voltage | 0.5~1.5Vp-p | ||
| Protection | |||
| ESD | 1a contact discharge electricity level 3 | ||
| 1b air discharge electricity level 3 | |||
| Per: IEC61000-4-2 1995(GB/T 17626.5) | |||
| Anti-thunder | 1KV | ||
| Per: IEC61000-4-5 1995(GB/T 17626.5) | |||
| Stability | |||
| MTBF | >5000H | ||
| Physical Properties | |||
| Dimension(L*W*H) | Transmitter: 88mm×64mm×25mm(port length included) Receiver: 88mm×64mm×25 mm | ||
| Shell | Aluminum | ||
| Color | Black | ||
| N.W. | Transmitter: 97g Receiver: 91g | ||
| Environmental | |||
| Working Temperature | 0-55℃ | ||
| Storage Temperature | -20~80℃ | ||
| Humidity | 0~95%(non-condensing) | ||
