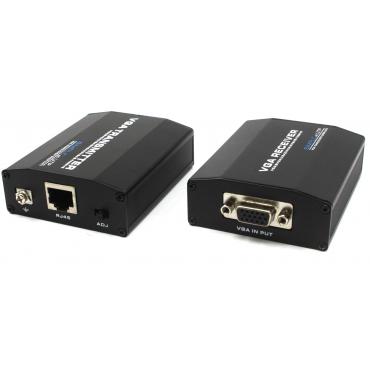

PFM710 (VGA Extender)
Features
- No External Power Supply Required
- Real-time Video Transmission without Compression
- No Delay and Strong Anti-interference Protection
- Long VGA Transmission Distance up to 75 m (246 ft)
- Transmits One-channel Over a UTP (CAT-5E and CAT-6) Cable
- Excellent Power Surge Protection
- Easy Installation, True Plug-and-Play Configuration
Specifications
| Model | PFM710 | ||
| Properties | |||
| Transmission Signal | 1 channel | ||
| Transmission Distance | 75M(max) | ||
| Video Transmission Properties | |||
| Video Signal Input Interface | Female 15, VGA port | ||
| Video Input Interface | Female 15, VGA port | ||
| Twisted-pair Video Transmission Port | RJ45 port | ||
| Video Signal Processing Bandwidth | <120MHz(-3db)|- | Synchronous Signal Bandwidth | 1k-200kHz |
| Adjustment | |||
| Transmitter | 2 modes | ||
| Receiver | 3 modes | ||
| Protection | |||
| ESD | 1a contact discharge electricity level 3 | ||
| 1b air discharge electricity level 3 | |||
| Per: IEC61000-4-2 1995(GB/T 17626.5) | |||
| Anti-thunder | 1KV | ||
| Per: IEC61000-4-5 1995(GB/T 17626.5) | |||
| Stability | |||
| MTBF | >5000H | ||
| Physical Properties | |||
| Dimension(L*W*H) | Transmitter: 85mm×64mm×28 mm （port length included） Receiver: 85mm×64mm×28 mm | ||
| Shell | Aluminum | ||
| Color | Black | ||
| N.W. | Transmitter: 111g Receiver: 110g | ||
| Environmental | |||
| Working Temperature | 0-55℃ | ||
| Storage Temperature | -20~80℃ | ||
| Humidity | 0~95%(non-condensing) | ||
